ELECTRICAL SYSTEM INSTALLATION
&RPPXQLFDWLRQ&RQQHFWLRQ3RZHU&DEOH6SHFLILFDWLRQVIURP2XWGRRU
Unit to Indoor Unit

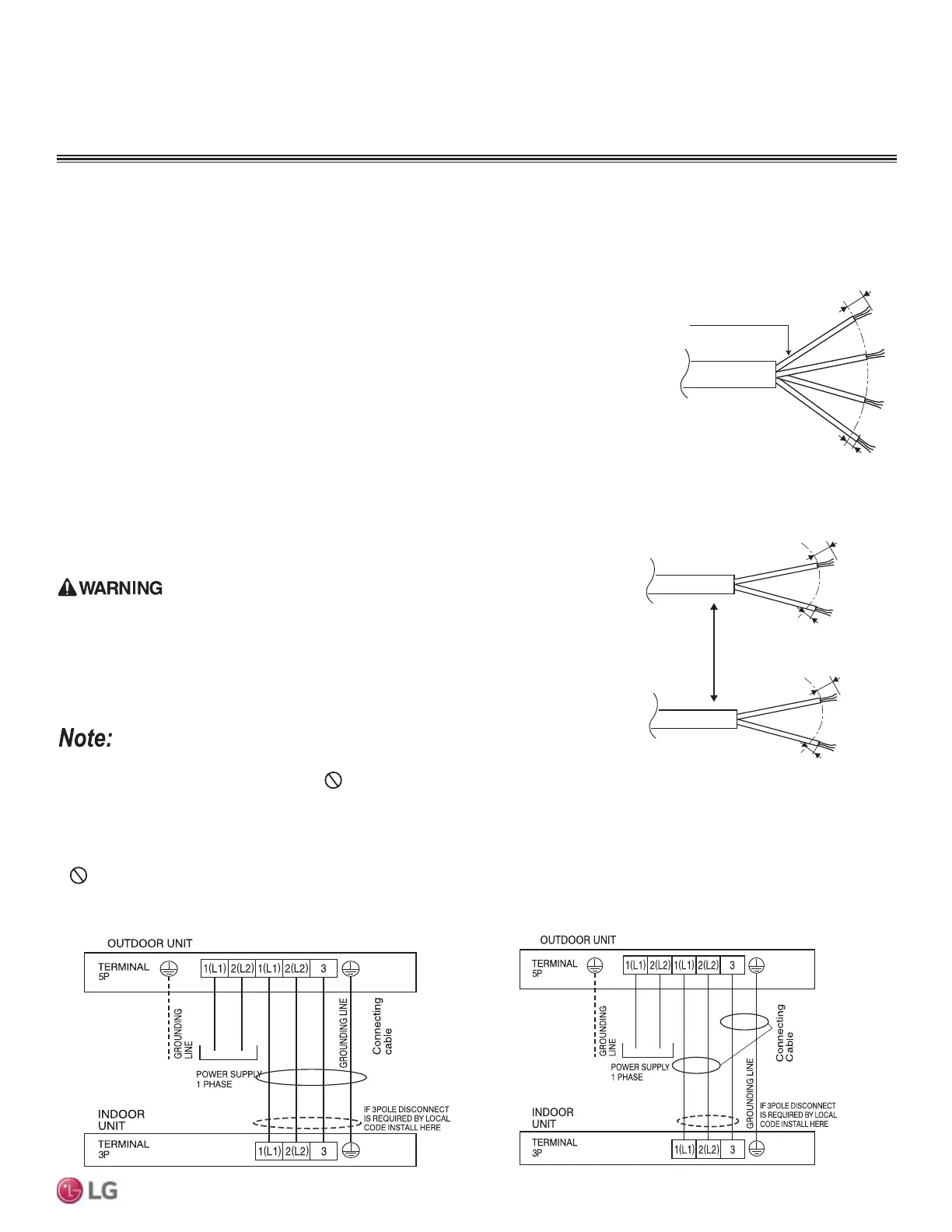

Figure 73: Typical Single Zone Outdoor Unit to Indoor Unit Wiring and
Communications Cable Diagram For Wiring Lengths Up to 130 Feet.
• Always verify the communication cable is connected to a commu-
nications terminal on the Single Zone unit. Never apply line
voltage power to the communication cable connection. If contact is made, the PCBs will be damaged.
• The shield of the communications cable connecting the outdoor unit to the indoor unit must be grounded only to the outdoor unit frame.
• Tie the shield of each cable segment together using a wire nut at the indoor unit. Maintain polarity throughout the communication network.
• Position the incoming power to the outdoor unit away from the power / communications cables from the outdoor unit to the indoor unit.
•
Never use a common multiple-core communications cable.
208/230 VAC
&RQQHFWLRQVDQG6SHFL¿FDWLRQV
Communication / Connection
(Power), Ground Cable
From Outdoor Unit
To Indoor Unit
13/16"
GN/YL
GN/YL = (Ground, Yellow)
7/16" ± 1/8"
• For communication / connection (power) wires between the Single
Zone outdoor unit and the indoor unit for lengths up to 130 feet,
use a minimum 18 gauge, four (4) conductor, stranded, shielded
or unshielded wire. If shielded, the wire must be grounded to the
chassis at the outdoor unit only.
• When the communication / connection (power) wires between the
indoor unit and outdoor unit is GREATER THAN 130 feet, use:
• A two (2) conductor wire for power.
• A two (2) conductor wire for communication / ground.
• Separate the power AT LEAST two (2) inches away from the
communication / ground wire.
• All wiring is still minimum 18 gauge, stranded, shielded, or
unshielded as cited above.
• Insulation material as required by local code.
• Firmly attach the cable; provide slack but secure in a way to pre-
vent external forces from being imparted on the terminal block.
• Wiring must be completed without splices.
All power wiring and communication cable installation must be per-
formed by trained service providers working in accordance with local,
state, and National Electrical Code (NEC) / UL / ETL federal regulations
related to electrical equipment and wiring, and following the manufac-
turer product diagrams, requirements, and instructions in this manual.
Failure to do so will lead to electric shock which can cause physical
injury or death.
Figure 74: Single Zone Outdoor Unit to Indoor Unit Wiring and Com-
munications Cable Diagram For Wiring Lengths GREATER THAN 130
Feet.
Two-Conductor
Power Cable
GN/YL
GN/YL = (Ground, Yellow)
Two-Conductor
Communication /
Ground Cable
Separate At Least
Two (2) Inches
13/16"
7/16" ± 1/8"
1(L1)
2(L2)
13/16"
7/16" ± 1/8"
3
Figure 75: Typical LS090-120HSV5 Power / Communication System
Diagram For Wiring Lengths Up to 130 Feet.
Figure 76: LS090-120HSV5 Power / Communication System Diagram
For Wiring Lengths GREATER THAN 130 Feet.
208/230 VAC
To Next Page
