Electrical Wiring
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL WIRING
Indoor Unit Electrical Connections

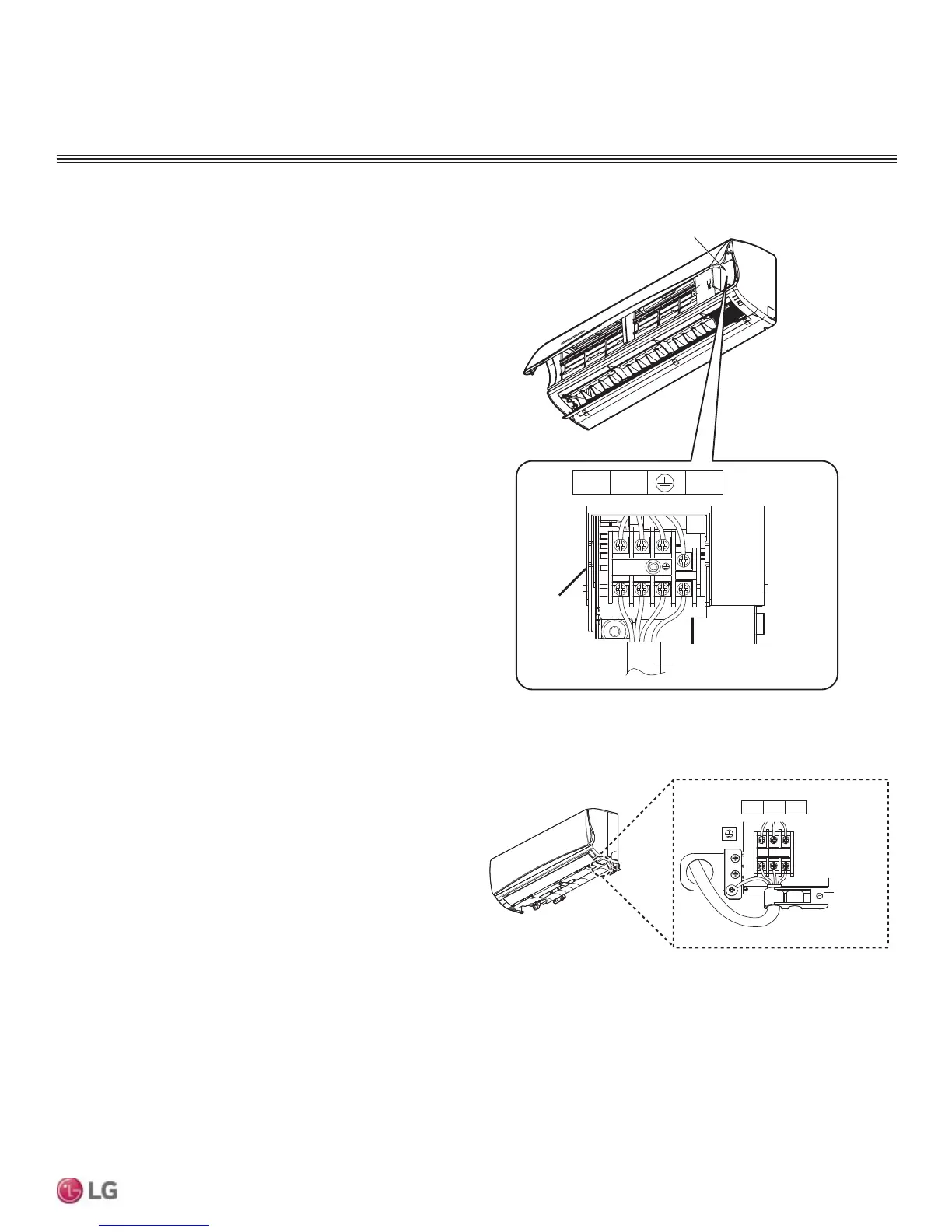

Figure 95: Mega 090HEV, 090HEV1, 120HEV, 180HEV, 240HEV
Indoor Units - Terminal Block Connections
Terminal Block Connection for Mega
090HEV, 090HEV1, 120HEV, 180HEV,
240HEV
See Figure 95 for specific terminal block wiring for the following
Single Zone models:
LSN090HEV
LSN090HEV1
LSN120HEV
LSN180HEV
LSN240HEV
Control Cover
1(L1) 2(L2) 3
1(L1) 2(L2)
3
Power connecting cable
Terminal
Block
Terminal Block Connection for Mega
120HEV1
See Figure 96 for specific terminal block wiring for the following
Single Zone models:
LSN120HEV1
Cord clamp
1(L1) 2(L2) 3
1(L1) 2(L2) 3
Figure 96: Mega 120HEV1 Indoor Units - Terminal Block
Connections
To Next Page
