General Installation Guidelines
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
GENERAL INSTALLATION GUIDELINES
• Go to the Refrigerant Piping Connections section of this manual for information on indoor unit piping connection installation. See also the
Refrigerant Piping Connections section for drain piping installation.
• Go to the Electrical Installation section of this manual for information on electrical wiring to the indoor unit.
• After all Refrigerant Piping and Electrical Connection procedures are complete, snap the L-bracket closed, and secure the indoor unit to the
installation plate as detailed in Steps 5 and 6 in “Mounting the Indoor Unit to the Installation Plate”.
1. To prepare the indoor unit for piping and electrical installation,
disengage bottom on indoor unit from installation plate by
reversing Steps 6, 5, and 4 from the previous procedure, if those
procedures have been performed.
2. Unsnap the piping / drain hose holder (L-bracket) out from the
indoor unit chassis. Prop it open between the indoor unit chassis
and installation plate to separate the bottom of the indoor unit
from the wall. This will allow for more working space.

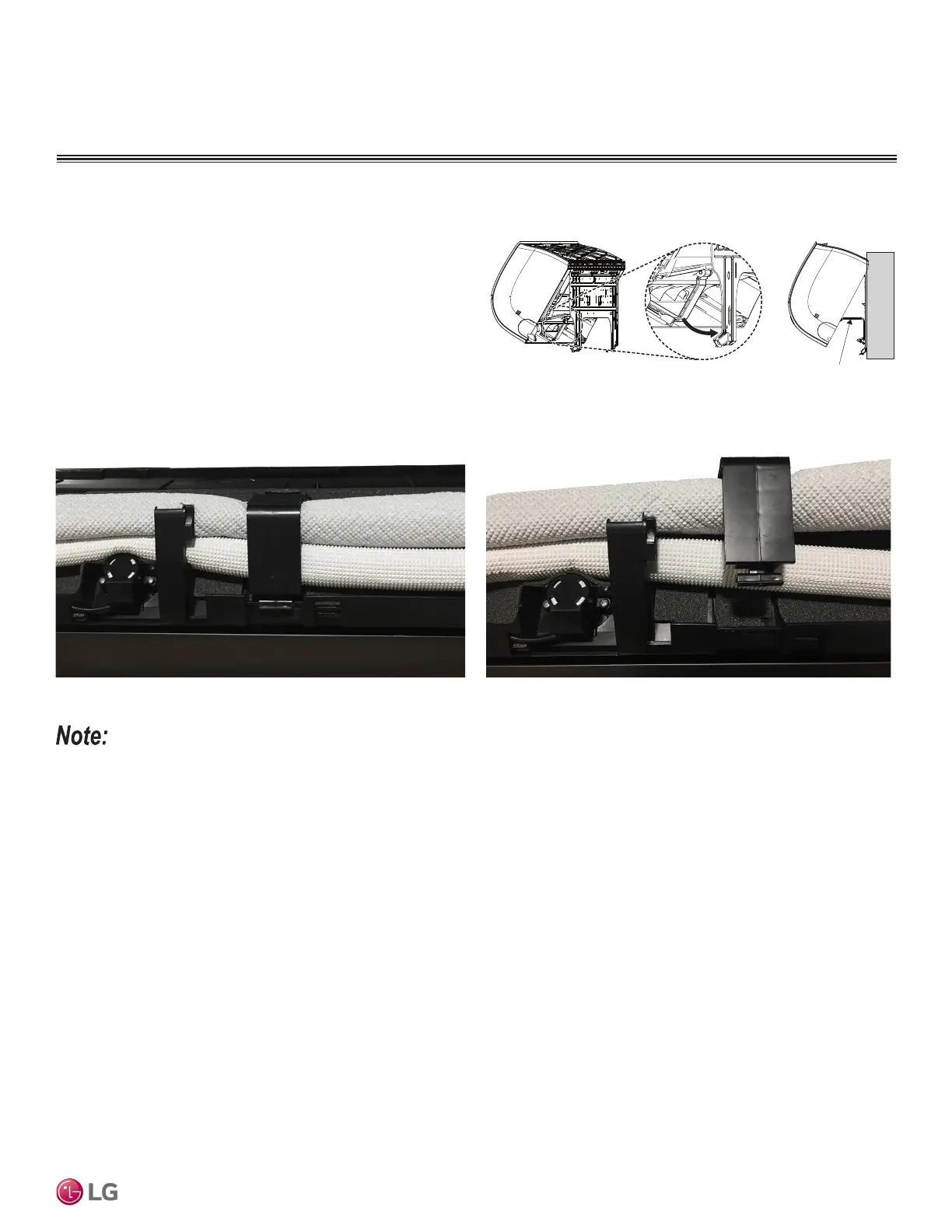

Figure 27: L-bracket Closed (Appearances Will Vary Depending on
Indoor Unit Model).
Figure 28: Mounting the Indoor Unit on Installation Plate.
Piping / Drain Hose Holder
Preparing for Piping / Electrical Connections
Figure 29: L-bracket Open (Appearances Will Vary Depending on Indoor
Unit Model).
Indoor Unit Mounting
