ENGLISH

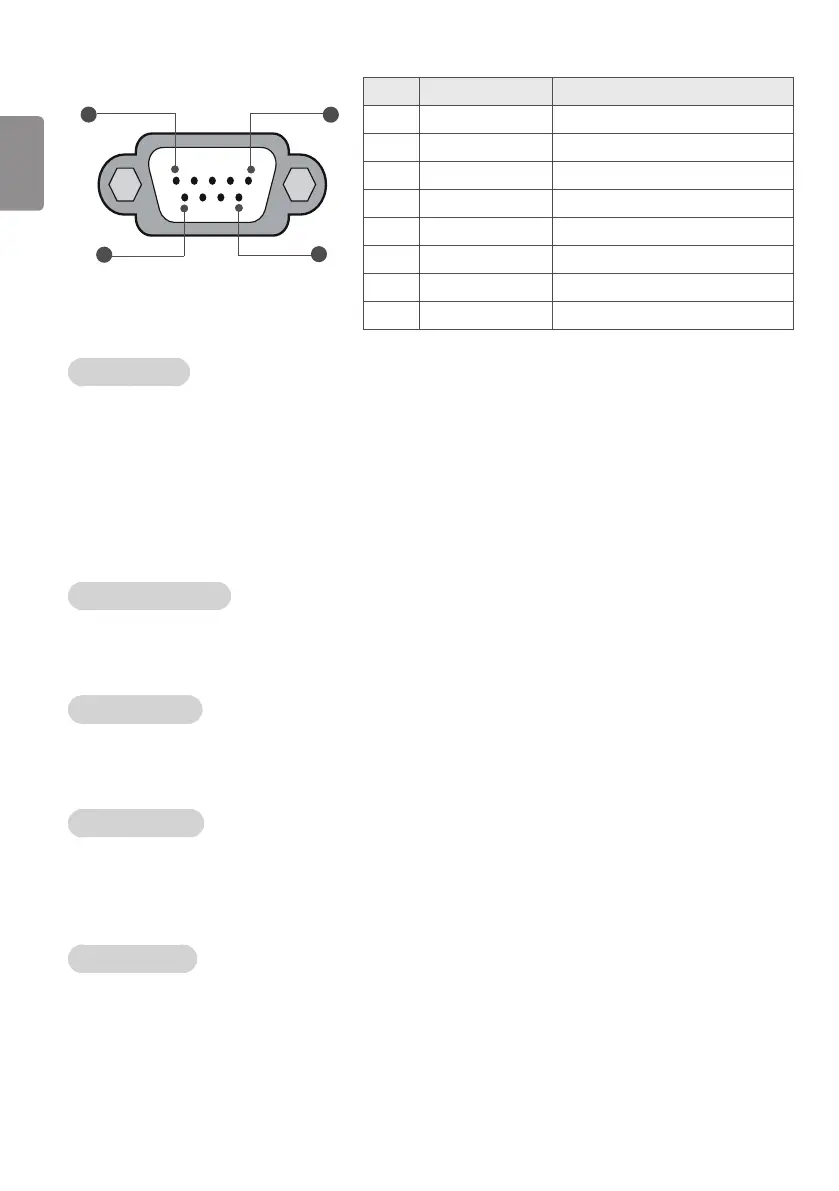

» Type of Connector: D-Sub 9-Pin Male

Male connector on box, viewed towards connector.

No. Signal Signal requirements

1 VCC

2 RX RS232 Standard RS232 specication

3 TX RS232 Standard RS232 specication

4 IR from TV

5 GND Power ground

6, 8 Not connected

7 2 A +5 V DC 10 %, max 100 mV ripple

9 1.5 A +12 V DC 10 %, max 100 mV ripple

One Channel Map

(Depending on model)

• If ‘One Channel Map’ is ‘Enable’, the TV will operate as below.

A. When the TV is auto-scanning, it searches both air and cable channels.

B. User can assign a channel number him/herself by manual scan.

C. In 'Programme Edit’ window, all channels are shown in a single list regardless of input source.

D. Automatically scanned channels may not have the user-desired channel numbers.

• If user change the ‘Enable/Disable’ value, an pop-up window will be displayed to warn that all channel information will be deleted. The Default

value is ‘Enable’.

DTV Programme Update

• It is a mode to set whether to update DTV programme automatically or not.

• When DTV Programme Update is set to ’Auto’, the function to update TV’s programme map according to dtv programme’s stream information.

• DTV Programme Update is set to ‘Manual’, the function to keep TV’s programme map even though DTV programme’s information is changed.

On Timer Operation

• It is a mode to select Timer Power On working one time or repeatedly.

• 'Once': ‘Timer Power On’ in the user menu operates only one time when the Timer Power On menu is set to On.

• ‘Repeat’ : ‘Timer Power On’ operates repeatedly when the Timer Power On menu is set to On.

Radio Name Display

• Instead of “Audio Only”, the name of a radio programme is displayed on the screen when a radio broadcast is playing.

• Set to On (Work) or O (Do Not Work).

• If the setting is “On”, the name of a radio programme is displayed for the radio programme.

• If the setting is “O”, the text “Audio Only” is displayed for the radio programme.

USB Auto Playback

(Depending on model)

• When ‘USB Auto Playback’ is set to ‘Movie’, TV nds and plays the USB’s movie les located at the root(top) directory Movies if USB is plugged in.

• When ‘USB Auto Playback’ is set to ‘Photo’, TV nds and plays the USB’s photo les located at the root(top) directory Photos if USB is plugged in.

• If it reaches the last le, it starts the rst le again
