20

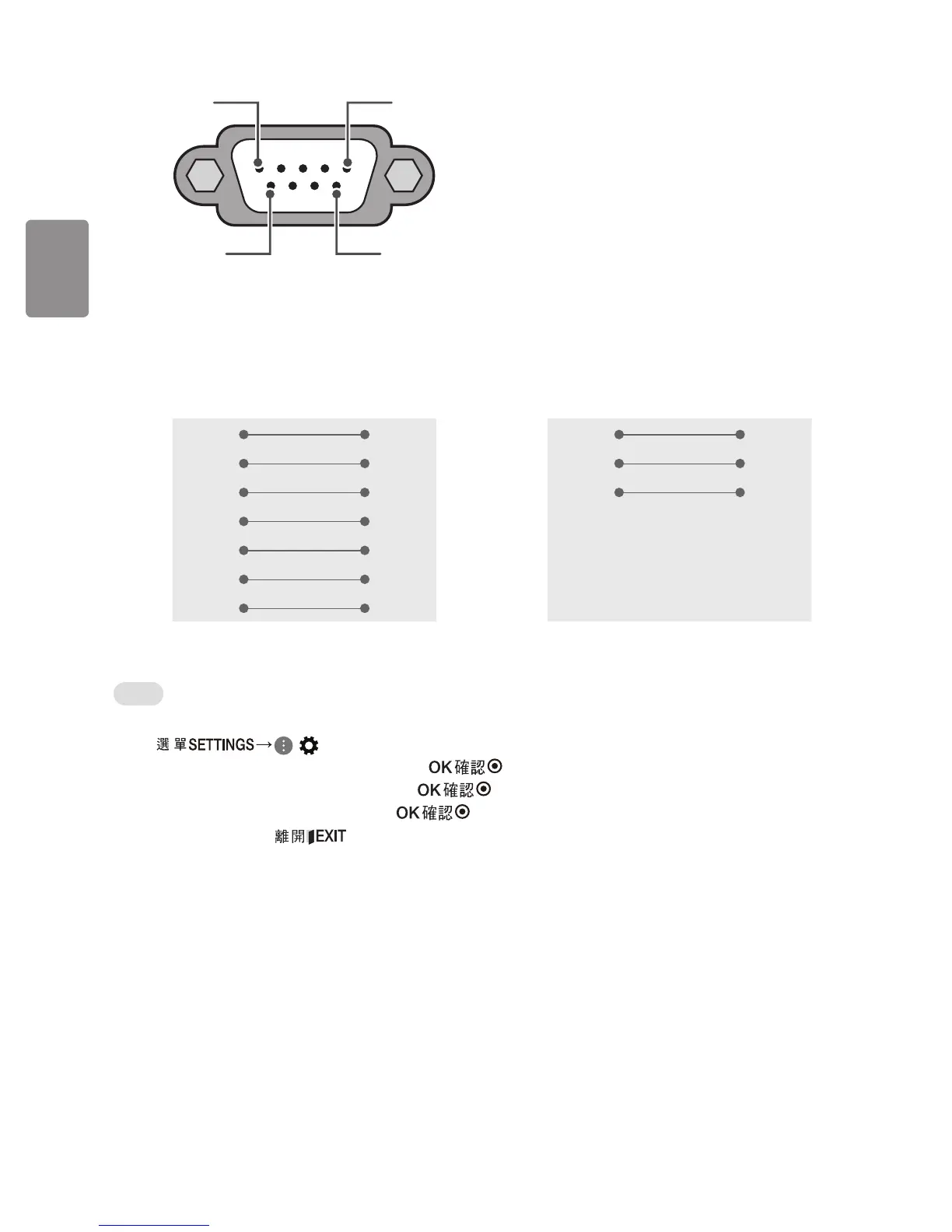

Type of connector : D-Sub 9-Pin male
1
6
5
9
RS-232C (Serial port)
RS-232C Configurations
7-Wire Configurations (Standard RS-232C cable) 3-Wire Configurations (Not standard)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 8 RTS
CTS 8 7 CTS
D-Sub 9 D-Sub 9
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 8 RTS
CTS 8 7 CTS
D-Sub 9 D-Sub 9
Set ID
For Set ID number, see “Real Data Mapping”.
1 Press ( ) to access the main menus.
2 Press the Navigation buttons to scroll to General and press .
3 Press the Navigation buttons to scroll to Set ID and press .
4 Scroll left or right to select a set ID number and press . The adjustment range is 1-99.
5 When you are finished, press .
