Ch5. Removing and replacing a part
■ 1070 FAN Assembly
Remove the following parts in order before replacing this part
1. Battery Pack(1010) 2. Hard Disk Drive(1020) 3. W/L LAN Card(1030) 4. Keyboard(1040)
5. Retainer(1050) 6. Keyboard plate(1060)

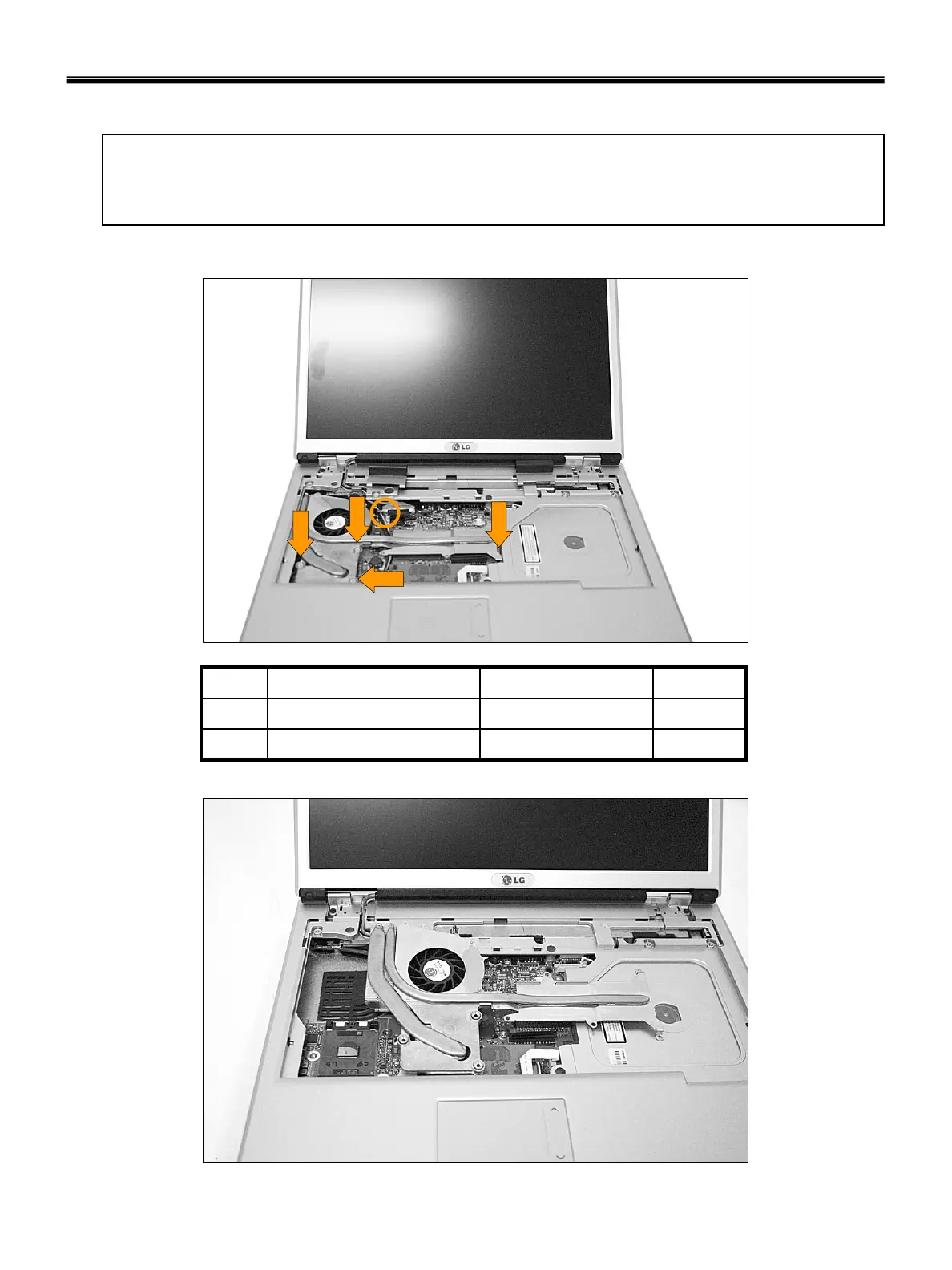

1. Remove 4 screws and remove Fan Module.
1
1
1
2
1M2.0 X L5.01SZZBZ4014A2
3M2.0 X L10.01SZZBZ4020A1
QtySpecificationFRU No.No.
