Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MAX
MUL
TI
F
MULTI
F
Removing the Indoor Unit Bottom Cover — HVT Wall-Mounted Indoor Units
To access the indoor unit piping port connections, terminal block, and to
make the indoor unit installation procedure easier, it is recommended that
the bottom cover be removed first.
1. Fully open the front panel.
2. At the bottom panel of the indoor unit, unsnap the latches that cover the
screws. Number of screws on the panel will differ by indoor unit model.
3. Using a Phillips head screwdriver, remove the screws from the bottom
panel of the indoor unit and set aside for re-installation.
4. Remove the bottom panel, being careful not to scratch the main horizon-
tal vane. Set aside the bottom panel to re-install after all procedures are
complete.

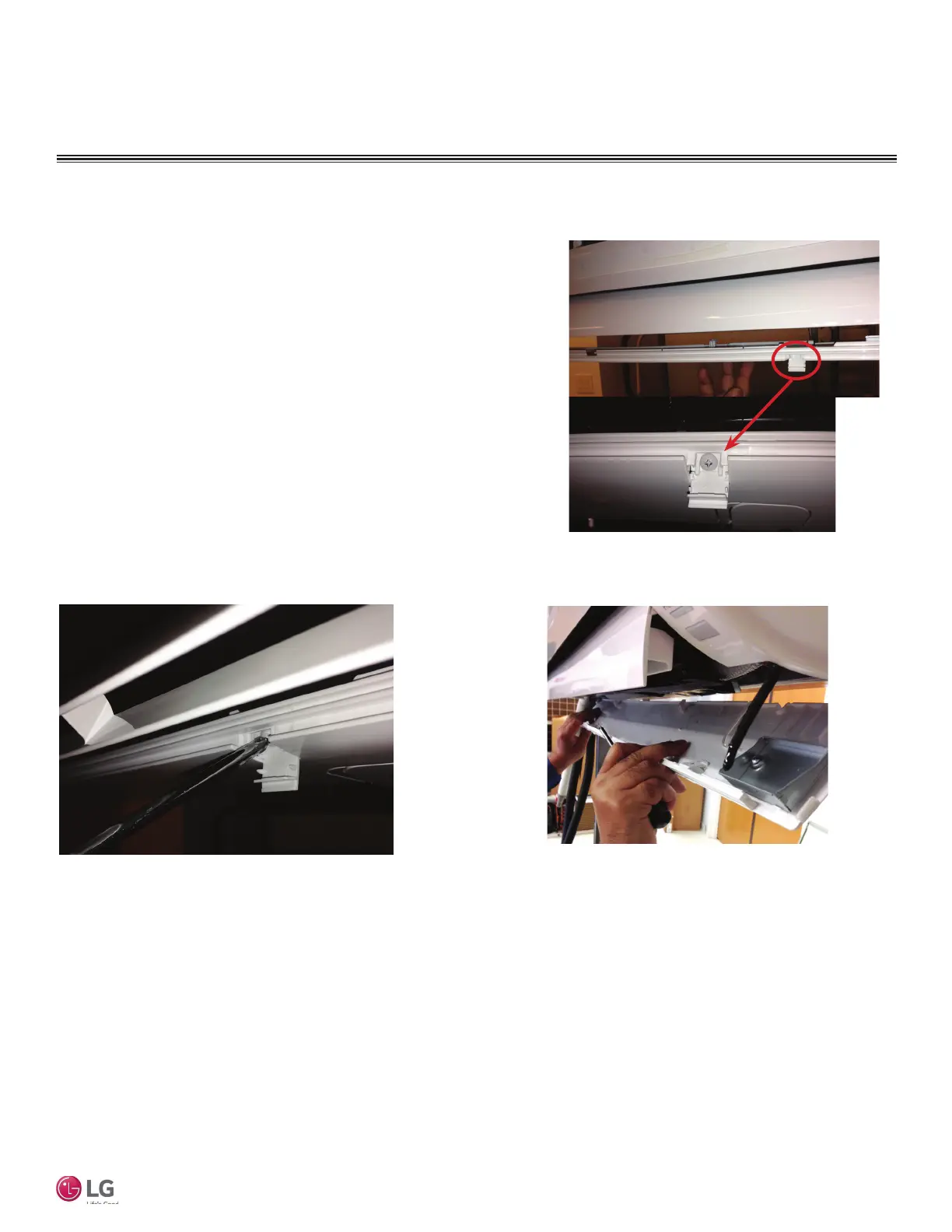

Figure 14: Latch over Screws on Indoor Unit Bottom Panel.
Figure 15: Remove Screws from Bottom Panel. Figure 16: Remove Bottom Panel.
