,QGRRU8QLW(OHFWULFDO&RQQHFWLRQV

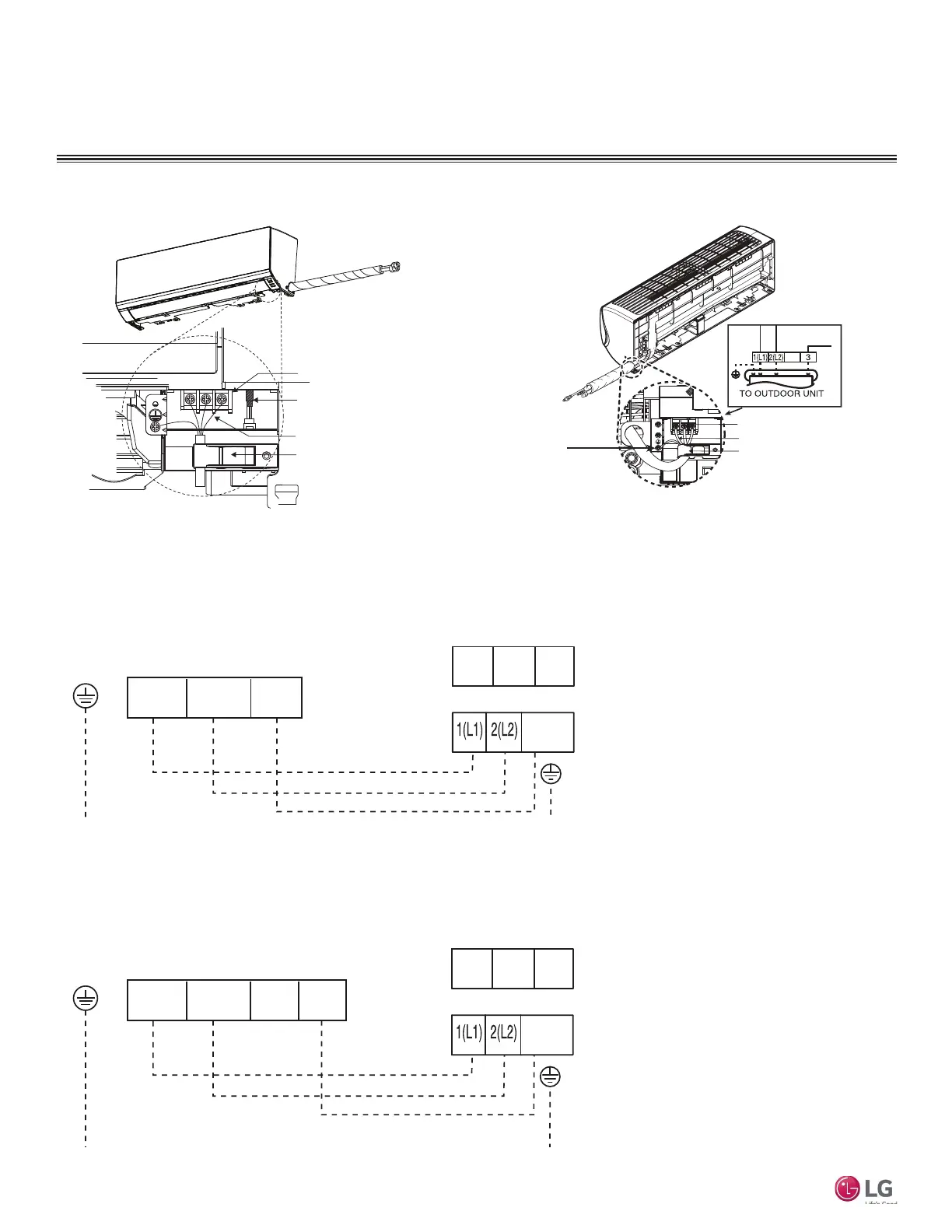

Figure 74: Connecting the Power Wiring / Communication Cable to the
HVT Indoor Unit Terminal Block - Front View.
Indoor Unit Terminal Block
1(L1 ) 2(L2)
GND
GND
GRN / YLW
BR
BL
RD
3
3 or S
SN LBDU:
ODU:
Branch Distribution Unit Terminal Block or
Outdoor Unit Terminal Block
Figure 75: Connecting the Power Wiring / Communication Cable to the
HVT Indoor Unit Terminal Block - Back View.
Indoor Unit Terminal Block
1(L1 ) 2(L2)
GND
GND
GRN / YLW
BR
BL
RD
3
3 or S
SN LBDU:
ODU:
Branch Distribution Unit Terminal Block or
Outdoor Unit Terminal Block
Figure 76: Indoor Unit to Outdoor Unit / Branch Distribution Unit Terminal Connections—LMN079HVT and LMN159HVT.
Terminal Block
Terminal Block
Expanded View
Grounding
Cable
Connecting Cables
Cable Restrainer
Terminal block
Power wiring /
communications cable
Wired Remote Controller
Terminal (Optional)
Cable restraint
Figure 77: Indoor Unit to Outdoor Unit / Branch Distribution Unit Terminal Connections—LMN249HVT.
WIRING
