LG LSN181HSV5 User Manual

30
Multi F Standard Wall-Mounted Indoor Unit
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MAX
MUL
TI
F
MULTI
F
0XOWL)0XOWL)ZLWK/*5('2XWGRRU8QLWWR,QGRRU8QLW3LSLQJ&RQQHFWLRQV

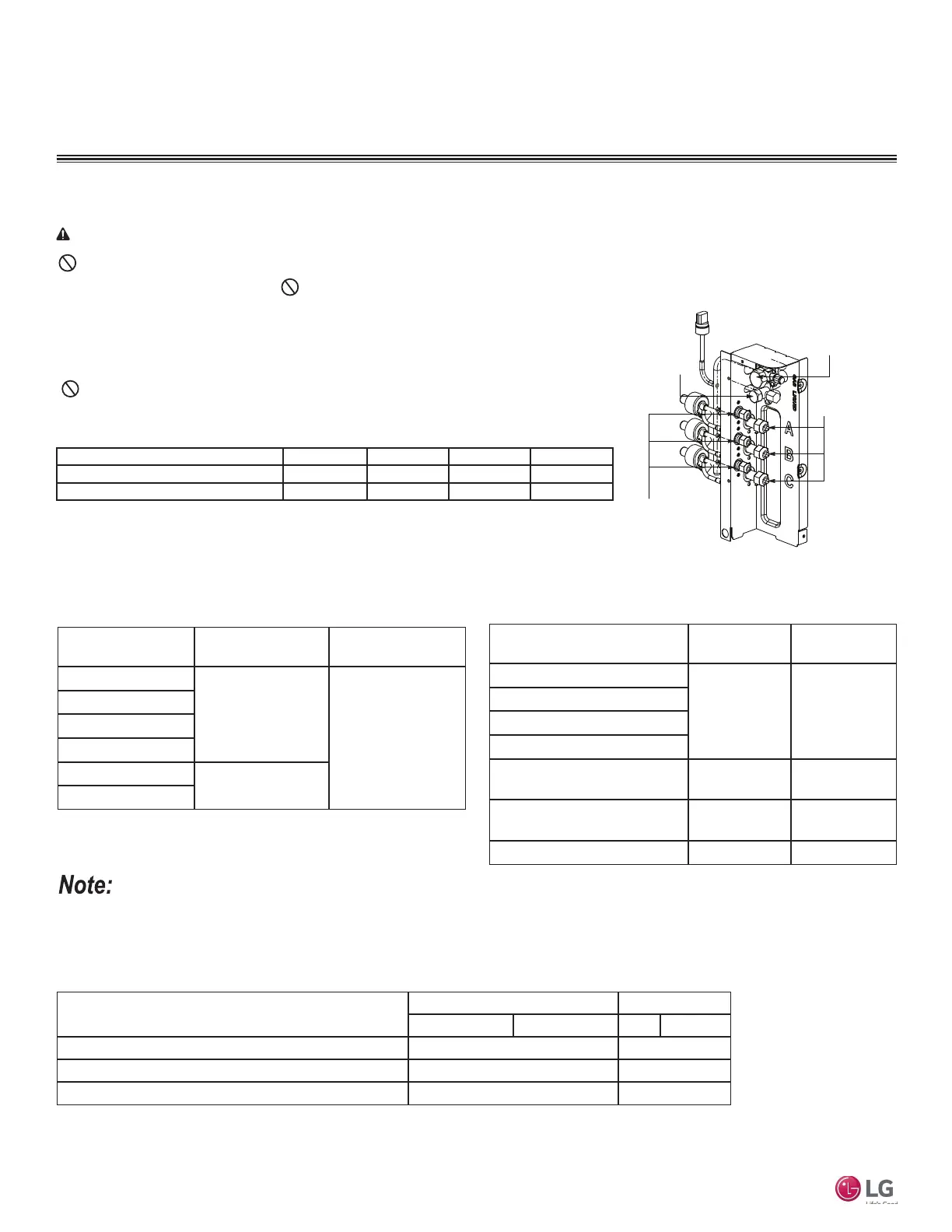

Figure 36: Single Fan Multi F Outdoor Unit Refrig-
erant Pipe Connections.
Correctly route the piping so it does not make contact with mounting bolts. Allow room
IRU¿HOGLQVWDOODWLRQ
Connection sockets (included as a factory-supplied accessory with the indoor units) will need to be used when piping the indoor units to the outdoor
unit. See tables above and below for indoor unit piping connection and connection socket dimensions. See the follow page for the connection socket
installation procedure.
Indoor Unit Capacity
Vapor (in., OD) Liquid (in., OD)
A B A B
18,000 Btu/h Wall-Mounted and Vertical Air Handling Units ĺĺ ĺ
18,000 Btu/h Low Static Duct and Four-Way Cassette Units ĺ N/A
24,000 Btu/h ĺ N/A
Table 8: Indoor Unit Pipe Sizes.
Table 9: Connection Socket Dimensions.
Indoor Unit Capacity
Vapor Line
Piping Size (in., OD)
Liquid Line
Piping Size (in., OD)
7,000 Btu/h
Ø3/8
Ø1/4
9,000 Btu/h
12,000 Btu/h
15,000 Btu/h
18,000 Btu/h
Ø1/2
24,000 Btu/h
Table 10: Indoor Unit Piping Connections.
Indoor Unit Capacity
Vapor Line
Conn. (in., OD)
Liquid Line
Conn. (in., OD)
7,000 Btu/h
Ø3/8 Ø1/4
9,000 Btu/h
12,000 Btu/h
15,000 Btu/h
18,000 Btu/h Wall-Mounted and
Vertical Air Handling Units
Ø5/8 Ø3/8
18,000 Btu/h Low Static Duct
and Four-Way Cassette Units
Ø1/2 Ø1/4
24,000 Btu/h Ø1/2 Ø1/4
2XWGRRU8QLWWR,QGRRU8QLW&RQQHFWLRQV
INSTALLATION
Single Fan Multi F Outdoor Unit
(18~36kBtu/h)
Liquid
Piping
Liquid Piping
Service
Port
Vapor Piping
Service Port
ROOM A
ROOM B
ROOM C
Vapor Piping
NOTE
Avoid Pipe Damage
• When routing field-provided piping, avoid damaging the outdoor unit from exces-
sive vibration.
• Properly insulate the liquid and gas lines separately up to the point of connection at the
unit frame.
• See table below for Multi F / Multi F with LGRED outdoor unit connection types.
Table 11: Single Fan Multi F / Multi F with LGRED Outdoor Unit Piping Connections.
Outdoor Unit Piping Connections 18,000 Btu/h 24,000 Btu/h 30,000 Btu/h 36,000 Btu/h
Liquid Line Connection (in., OD) x Qty. Ø1/4 x 2 Ø1/4 x 3 Ø1/4 x 4 Ø1/4 x 4
Vapor Line Connection (in., OD) x Qty. Ø3/8 x 2 Ø3/8 x 3 Ø3/8 x 4 Ø3/8 x 4
