32
Multi F Standard Wall-Mounted Indoor Unit
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MAX
MUL
TI
F
MULTI
F
Avoid Pipe Damage
• When routing field-provided piping, avoid damaging the outdoor unit from excessive
vibration.
• Properly insulate the liquid and gas lines separately up to the point of connection at
the unit frame.
• See table below for Multi F MAX outdoor unit connection types.
Table 12: Multi F MAX / Multi F MAX with LGRED Outdoor Unit Piping Connections.
Torque
Wrench

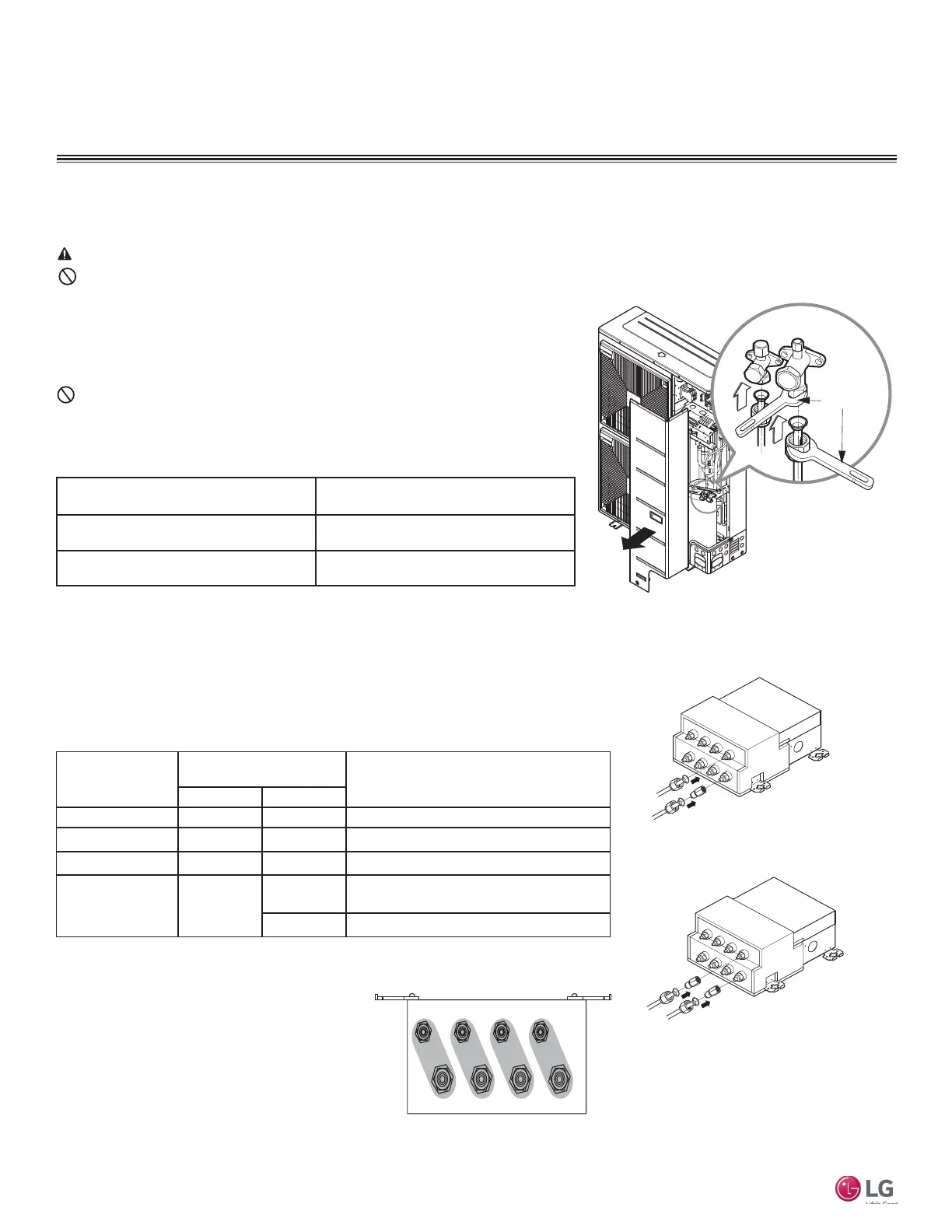

Figure 41: Multi F MAX Outdoor Unit Refrigerant Pipe
Connections.
Correctly route the piping so it does not make contact with mounting bolts. Allow room
IRU¿HOGLQVWDOODWLRQ
Branch Distribution to Indoor Unit Piping Connections
• Install indoor unit liquid and vapor refrigerant pipes (and connection wiring) to the appropri-
ate branch distribution ports.
• Clearly note on the indoor unit’s refrigerant piping (liquid, vapor) which branch distribution
port it is connected to (A, B, C, D).
Table 13: Branch Distribution Unit Piping Connections.
Branch
Distribution Unit
Refrigerant Connections
Pipe Size (in.)
Connectable Indoor Unit Capacity
(Btu/h)
Liquid Vapor
PMBD3620 Ø1/4 x 2 Ø3/8 x 2 7,000, 9,000, 12,000, 15,000, 18,000, 24,000
PMBD3630 Ø1/4 x 3 Ø3/8 x 3 7,000, 9,000, 12,000, 15,000, 18,000, 24,000
PMBD3640 Ø1/4 x 4 Ø3/8 x 4 7,000, 9,000, 12,000, 15,000, 18,000, 24,000
PMBD3641 Ø1/4 x 4
Ø3/8 x 3
7,000, 9,000, 12,000, 15,000, 18,000, 24,000
(A, B, C)
Ø1/2 x 1 24,000 36,000 (D)
Figure 42: Branch Distribution Ports to Indoor
Units -- Side View.
Figure 43: Branch Distribution Piping
Connections.
ABC D
2XWGRRU8QLWWR,QGRRU8QLW&RQQHFWLRQV
INSTALLATION
0XOWL)0$;0XOWL)0$;ZLWK/*5('2XWGRRU8QLW6\VWHP3LSLQJ
Connections
NOTE
Outdoor Unit Piping Connections
36,000 Btu/h, 42,000 Btu/h, 48,000 Btu/h,
54,000 Btu/h, 60,000 Btu/h
Liquid Line Connection (in., OD) x Qty. Ø3/8 x 1
Vapor Line Connection (in., OD) x Qty. Ø3/4 x 1
(7~24 kBtu/h Indoor Units)
(Only for 36 kBtu/h Indoor Units
to Connect to “D ROOM”)
(Branch Distribution Unit: PMBD3640)
A ROOM
B ROOM
C ROOM
D ROOM
A ROOM
B ROOM
C ROOM
D ROOM
(Branch Distribution Unit: PMBD3641)
