LG LTNS16121V /00 - 7-3 RESISTANCE (HEATERS) VALUES CHART

7-3 RESISTANCE (HEATERS) VALUES CHART

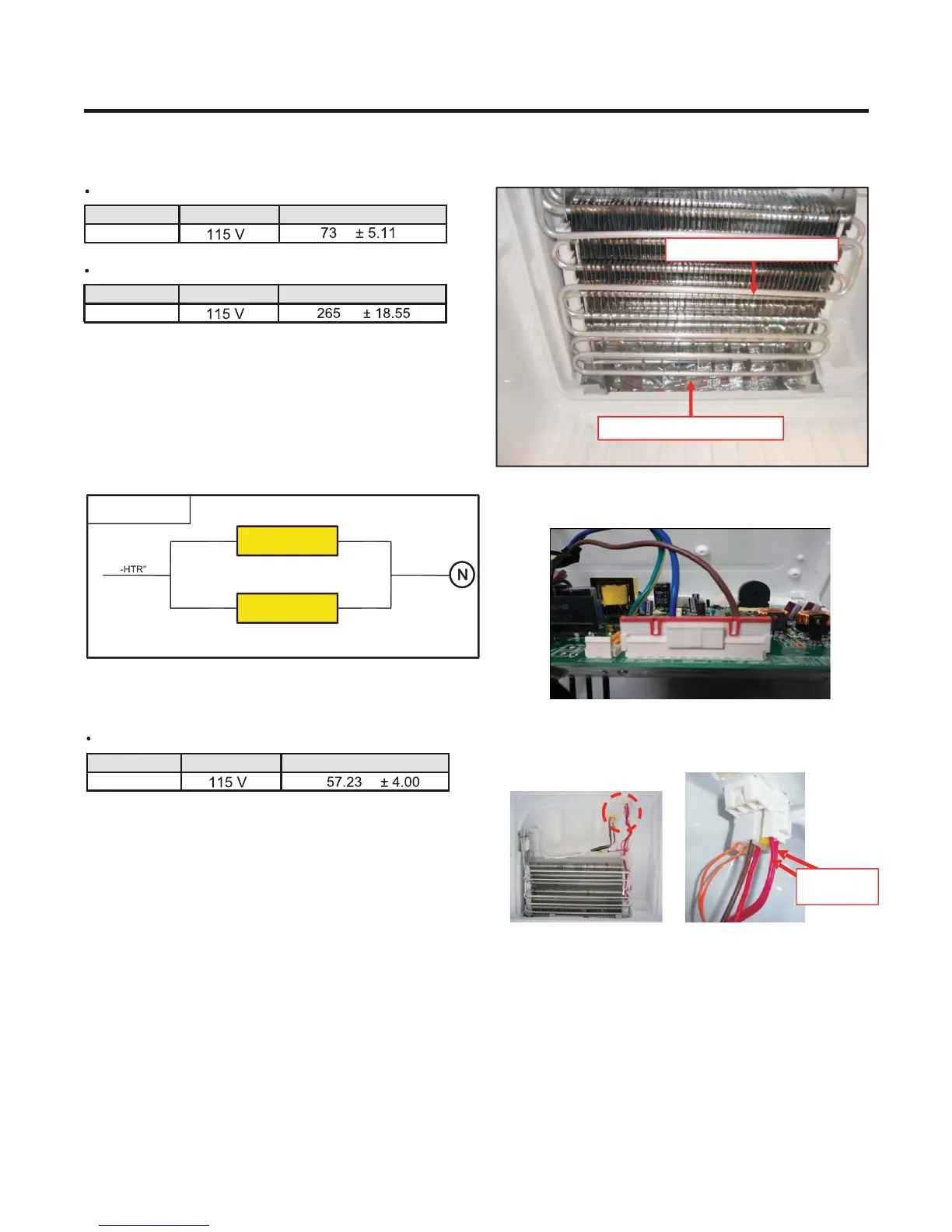

Defrost resistance value.
“DEF
Diagram
Capacity Voltage Resistance Value

16 cu ft

34
Capacity Voltage Resistance Value
16 cu ft
Isolation resistance value.
Defrost resistance
Isolation resistance
Capacity Voltage Resistance Value
16 cu ft

Check resistance between blue and brown connectors for
CON2.
Defrost resistance values.
Check resistance between red connectors.
Defrost
resistance
Isolation
Resistance
Defrost
Resistance
Relay
