ELECTRICAL CONNECTIONSPart 3
ELECTRICAL CONNECTION
The fourth step of your installation should be to prepare the electrical connection as follows:
1. Turn off the circuit breaker or remove fuses to the oven branch circuit.
2. With the oven positioned directly in front of the cabinet opening, connect the flexible conduit to the electrical
junction box as shown below. Position the conduit in such a manner that it will lie on top of the oven in a
natural loop when the oven is installed.
3. If local codes permit connection of the frame grounding conductor to the neutral(white) wire, follow the
instruction of 3-wire circuit connection on page 10.
If used in mobile homes or new construction, or recreational vehicle, or local codes do not permit connection of
the frame grounding conductor to the neutral(white) wire, follow the instruction of 4-wire circuit connection on
page 10.
IMPORTANT NOTE
•
The wall ovens must be hard wired (direct wired) into an approved junction box. A plug and receptacle is not
permitted on these products.
•
DO NOT shorten the flexible conduit. The conduit connector must be securely attached to the junction box and
the flexible conduit must be securely attached to the conduit connector. If the flexible conduit will not fit within
the connector, do not install the oven until a connector of the proper size is obtained.
NOTE TO ELECTRICIAN
The power leads supplied with the appliance are UL, CSA recognized for connection to larger gauge household
wiring. The insulation of these leads is rated at temperatures much higher than the temperature rating of
household wiring. The current carrying capacity of the conductor is governed by the wire gauge and the
temperature rating of the insulation around the wire.

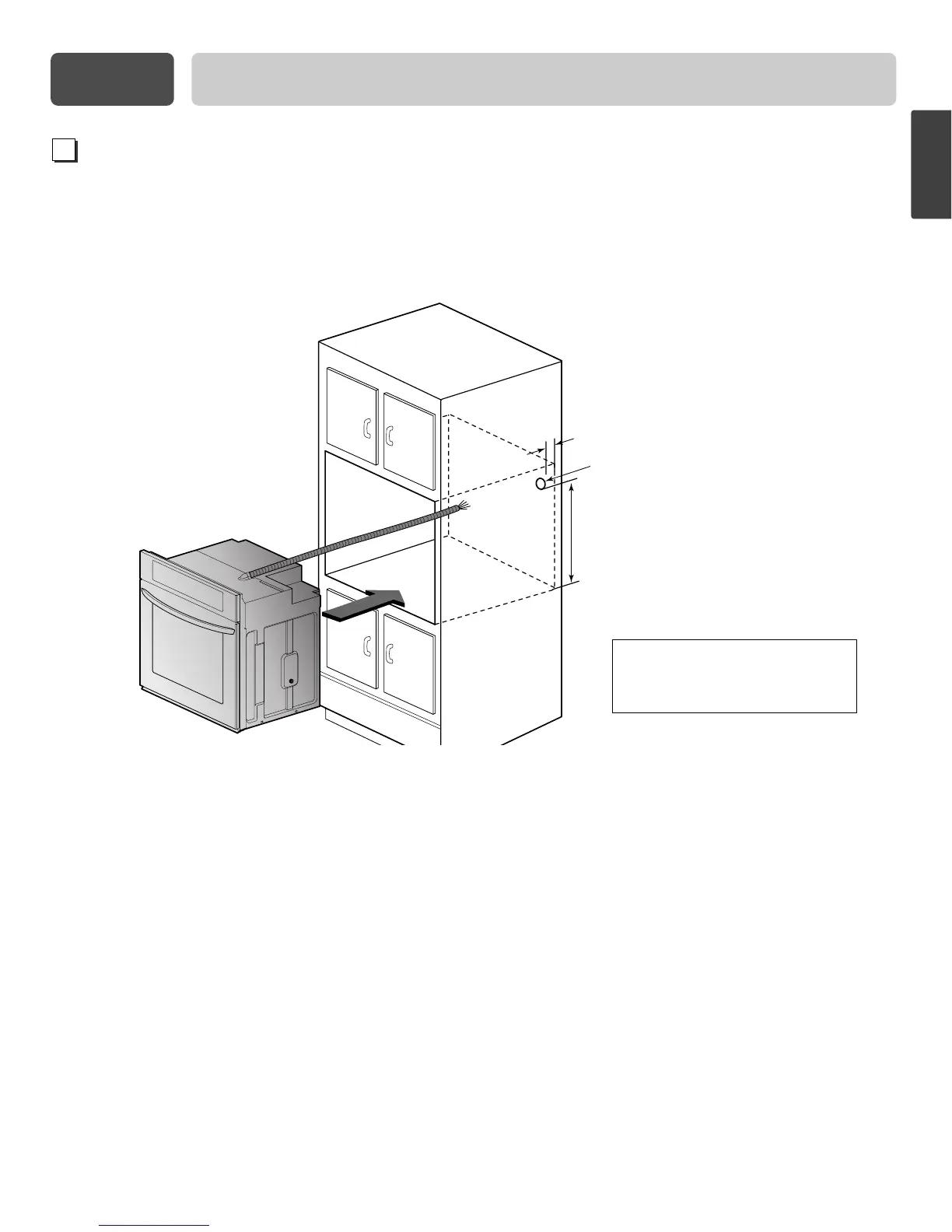

Junction Box
Location
22” Min for single wall oven
42” Min for double wall oven
Junction Box must be recessed
and conduit connector must be
used at Junction Box.
5” Min
2
- 9 -
To Next Page
