9
EXTERNAL EQUIPMENT SETUP

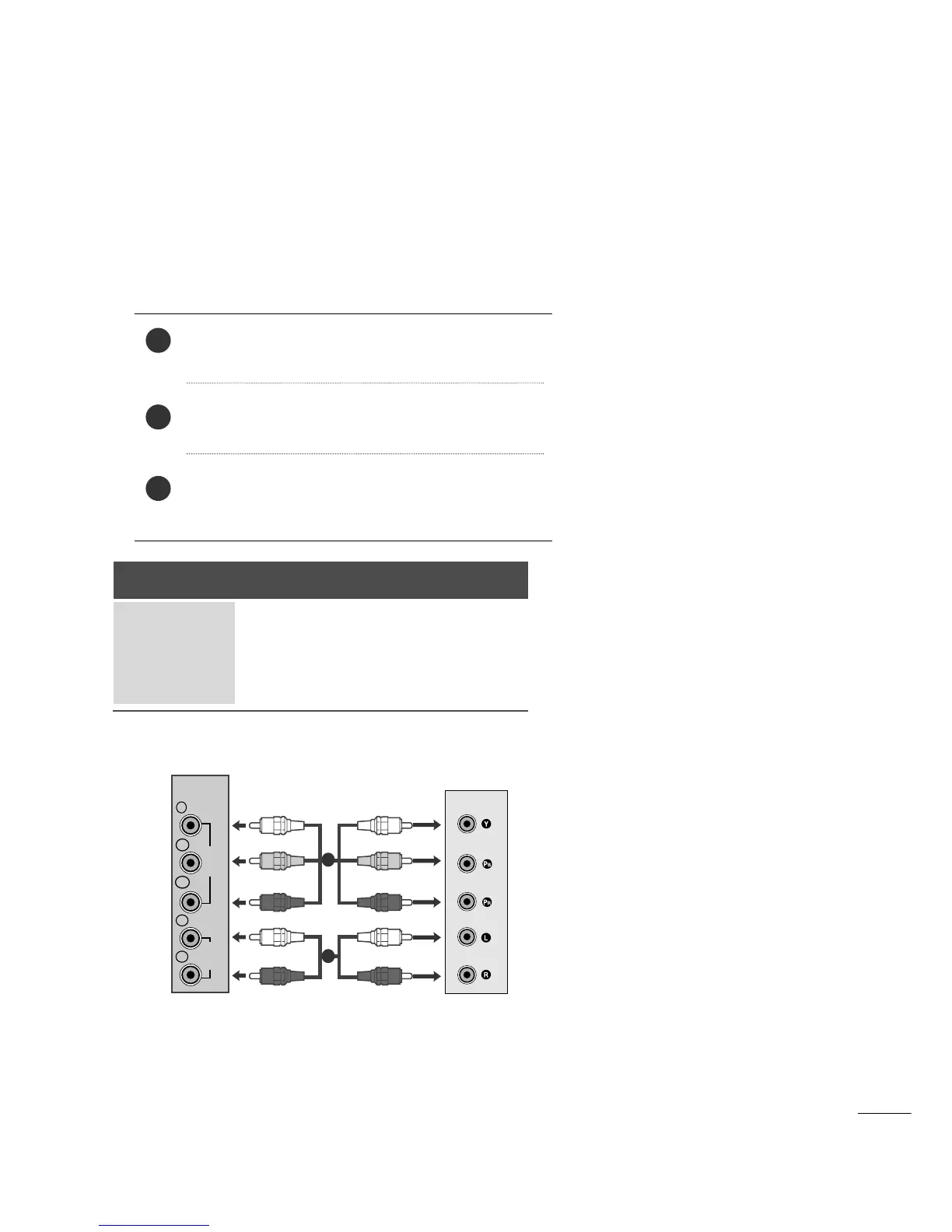

Connect the SET-TOP outputs to the
CCOOMMPPOONNEENNTT IINN
VVIIDDEEOO
sockets (YP
B PR) on the set.
Connect the audio cable from the SET-TOP to
CCOOMMPPOO--
NNEENNTT IINN AAUUDDIIOO
sockets of the set.
Press the
IINNPPUUTT
button to select Component.
2
3
1
HD RECEIVER SETUP
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
The image shown may be somewhat different from your set.
When connecting with a component cable
Signal
480i/576i
480p/576p
720p/1080i
1080p
Component
Yes
Yes
Yes
Yes
HDMI
No
Yes
Yes
Yes
VIDEO
COMPONENT
IN
AUDIO
Y
P
B
P
R
L
R
1
2
