LG MC-806BLR User Manual

24V
(BN)
COM
(YL)
230V(BL)
AC 28V
DC 24V
INPUT
OUT PUT
BN
YL
5-12

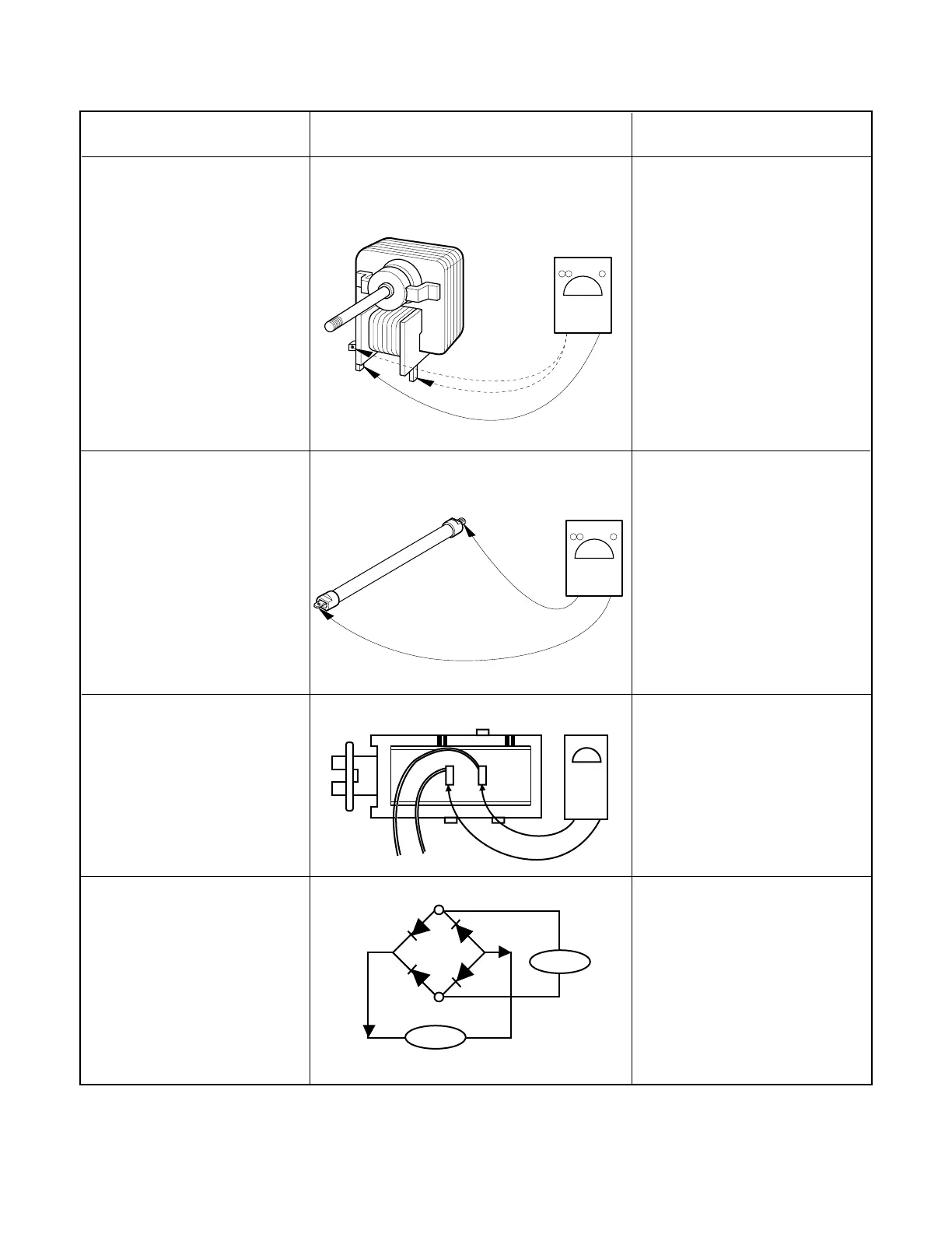

COMPONENTS TEST PROCEDURE RESULTS
CIRCULATION MOTOR
(Wire leads removed)
NOTE:
*( ) = WIRE COLOR
GRILL HEATER
(Wire leads removed)
SOLENOID
RECTIFIRE ASM:
VOLTAGE FOR
SOLENOID
Measure the resistance.
(Multi-meter scale : R x 1)
Measure the resistance.
(Multi-meter scale : R x 1)
Normal : COM-230V : Approx. 150 Ω
COM-24V : Approx. 20 Ω
Abnormal : Infinite or several ohm.
Normal : Approx. 200~300 Ω
Abnormal : Infinite or several
ohm.
Normal : Approx. 134 Ω
Abnormal : Infinite or several ohm.
DC : 24V
