5-13

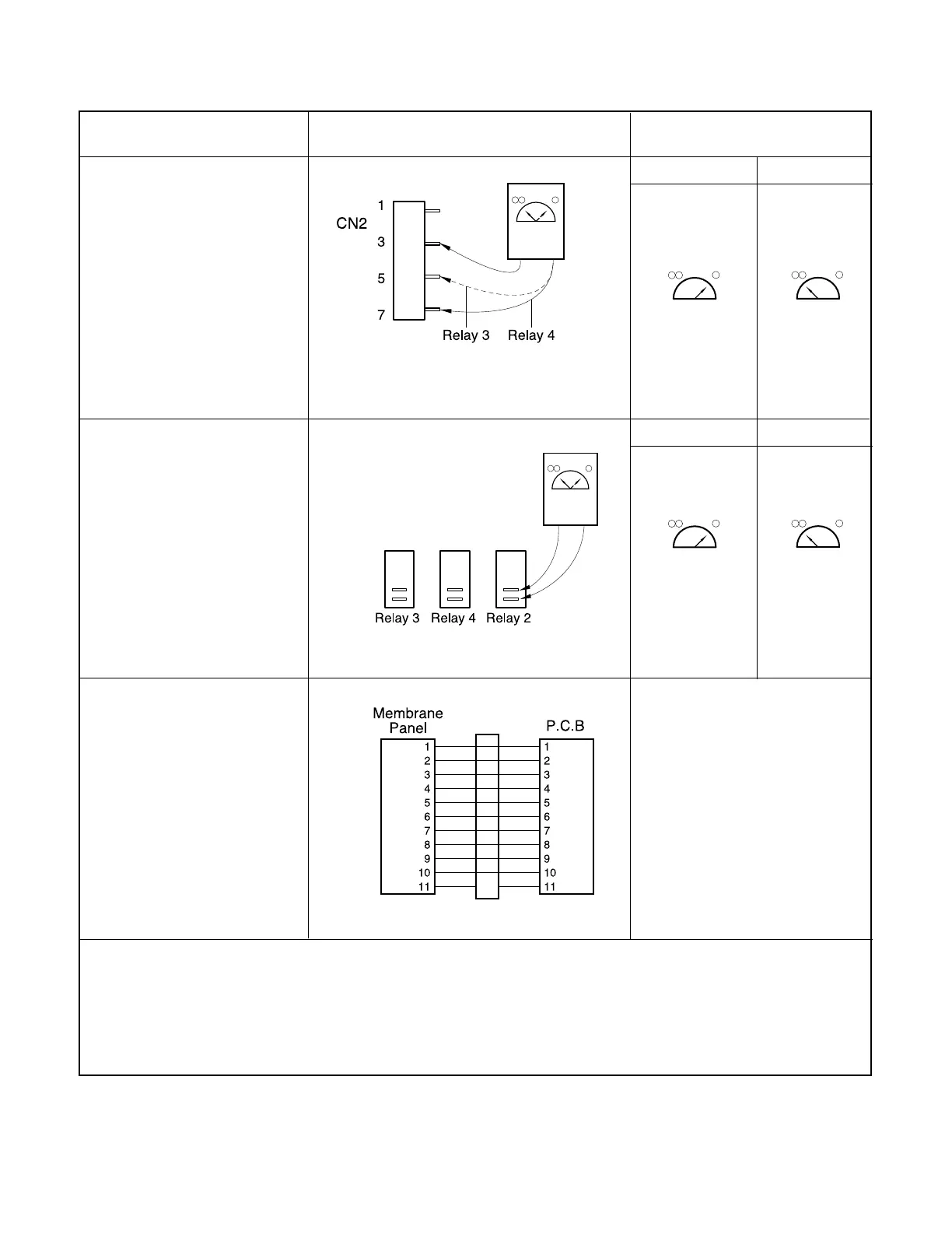

COMPONENTS TEST PROCEDURE RESULTS
RELAY 3,4 OF P.C.B
(Disconnect the 7 pin
connector from P.C.B)
See Schematic Dagram on
page 9)
RELAY 2,3,4 OF P.C.B
(Wire leads removed.)
RY2 : Microwave
RY3 : Grill
RY5 : Convection
MEMBRANE KEY
Check continuity between
switch terminals, by pressing an
appropriate pad on key board.
The contacts assignment of the
respective pads on the key
board is as shown left figures.
NOTE : A MICROWAVE ENERGY LEAKAGE TEST MUST ALWAYS BE PERFORMED WHEN THE UNIT
IS SERVICED FOR ANY REASON.
MAKE SURE THE WIRE LEADS ARE CORRECT POSITION.
WHEN REMOVING THE WIRE LEAD FROM THE PARTS, BE SURE TO GRASP THE
CONNECTOR, NOT THE WIRES.
Cooking Start OFF
Cooking Start OFF
