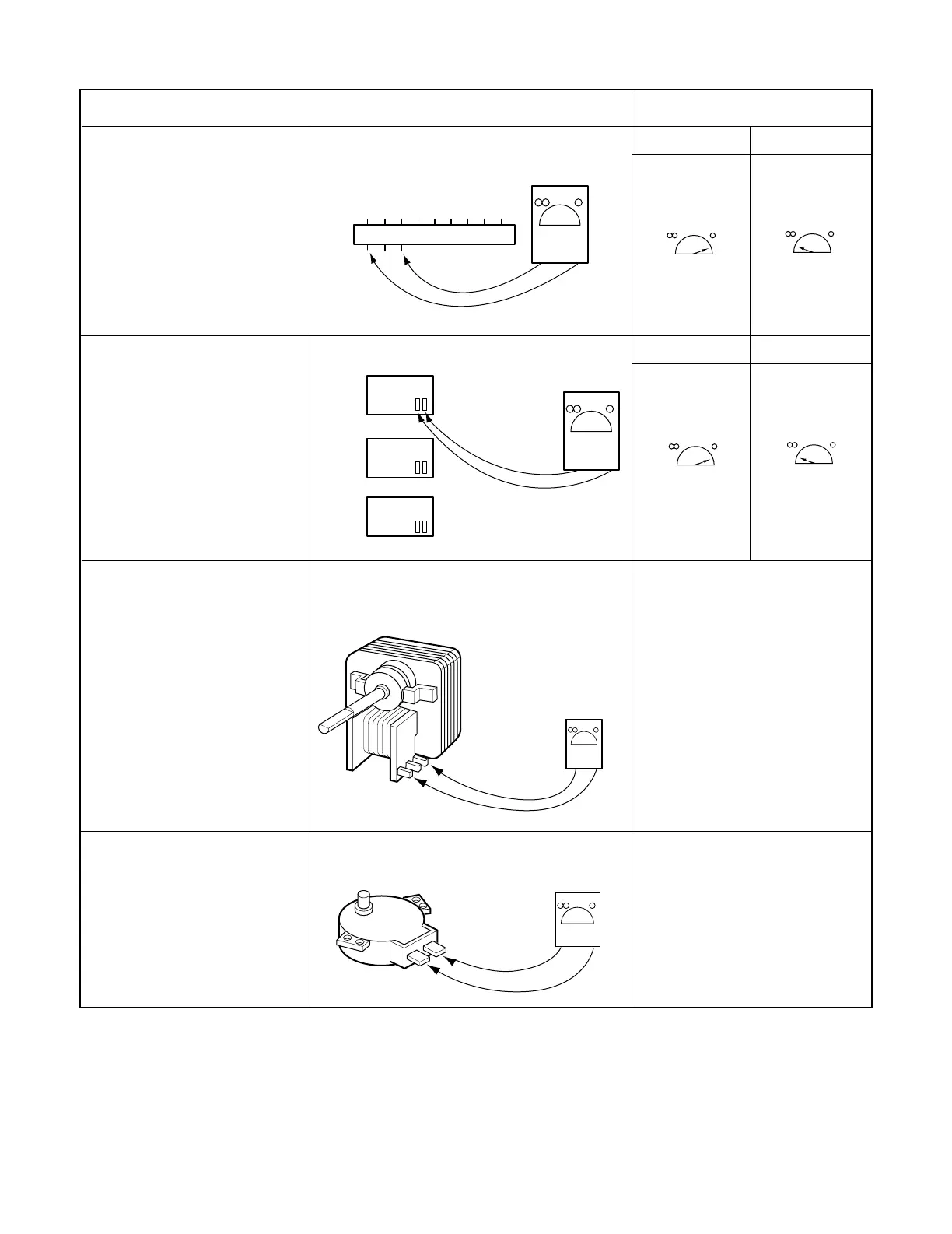

COMPONENTS
TEST PROCEDURE RESULTS
Disconnect the 9 pin
connector from P.C.B.
(Refer to schemetic diagram)
RELAY 2, RELAY 3, RELAY 5
OF P.C.B.
(Wire leads removed.)
Relay 2: Microwave
Relay 3: Grill
Relay 5: Convection
FAN MOTOR
(Wire leads removed)
TURNTABLE
MOTOR
(Wire leads removed)
Measure the resistance.
(Ohm-meter scale:R x 1)
Measure the resistance.
(Ohm-meter scale:R x 1000)
Check for P.C.B. connector.
Normal: Approx. 300 ~500 ohm
Abnormal: Infinite or several
ohm.
Normal: Approx. 10~20 kohm
Abnormal: Infinite or several
ohm.
Cooking Start OFF
Cooking Start OFF
