24

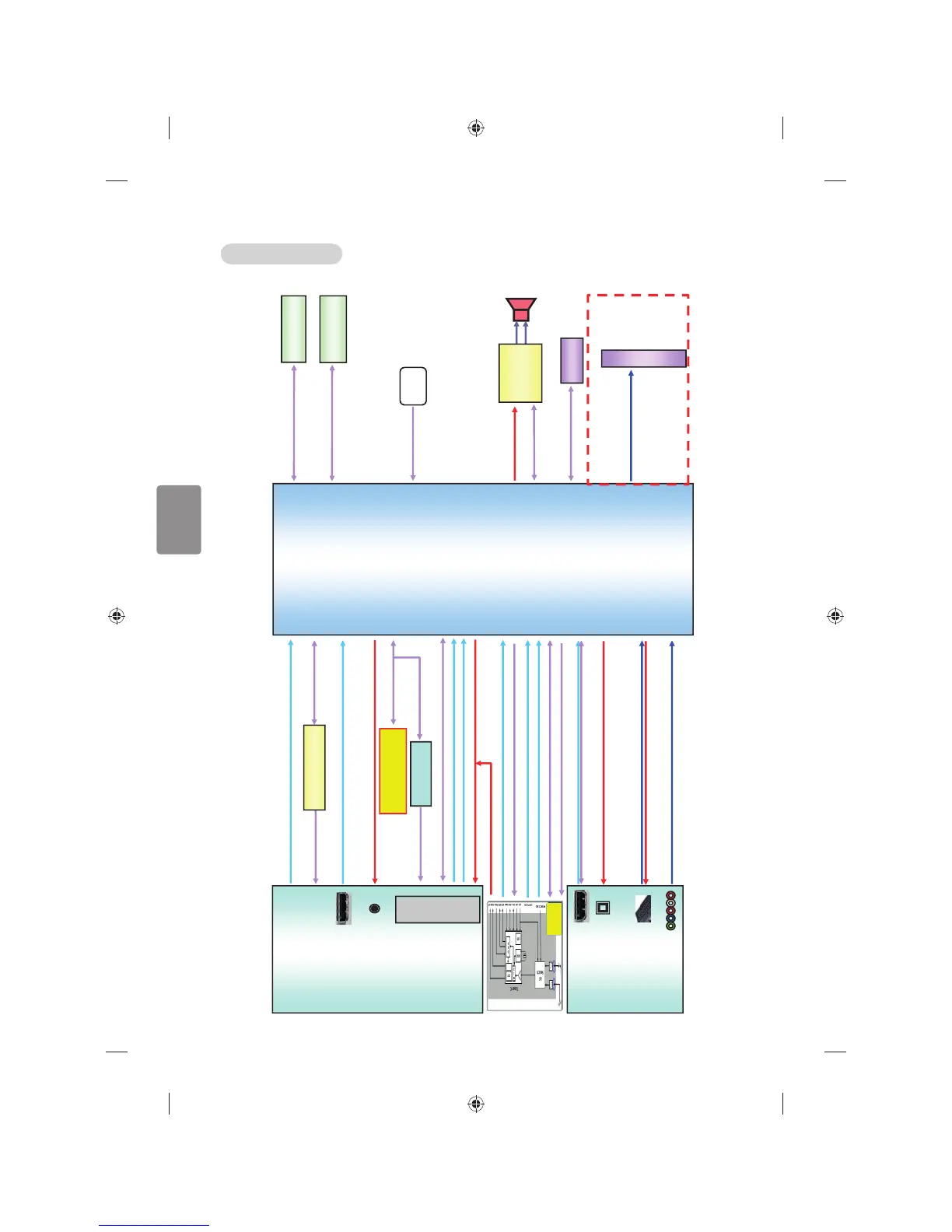

DIAGRAMMI A BLOCCHI
Solo LF54*V, LF56*V
51P FHD LVDS wafer
(P1800)
COMP2_Y+/AV_CVBS_IN, COMP2_Pb+/Pr+
COMP2_L/R_IN
CK+/-, D0+/-, D1+/-, D2+/-_HDMI2
DDC_SCL/SDA_2, HDMI_CEC
Serial Flash
(8Mbit)
IC1300
SPI_SCK/SDI/SDO/CS
I2C_SCL/SDA
IC104
System EEPROM
(256Kbit)
SPK_R
SPK_L
RXA0+/-~RXA4+/-, RXACK+/- RXB0+/-~RXB4+/-, RXBCK+/-
AMP_SCL/SDA
TAS5733
AUD_MASTER_CLK,
AUD_LRCH,
AUD_LRCK, AUD_SCK
(IC5600)
Connector
(P4600)
REAR
KEY1/2, LED_R, IR
HDMI1
(JK800)
F-SCART
(JK2801)
SPDIF_OUT
SPDIF(Optic)
(JK1001
LF56 Only)
SIDE
USB
(JK700)
HDMI2
(JK801)
SIDE_USB_DM/DP
CK+/-, D0+/-, D1+/-, D2+/-,_HDMI4, DDC_SCL/SDA_4, HDMI_CEC
USB1_OCP/CTL
DC/DC
+5V_USB
HP_L/ROUT, SIDE_HP_MUTE
Headphone
(JK3000
LF56 Only)
GjpGzOwX`WWPG
uhukGGmshzoG
pjXWYGOXnPG
PCM_A[0:7]
Buffer
TS_DATA[0:7]
PCM_DATA[0:7]
COMPONENT
(JK2802)
PCM_A[8:14]
TG
Y[tG
SC1/AV2_CVBS_IN,
DTV/MNT_OUT, DTV/MNT_L/R_OUT
SC1_R+/G+/B+, COM1_Y+/Pb+/Pr+
TU_SCL / SDA
F/NIM
DEMOD_SCL/SDA
IF_N/P
IF_AGC
FE_TS_DATA[0:7]
LNB_TX
LNB_OUT, DEMOD_RESET
Main SOC
M1A -256MB 驩녚
(IC101)
ITALIANO
