2. Distributor type MULTI F DX (1 phase)
40 _
Heat pump
50Hz/R410A
Part 2 Product data_Outdoor units

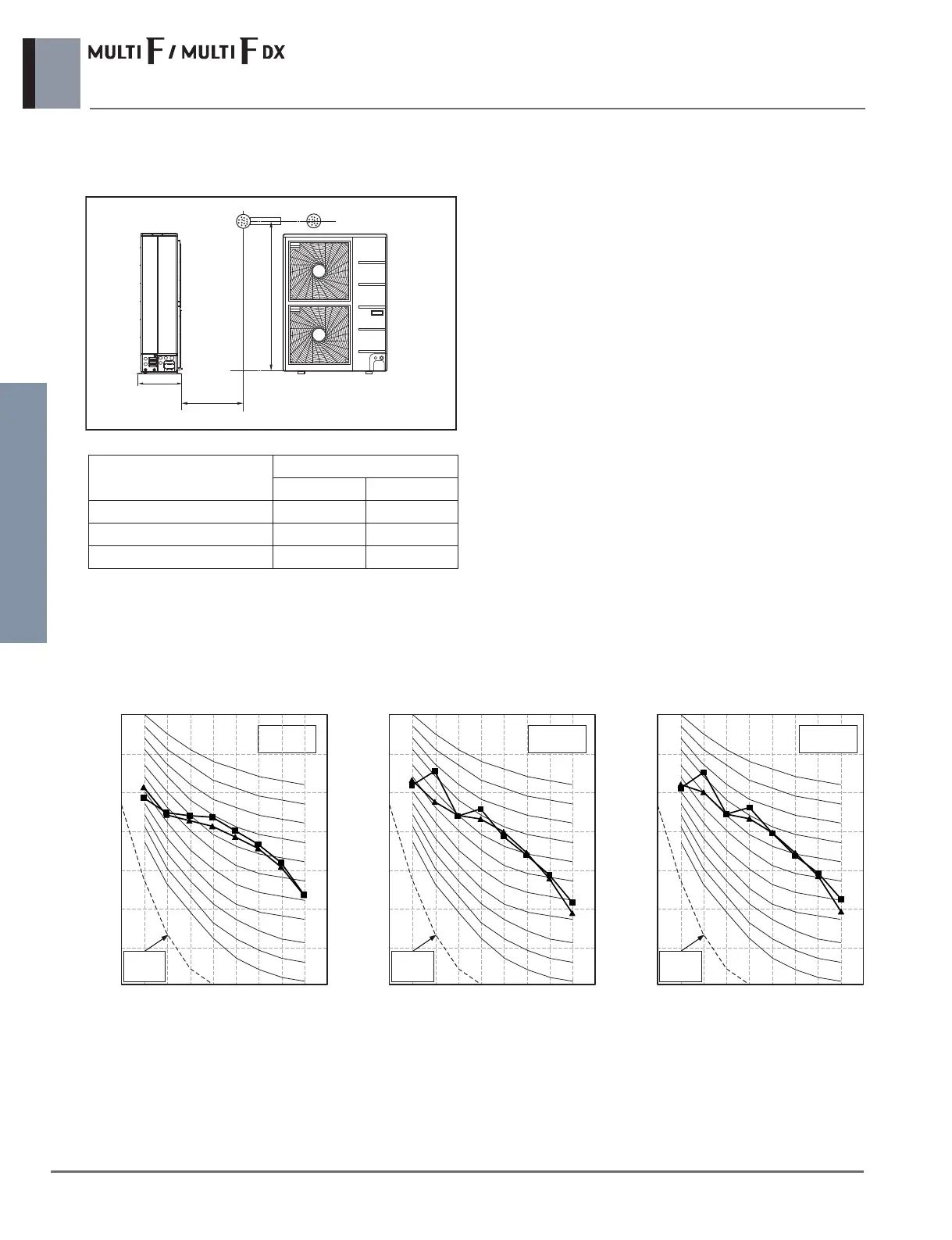

2.13 Sound levels
Overall
1m
1.5m
D
Notes:
-
Sound measured at 1m away from the center of the unit.
- Data is valid at free field condition
- Data is valid at nominal operation condition
- Reference accoustic pressure 0dB = 20μPa
- Sound level will vary depending on a range of factors such
as the construction(acoustic absorption coefficient) of par-
ticular room in which the equipment is installed.
- The operating conditions are assumed to be standard.
Sound pressure level
Model
Sound Pressure Level [dB(A)]
Cooling Heating
A7UW40GFA0 [FM40AH UO2]
53 55
A8UW48GFA0 [FM48AH U32]
54 56
A9UW56GFA0 [FM56AH U32]
54 56
A7UW40GFA0 [FM40AH UO2] A8UW48GFA0 [FM48AH U32] A9UW56GFA0 [FM56AH U32]
Octave Band Center Frequency (Hz)
Octave Band Sound Pressure Level (0dB = 20μPa )
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Octave Band Center Frequency (Hz)
Octave Band Sound Pressure Level (0dB = 20μPa )
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Octave Band Center Frequency (Hz)
Octave Band Sound Pressure Level (0dB = 20μPa )
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
▲ Cooling
n Heating
▲ Cooling
n Heating
