Heat pump 50Hz/R410A _ 58
3. Installation of outdoor unit
Part 3 Design and installation

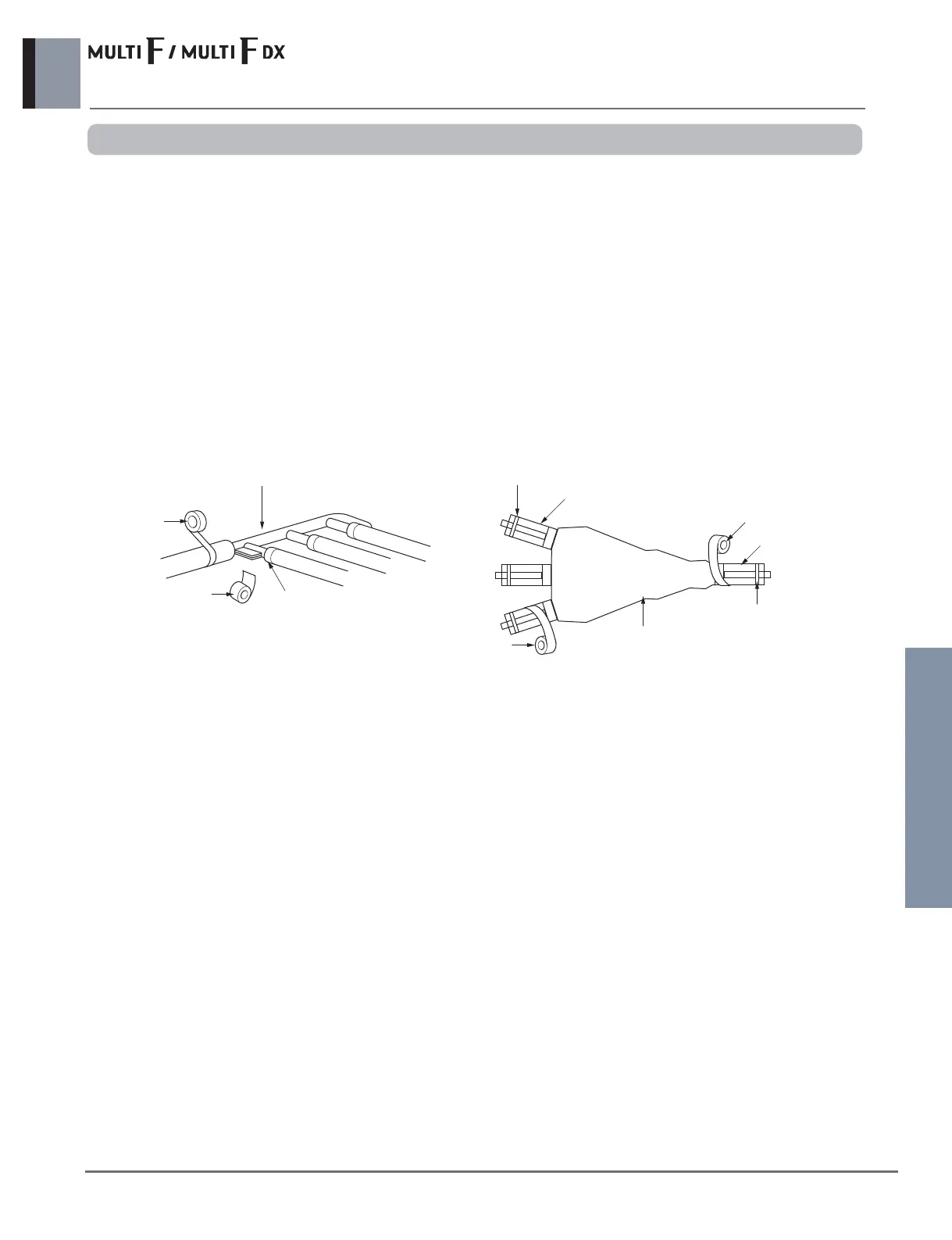

Branch kit(PMBL1203F0)
Thermal insulation work
• Securely wrap the refrigerant and the branch pipe by using thermal insulation materials provided.
When using thermal insulation materials released, use withstand heat insulation materials.(thickness
of more than 10mm)
• Securely adhere thermal insulation materials wrapping the branch pipe so that they do not widen.
After wrapping them with auxiliary materials , bound them with a band .
• Finish the work by wrapping with a vinyl tape after the insulation material work.
• When installing the branch pipe, direction and angle of installation is not limited.
• Take care so that burrs and foreign material may not enter into the cutting surface when connecting.
