9
Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

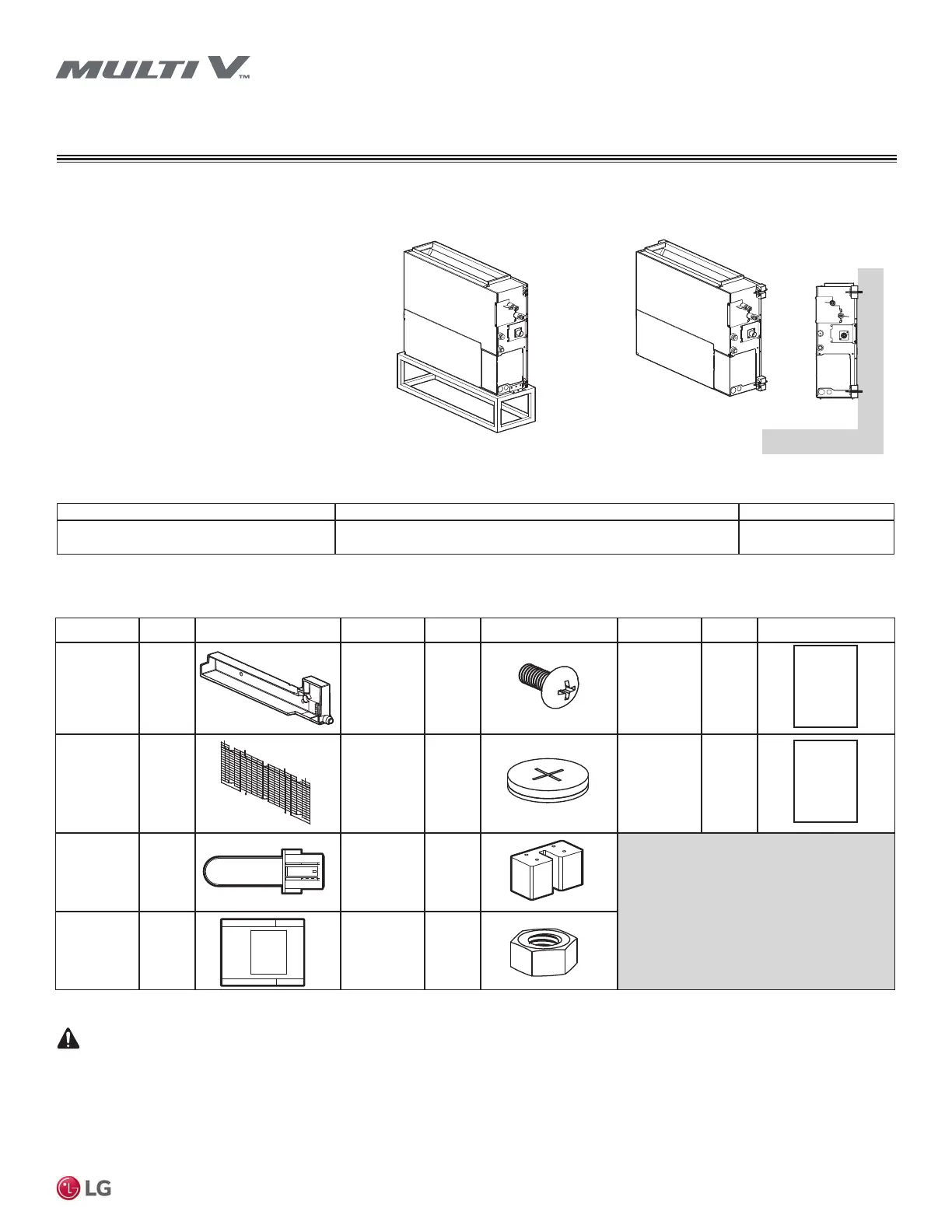

INTRODUCTION
Table 1: Optional Accessory Table.
Model Number Description Quantity
ABDAMA0
Convertible Mid-Static Ducted (MA Chassis) Vertical Installation
Conversion Kit
One (1)
Optional Accessory
Part Quantity Image Part Quantity Image Part Quantity Image
Vertical Drain
Pan Assembly
One (1)
D4 / L10
Screws
Five (5)
Vertical
Installation
Manual
One (1)
Metal Mesh One (1) Washers Four (4) Caution Label Two (2)
CN_FLOAT
Molex
Connector
One (1) Bushings Four (4)
CN_D_PUMP
Molex
Connector
One (1) M10 Nuts Four (4)
Table 2: Optional Accessory Parts (Included with the conversion kit).
Optional Accessory
When installing the convertible mid-static ducted indoor unit vertically, the mesh steel provided MUST be installed to avoid injury from moving parts.
Note:
Parts required will be different depending if the installation is on the oor or the wall.
Convertible Mid-Static Ducted (MA Chassis)
Vertical Installation Conversion Kit
The Convertible Mid-Static Ducted Vertical Instal-
lation Conversion Kit MUST be purchased (sold
separately) and applied to install the mid-static
ducted indoor unit vertically.
Figure 7: Convertible Mid-Static Ducted (MA Chassis) Vertical Installation Options.
Option 1. Floor Installation
Wall
Floor
Option 2. Wall Installation
Note:
The Installation Conversion Kit can ONLY be
used with Convertible Mid-Static Ducted (MA
Chassis) indoor units.
To Next Page
