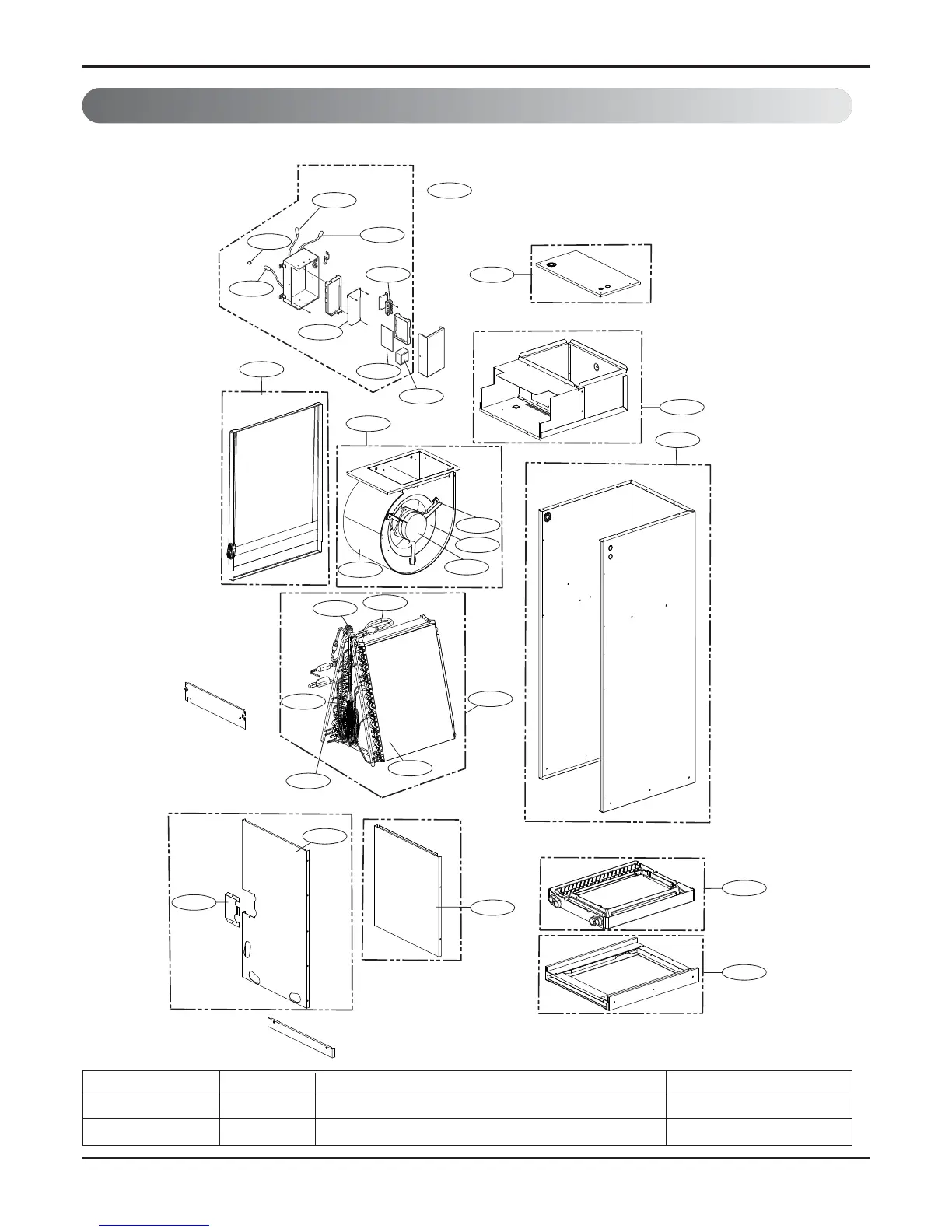

5. Exploded View
354210A
352118A
55211G
336610B
346810
349600
336610A
354212
147911
137214
354210B
268711C
268711B
249951
263230B
263230A
263230C
261704
W6640
THERMISTOR 1
THERMISTOR 3
THERMISTOR 2
359012
352118B
268711E
137211B
W4811
130911
137211A
330871B
130411
330871A
Thermistor 1 263230A Inlet Air Thermistor Housing Color : Yellow
Thermistor 2 263230B Pipe In thermistor Housing Color : White
Thermistor 3 263230C Pipe Out thermistor Housing Color : Red
NJ
