LG MULTI V ARUN***CTE4 User Manual

ELECTRICAL WIRING
57
ENGLISH
NOTE
!
- Field Wiring diagram is to be used as a guideline only. Wiring should comply with applica-
ble local and national codes
- ELCB must have function to prevent electrical short and over current at the same time .
- Use copper wires only.
- Unit must be grounded in compliance with the applicable local and national codes.
- ELCB and fuse/breaker must install to the power line

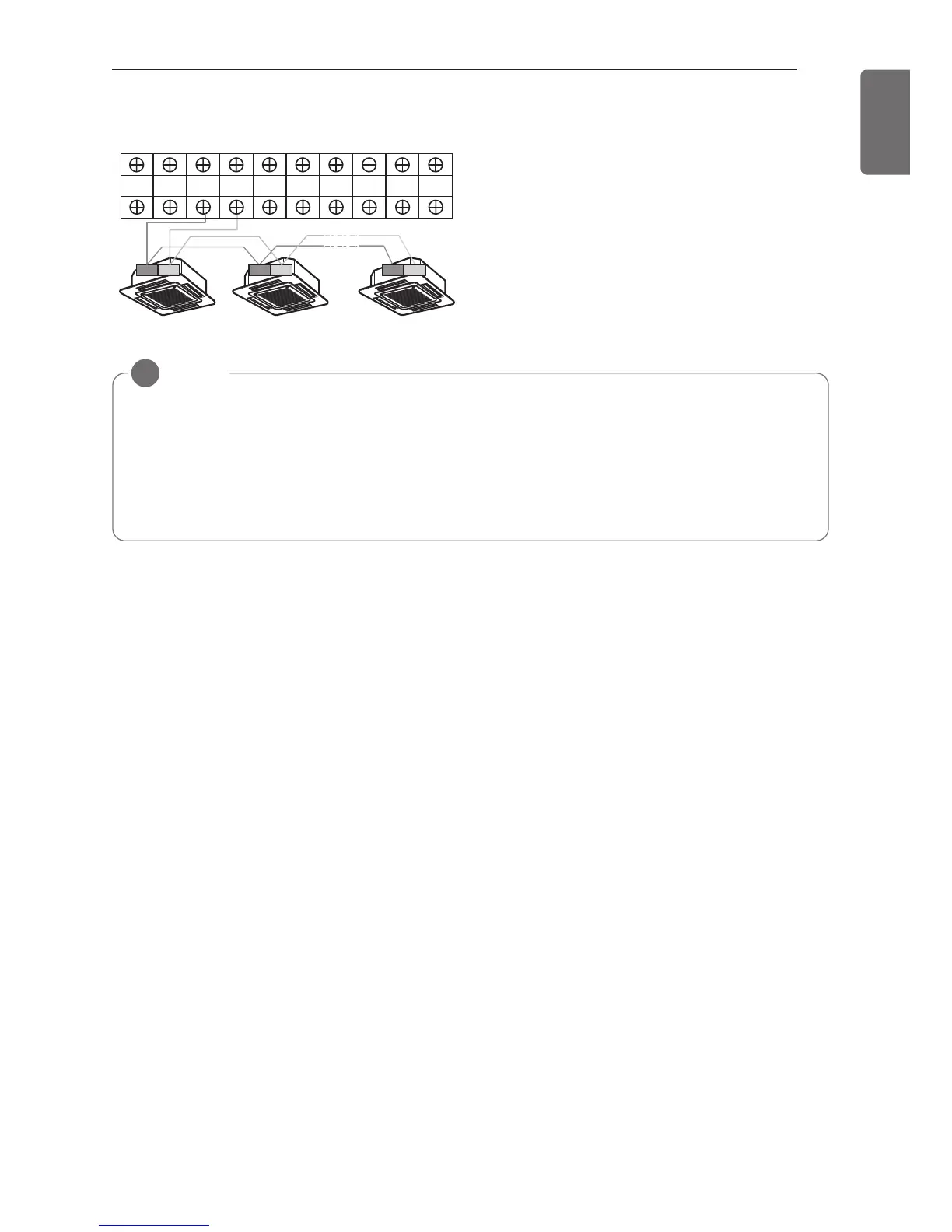

Between Indoor and Master Outdoor unit
[Heat Pump]
34 34 34
Master
Outdoor Unit
SODU. B SODU. A IDU. B IDU. A CEN. B CEN. A DRY1 DRY2 GND 12V
