Copyright ©2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 19 -

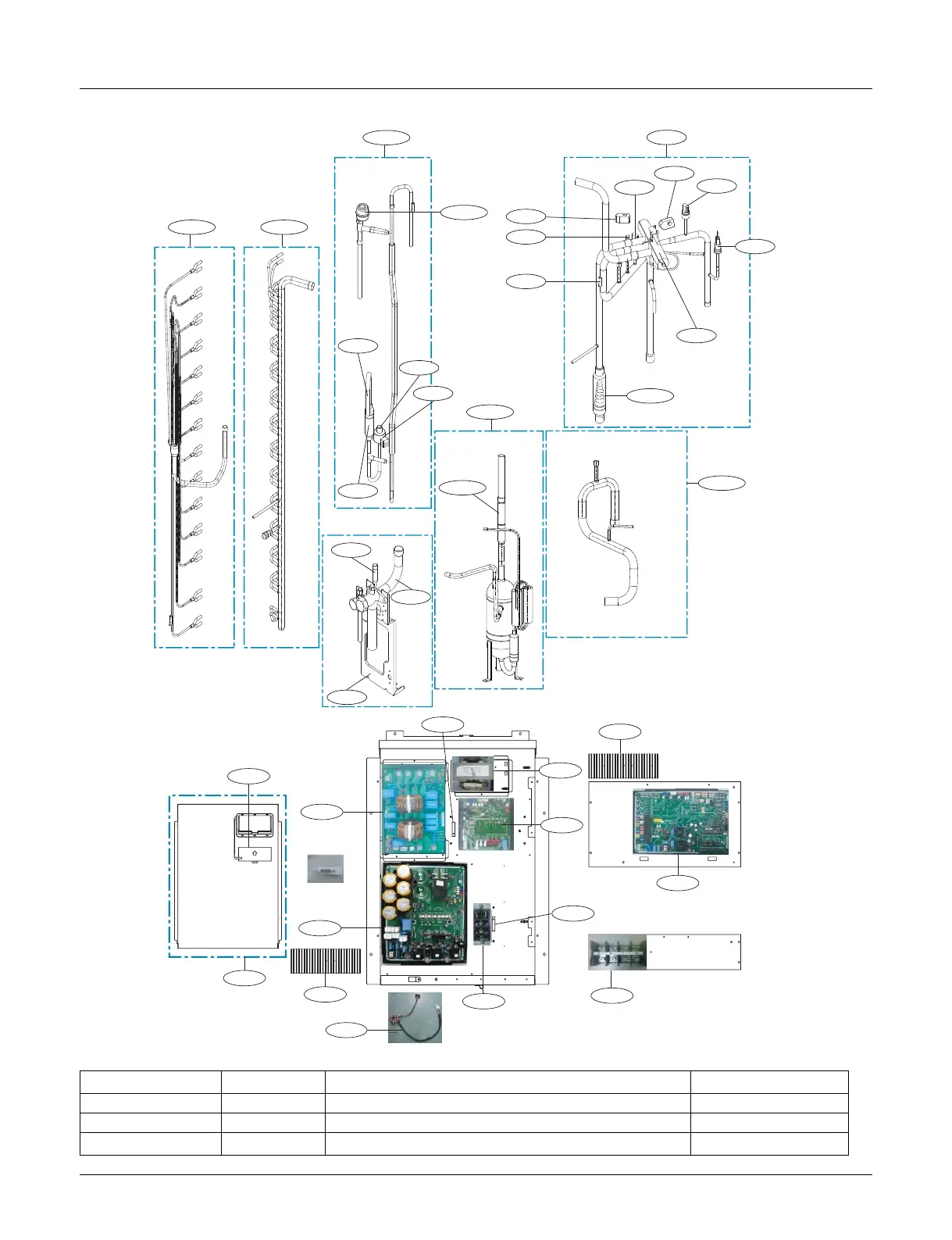

Exploded view
552116
552114
55211G
352114 552115
552201A
552201C
552203B
552203A
148000D
165010B
552204B
561410A
263230B
263230A
552200A
165010A
561410D
552202
552117
W52240B
W52240C
661400
566000
Inv. PCB Grease
(Inv. Heat Sink)
RAC31217901
(Fan Heat Sink)
268711A
W0DS
W6200
268711B
261704
263230E
W6640
135500D
435511
W49200B
W49200A
263230D
W6631A
268711C
Part L/No. Sensor location Remark
Temp. Sensor 1 263230A Sub-Cool Out + Liquid Pipe Housing Color : Yellow
Temp. Sensor 2 263230B Suction Pipe + Inv. Discharge + HEX Housing Color : Purple
Temp. Sensor 3 263230E Air + Inv. IPM Housing Color : Green
