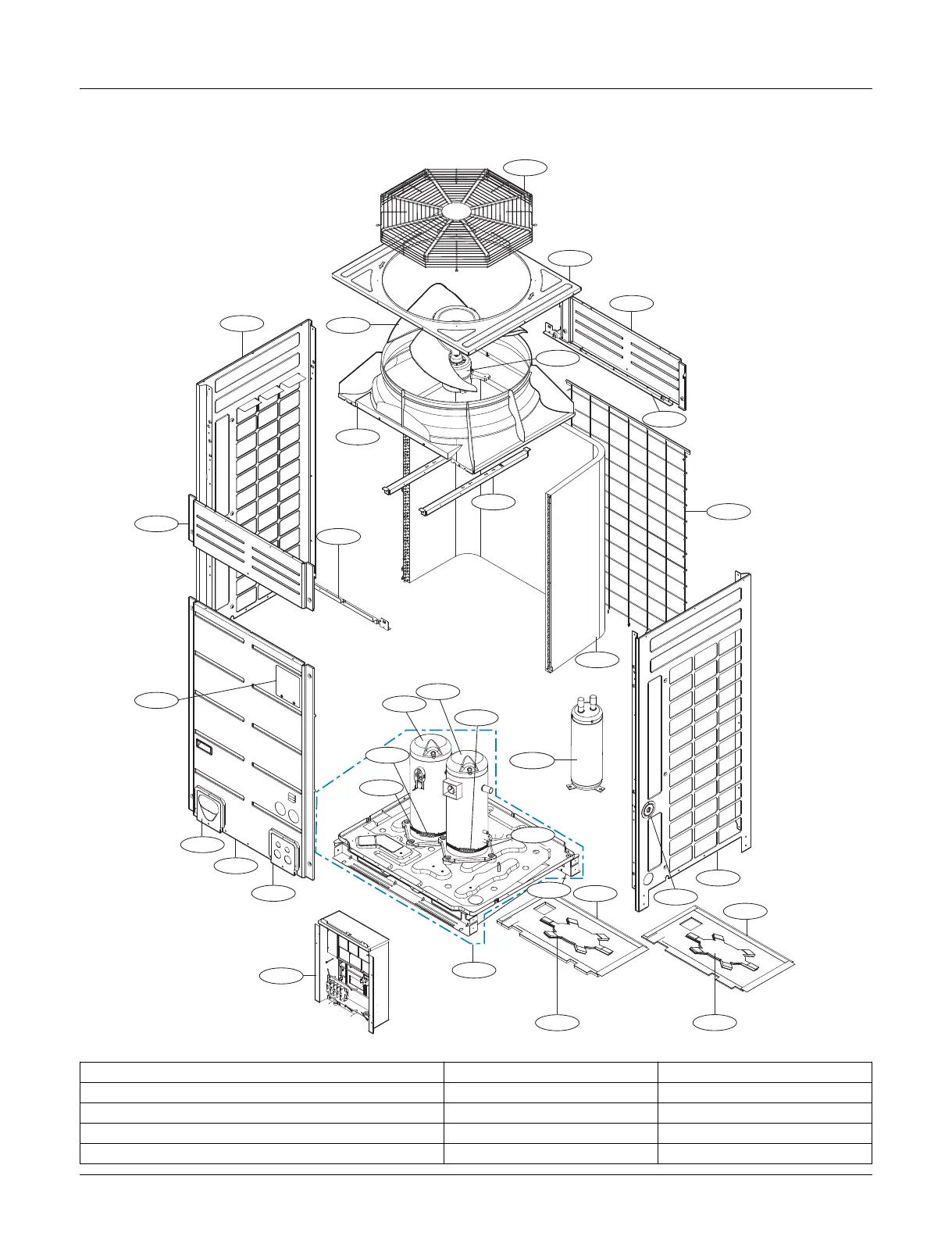

Exploded view
135313A
554031
437211A
135500A
237203A
135500C
135500B
137213A
549990
559010
546810
W4810A
137213B
135500E
W4986D
554160B
554160A
W4986B
W4986C
435301
237203B
237203A
147780
430410
(Base Pan Assembly)
(Sound proof for Inv. Comp) (Sound proof for Const. Speed Comp)
649950
553000B
W4986A
W48601
W48602
553000A
W4810A
W4810B
548490
6.1.2 10,12HP(UX2 2Comp.)
Part L/No. Remark
Inv Comp. Heater 553000A Housing Color : Blue
Const. Speed Comp. Heater 553000B Housing Color : Yellow
Inv Comp. Heater Spring W48601 -
Const. Speed Comp. Heater Spring W48602 -
