LG MULTI V WATER IV ARWN LAS4 Series Installation Manual

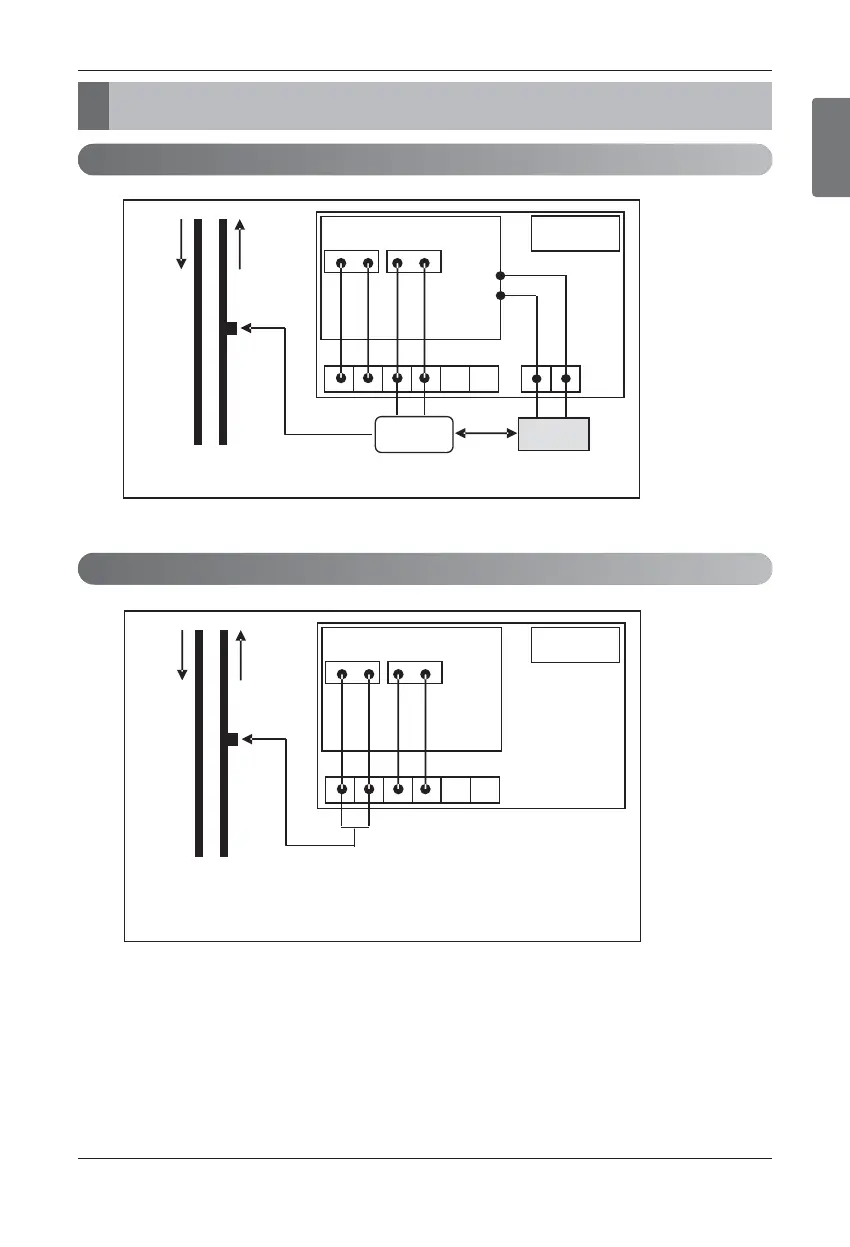

Water Solenoid Valve Control
Water
In
Water
Out
Solenoid
Valve
※ Refer to setting the function and turn on the power
When you individual control for water solenoid valve
control.
CN_18
(220 V Out)
CN_22
(to DDC)
1(L) 2(N) 3(L) 4(N)
Main PCB
Water
In
※ BMS : Building Management System
Water
Out
Solenoid
Valve
CN_18
(220 V Out)
CN_22
(to DDC)
PI 485
DDC
BMS
1(L) 2(N) 3(L) 4(N)
Main PCB
Water Solenoid Valve Control
Central Control(Use DDC Port)
Individual Control(Use 220V Output Port)
Installation Manual 77
ENGLISH
