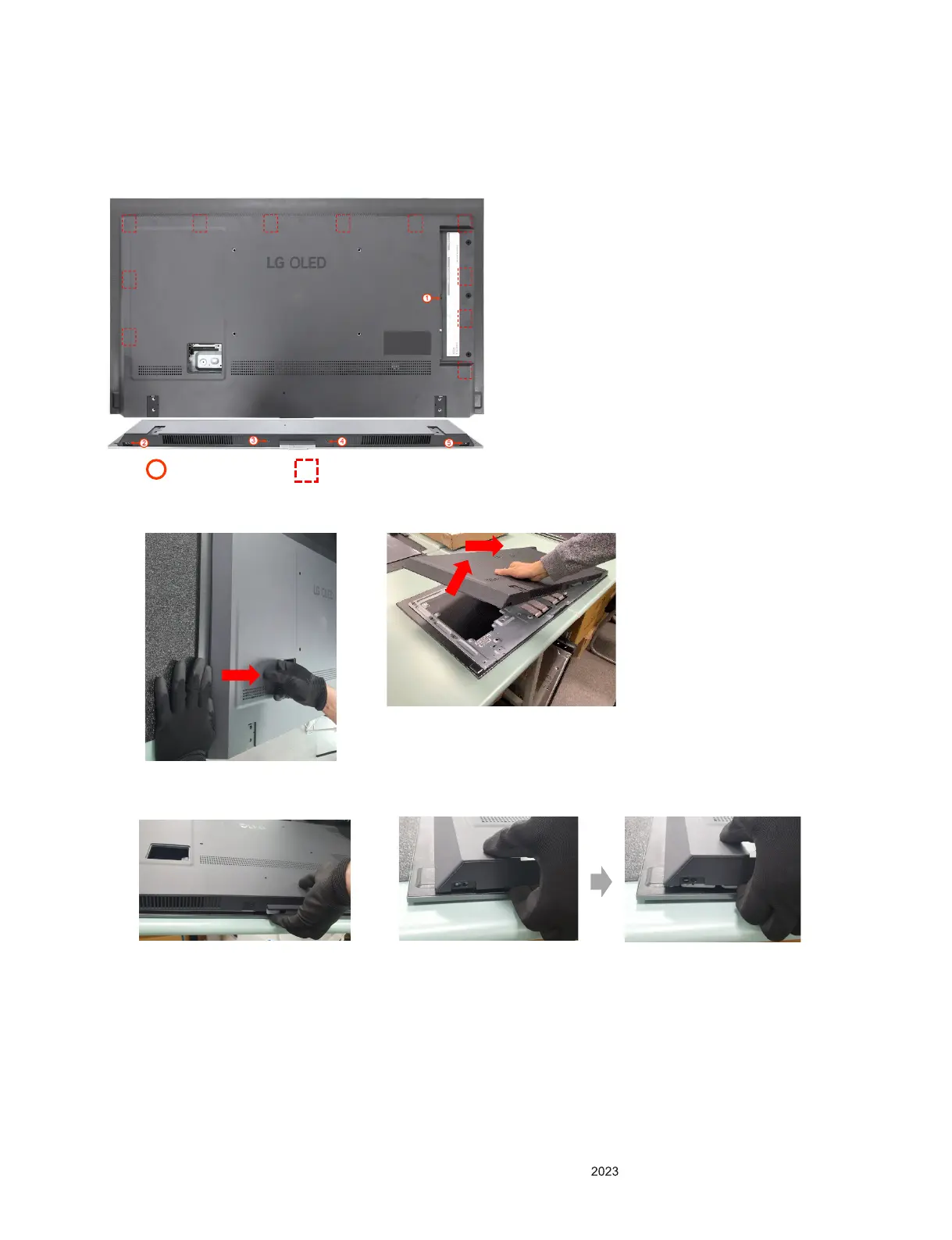

(2) Firstly, remove 5 Screws and Follow Guide to separate rear cover from set,
1) Grab the Edge of Hole where the Power Cord Bracket places.
2) Pull the Rear Cover from your left to the right until the Rear cover separate from Module.
* Reference (when it’s dicult to disassemble back cover)
Screw : 5ea
1
Latch: 11ea
①
②
②
①
②
Push up IR position to upward
Disassemble B/C with separating fixed shapes in the left/right bottom
Left/Right Symmetry
Left/Right Symmetry
