LG OLED48C1PT Series Service Manual

- 23 -
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

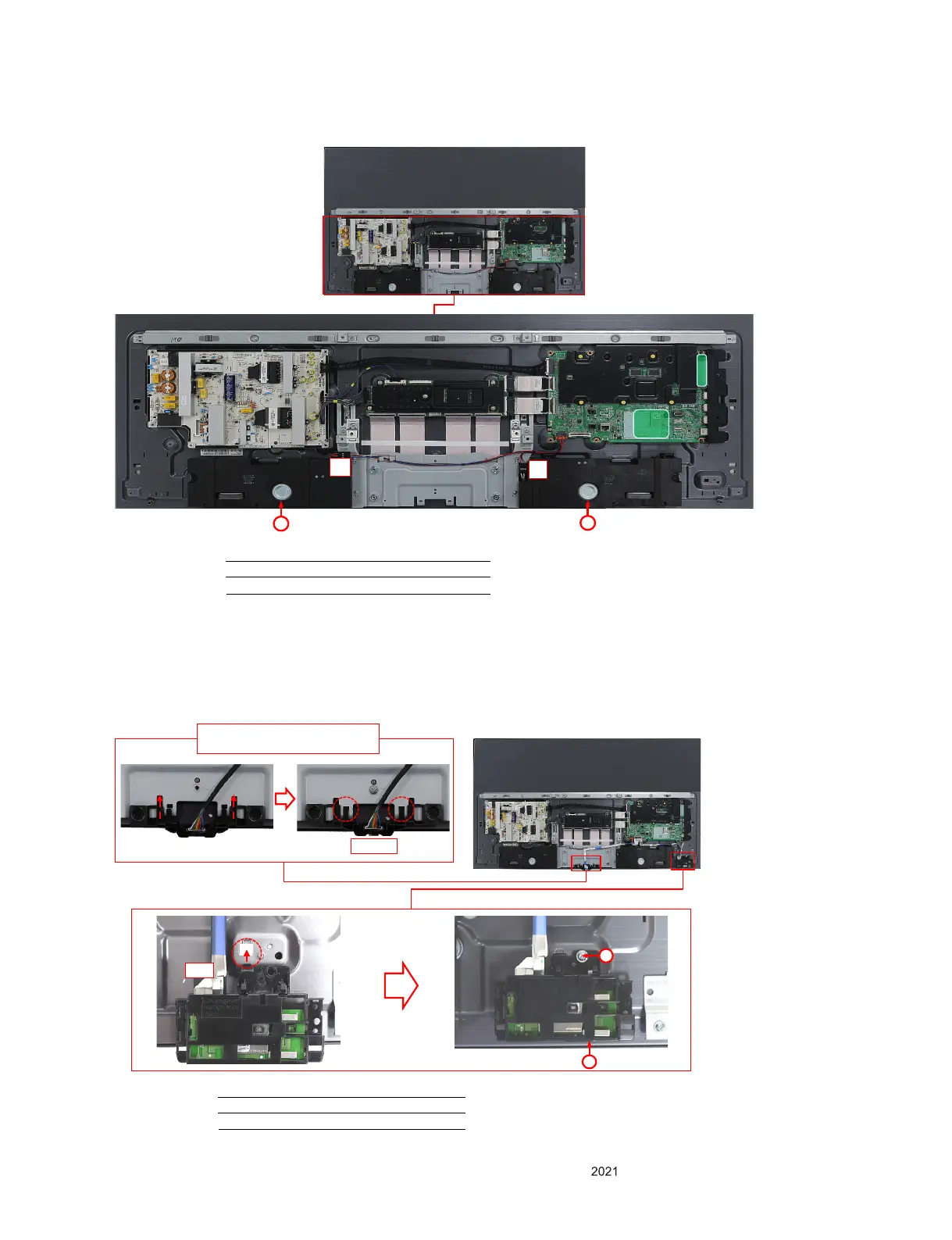

(8) Assemble SPEAKER L/R + SUPPORTER.
(9) Assemble/Fix the SUB PCB ASSY + MODULE
[Self/Successive Check]
1. [Visual Check] Check to fix the PCB with the screw for needed points.
[Key Control Point]
* When assemble the PCB and Fix with the screw, be careful not to damage at PCB.
RH
LH
1
2
SPEAKER ASSEMBLY
SPEAKER ASSEMBLY
K0600711 65 55 CX BX LEFT 20W
K0600712 65 55 CX BX RIGHT 20W
No
Description Qty
①
②
1
1
Specification
Insert
Insert Harness into the STOPPER
until Connect sound is occurred
1
2
Insert
BRACKET ASSEMBLY,SUB
SCREW,MACHINE
BRH + 3MM 5.5MM SWCH18A FZMW N
BRACKET OLED48CX - IR ASSY(IR
No
Description Qty
①
②
1
1
Specification
