LG OLED48C1PUB User Manual

- 24 -
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

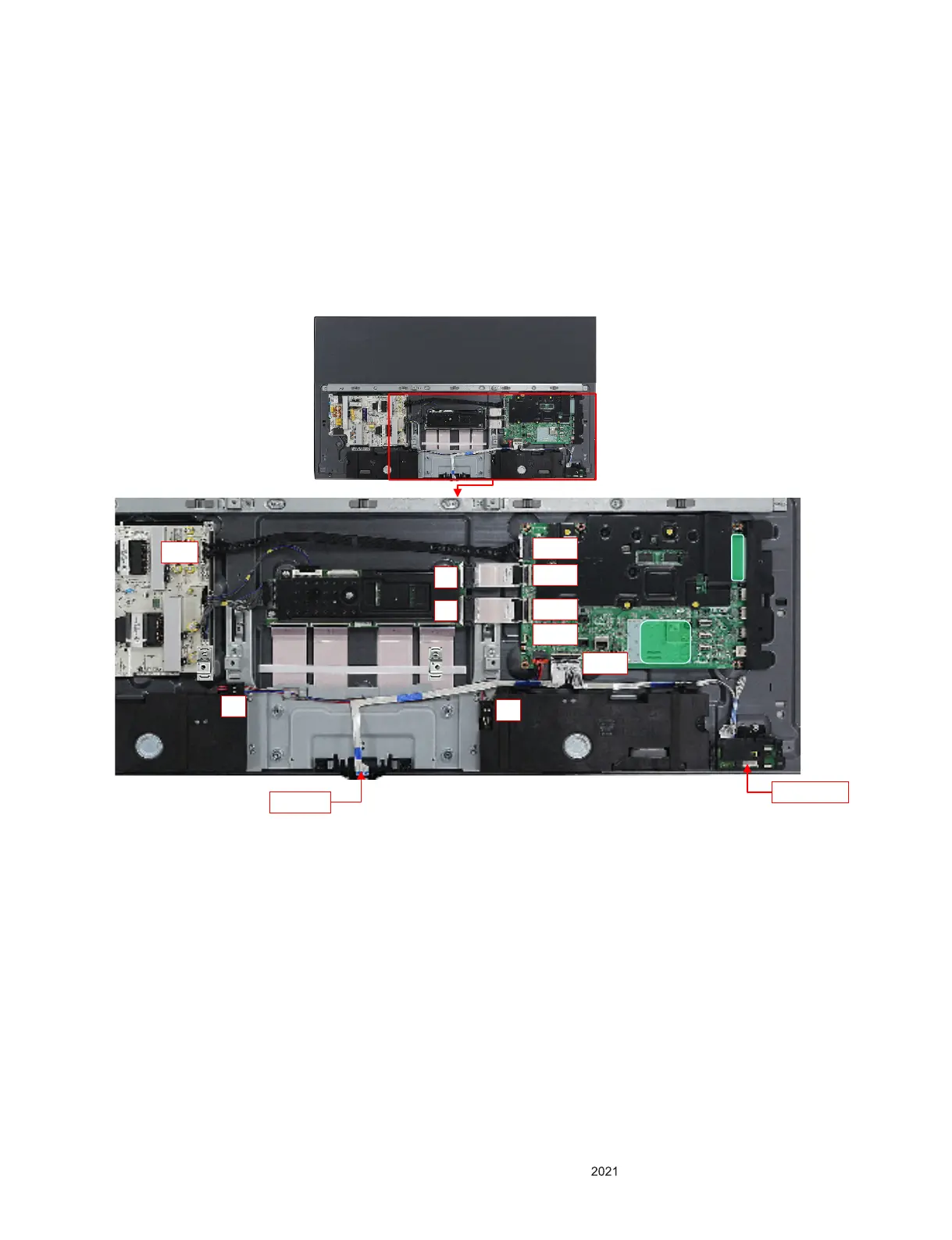

(10) Insert the HARNESS
1) MAIN PCB P7602 → MODULE “A”
2) MAIN PCB P7601 → MODULE “B”
3) MAIN PCB P7603 → POWER P201
4) IR/WIFI ASSY → MAIN PCB P4000
5) MAIN PCB P5901 → SPEAKER “C”
→ SPEAKER “D”
[Key Control Point]
* Insert Harness into the WAFER until Connect sound is occurred.
* Be careful a particle in FFC Pin.
“A”
“B”
P7603
P7601
P201
P4000
P5901
“C”
“D”
IR ASSY
WIFI ASSY
P7602

LG OLED48C1PUB Specifications

General

Screen Type	oled
Color	black
Wall Mount	300mm x 200mm
Tuner	digital, atsc, clear qam
Screen Size	48.2 inches, 48 inches
Screen Technology	standard oled
Resolution	4k (2160p)
Refresh Rate	120hz
Closed Captioning	yes
HDR	yes
HDR Format	dolby vision, hdr 10, hybrid log-gamma (hlg)
Built-In Speakers	true, downward firing
Surround Sound	dolby atmos
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	4
HDMI ARC Ports	yes
USB Ports	3
USB 2.0 Ports	3
USB 3.0 Ports	0
Ethernet	yes
RF Antenna	yes
Bluetooth	true, 5.0
Network	built-in wi-fi, ethernet
Headphones Output	yes
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	0
DVI	0
VGA Ports	0
SmartTV	webos
Streaming Services	hbo max, netflix, prime video, disney+, apple tv+, hulu, paramount+, peacock, youtube tv, spotify, iheartradio
Smart Applications	google assistant, amazon alexa, apple homekit
Other Devices Connection	mobile to tv
Voice Assistant	google assistant, amazon alexa
Remote Control	magic, voice control
3D	no
Power Consumption	167 kilowatt hours
Depth with Stand	9.9 inches
Height with Stand	25.6 inches
Width with Stand	42.2 inches
Net Weight with Stand	41.7 pounds
Depth without Stand	1.8 inches
Height without Stand	24.3 inches
Net Weight without Stand	32.8 pounds
