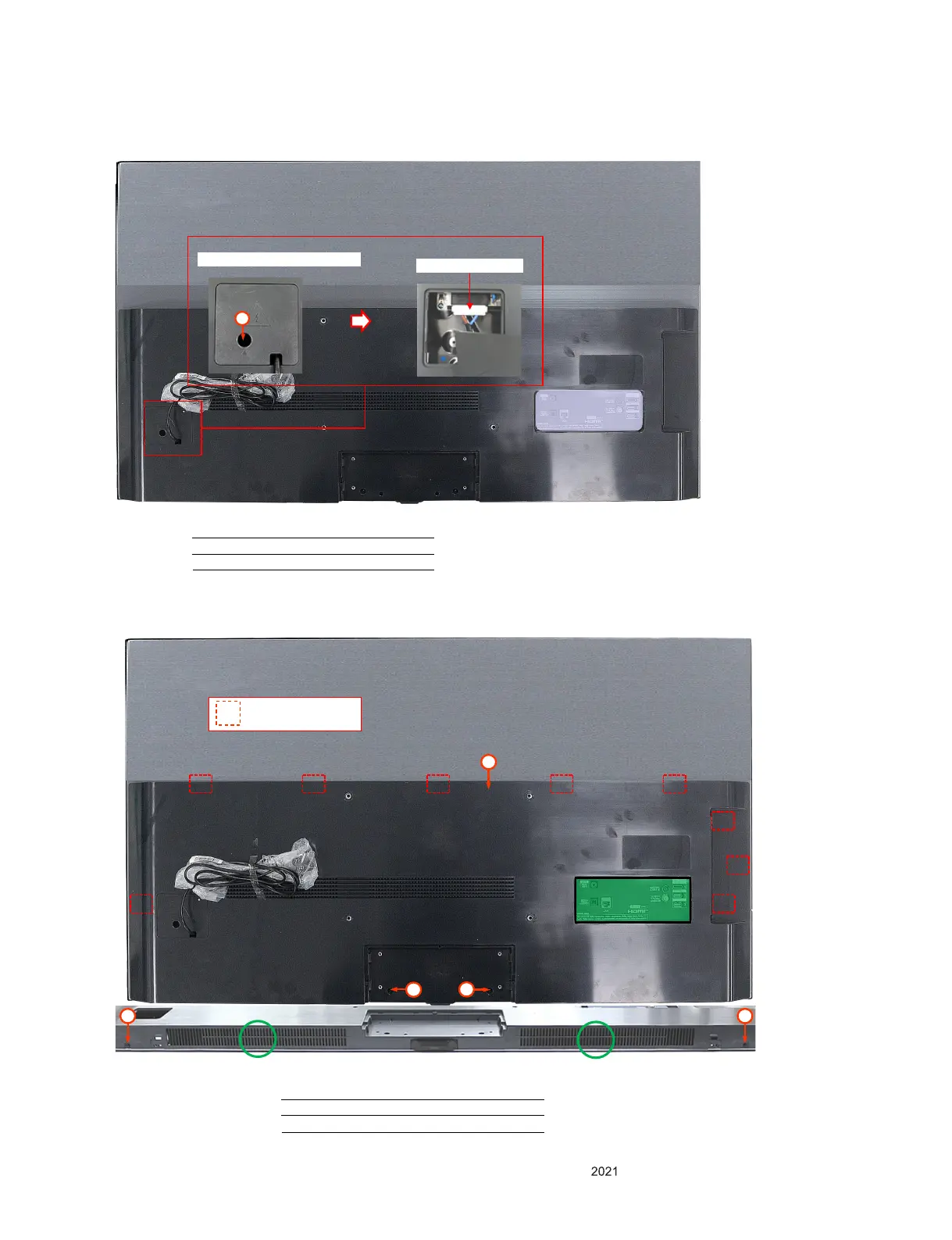

(3) DisAssemble the SCREW and BRACKET from the BRACKET.
(4) Unfasten the HARNESS from POWER PCB WAFER.
(5) Unfix SCREW and DisAssemble the REAR COVER from the MODULE.
* Put hand on the marked area( O ), Separate the back cover to the top.
DisAssemble the WAFER.
2
CHASSIS ASSEMBLY,SUB
SCREW,MACHINE
BRH + 3M 5.5M SWCH10A FZB N -
SUB EDX1C 48/55/65CX, 55/65BX
No
Description Qty
①
②
1
1
Specification
DisAssemble the SCRW and BRACKET.
2
2
2 2
Check the LATCH Position.
1
COVER ASSEMBLY,REAR
SCREW,MACHINE
BRH + 3M 5.5M SWCH10A FZB N -
OLED48CX . 48\” CX COVER ASSEM
No
Description Qty
①
②
1
4
Specification
To Next Page
