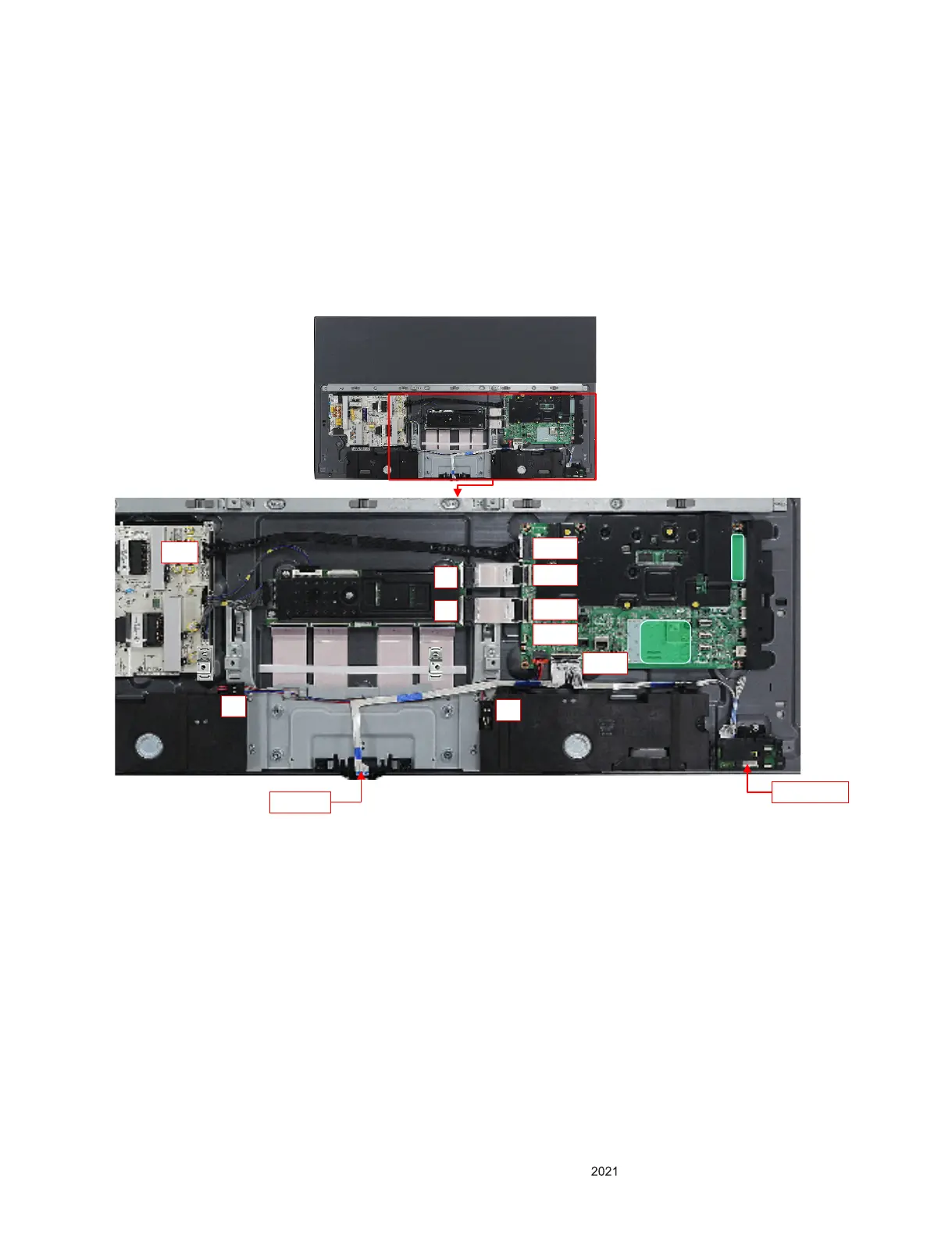

(10) Insert the HARNESS
1) MAIN PCB P7602 → MODULE “A”
2) MAIN PCB P7601 → MODULE “B”
3) MAIN PCB P7603 → POWER P201
4) IR/WIFI ASSY → MAIN PCB P4000
5) MAIN PCB P5901 → SPEAKER “C”
→ SPEAKER “D”
[Key Control Point]
* Insert Harness into the WAFER until Connect sound is occurred.
* Be careful a particle in FFC Pin.
“A”
“B”
P7603
P7601
P201
P4000
P5901
“C”
“D”
IR ASSY
WIFI ASSY
P7602
