(13) Assemble/Fix the REAR COVER + MODULE

[Self/Successive Check]

1.[Visual Check] Check the REAR COVER's Appearance Status whether there is a contraction, a Whitening or a Scratch,,, etc.

2.[Visual Check] Check that there are dropped screw /foreign material in system before the REAR COVER.

3.[Visual Check] Check that Harness is Connected closely.

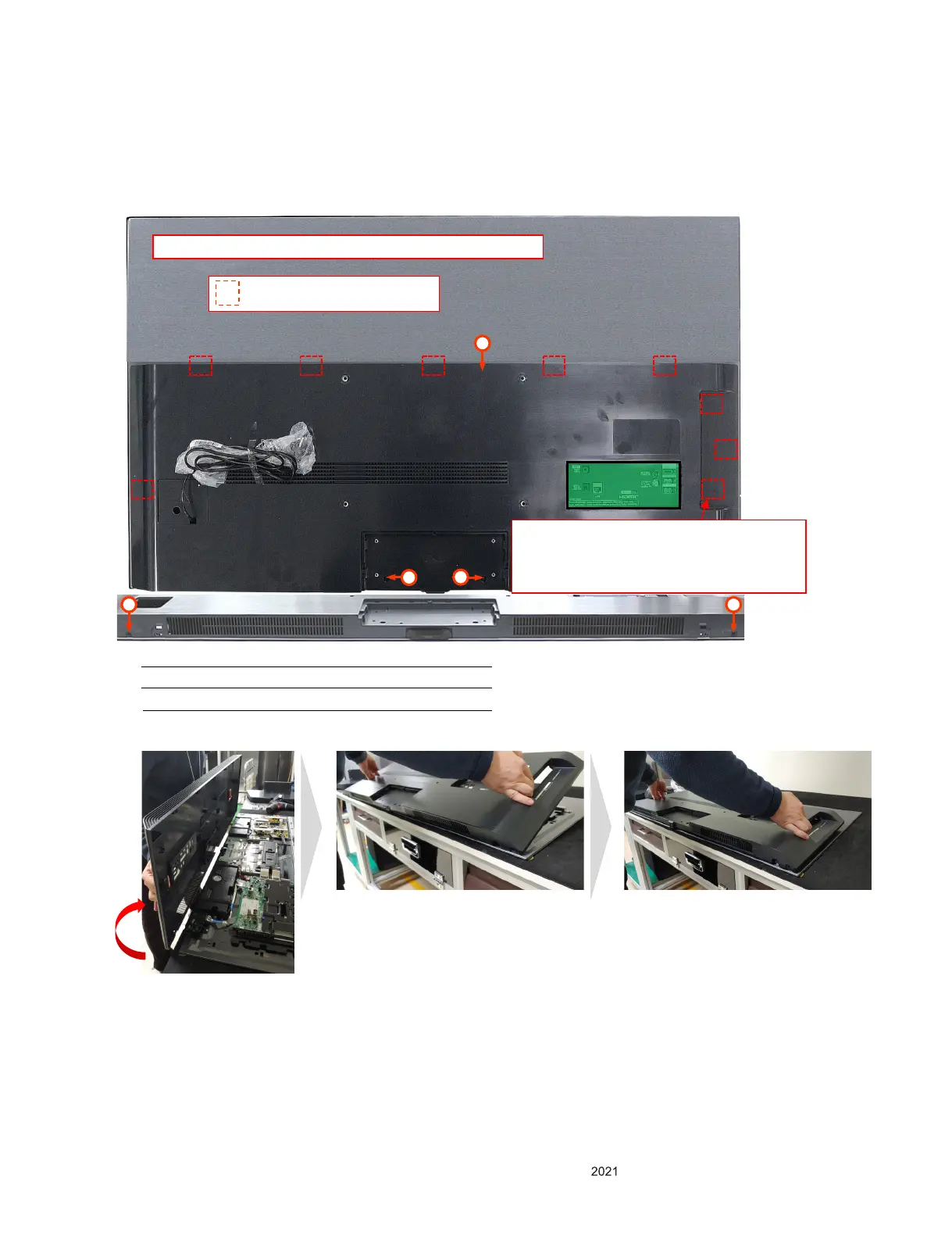

Assemble from the Bottom

Of the Rear Cover

2 2

Check the gap Module to B/C after assembly

Push the LATCH

Check Assembly Condition (If There is uneven

step, It is supposed to be Assembly error,

check Latch again) Side AV Bracket and B/C

after assembly.

COVER ASSEMBLY,REAR

SCREW,MACHINE

BRH + 3M 5.5M SWCH10A FZB N -

OLED48CX . 48\” CX COVER ASSEM

Description Qty

①

②

Specification
