Standard Repair Process Detail T
echnical Manual
connection diagram
A
.
V
ideo error _V
ertical/Horizontal bar
,
residual image, light
spot
A
s

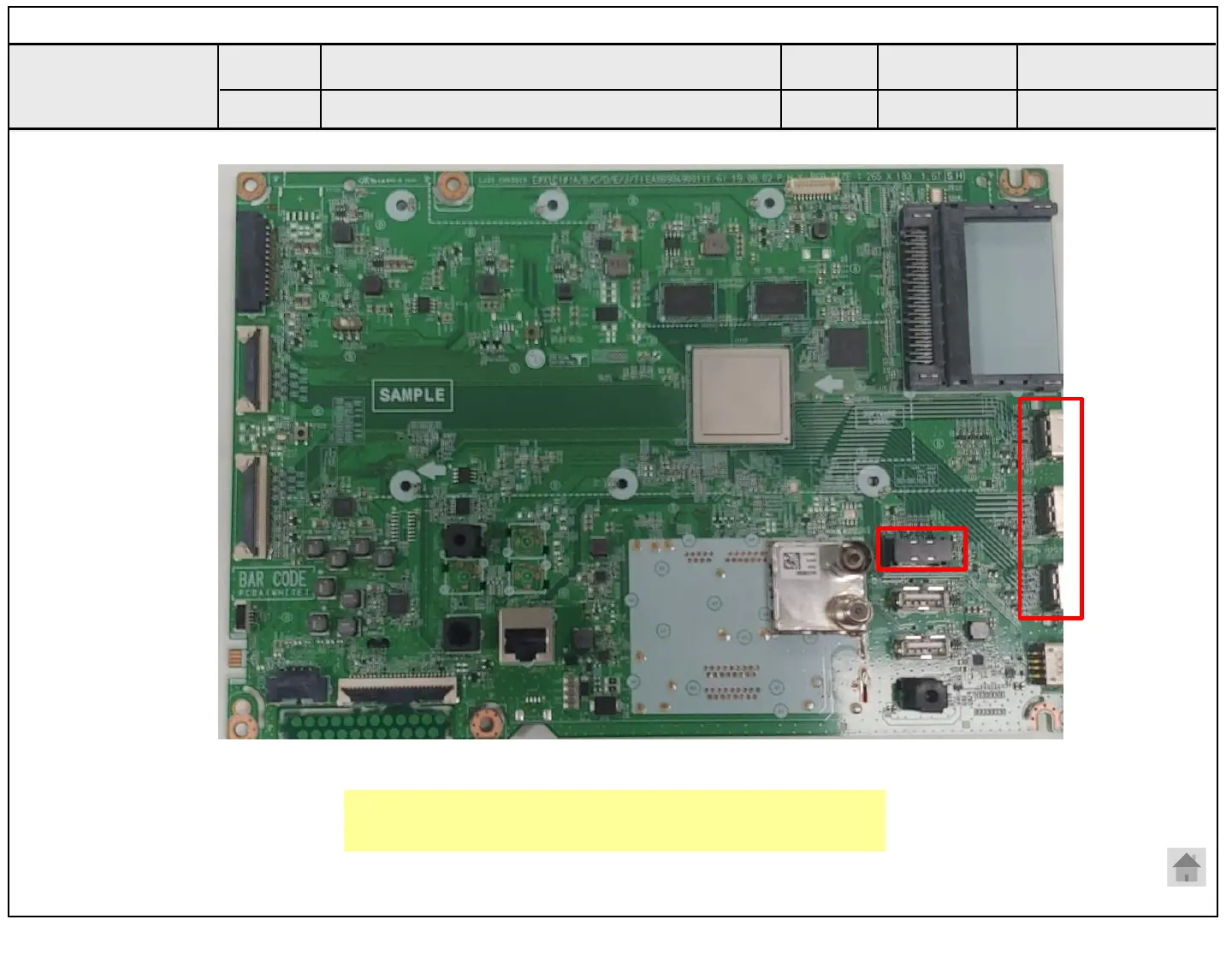

the part connecting to the externa
l
input,
check
the screen condition by
signal
A6
Established
date
Revised
date
Error
symptom
Content
A6
Copyright © 2021 LG Electronics. Inc. All rights reserved.
Only for training and service purposes.
53
55
Table of Contents
Safety Precautions
3
Important Safety Notice
3
General Guidance
3
Servicing Precautions
4
Application Range
6
Test Method
6
Usb Download
10
Block Diagram
12
Exploded View
13
Chassis Assembly
22
Troubleshooting Guide
29
Power Error
36
Function Error
41
Checking Method
70
Time Shift
76
