(11) Arrange the harness.
(12) When Attach the tape for fixing Harness at Module, Rub the tape 2~3 times for adhering totally.

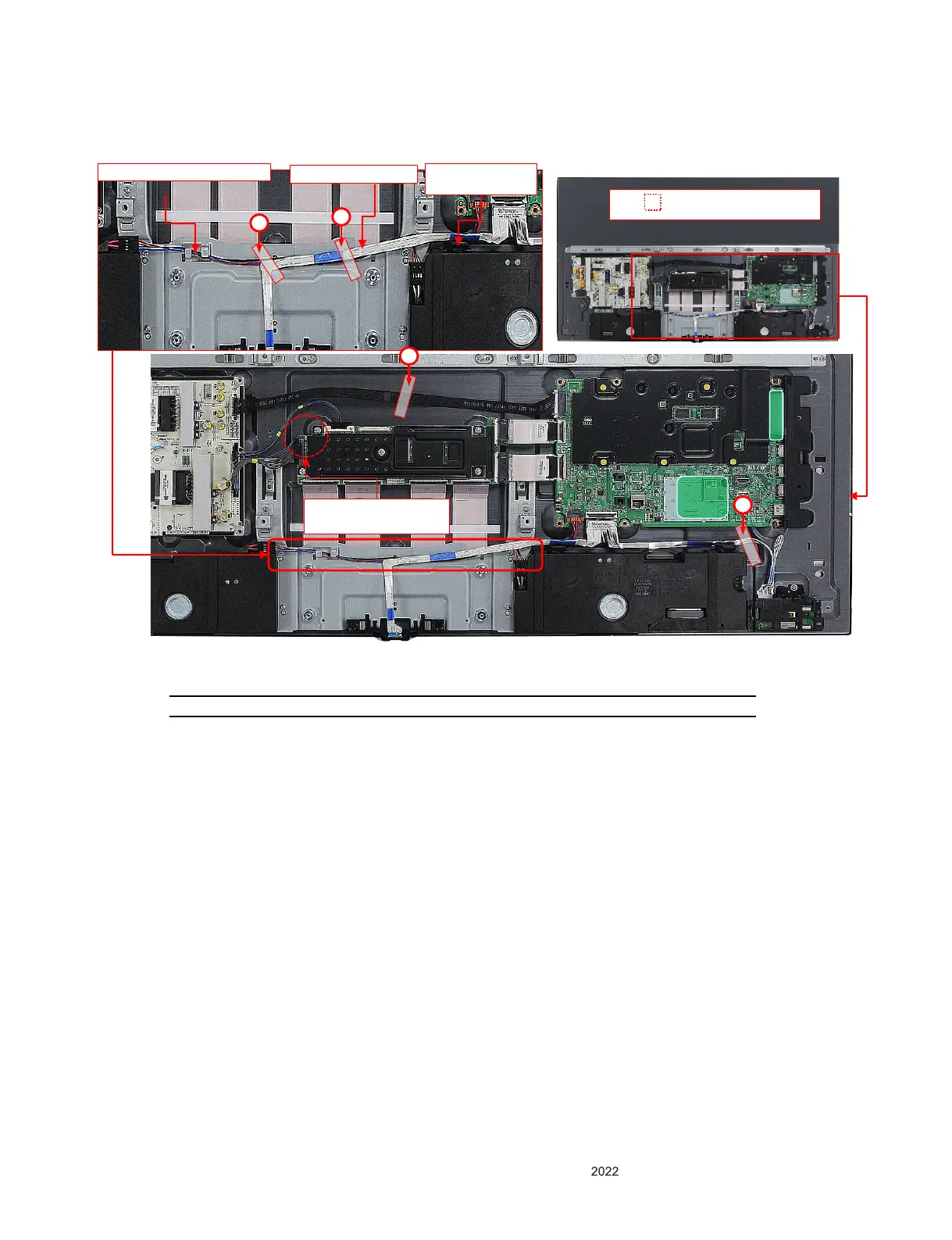

※ “ ” Arrange the harness lead as
shown in the figure.
Don't hang IR FFC
CABLE.
Don't hang on the latch.
Be careful not positioned
on the PCB.
Insert the speaker harness
1
1
1
1
TAPE,POLYESTER POLYESTER 100% FR(FIRE RESISTA
No
Description Qty
①
4
Specification
To Next Page
