(13) Assemble/Fix the REAR COVER + MODULE
[Self/Successive Check]
1.[Visual Check] Check the REAR COVER's Appearance Status whether there is a contraction, a Whitening or a Scratch,,, etc.
2.[Visual Check] Check that there are dropped screw /foreign material in system before the REAR COVER.
3.[Visual Check] Check that Harness is Connected closely.

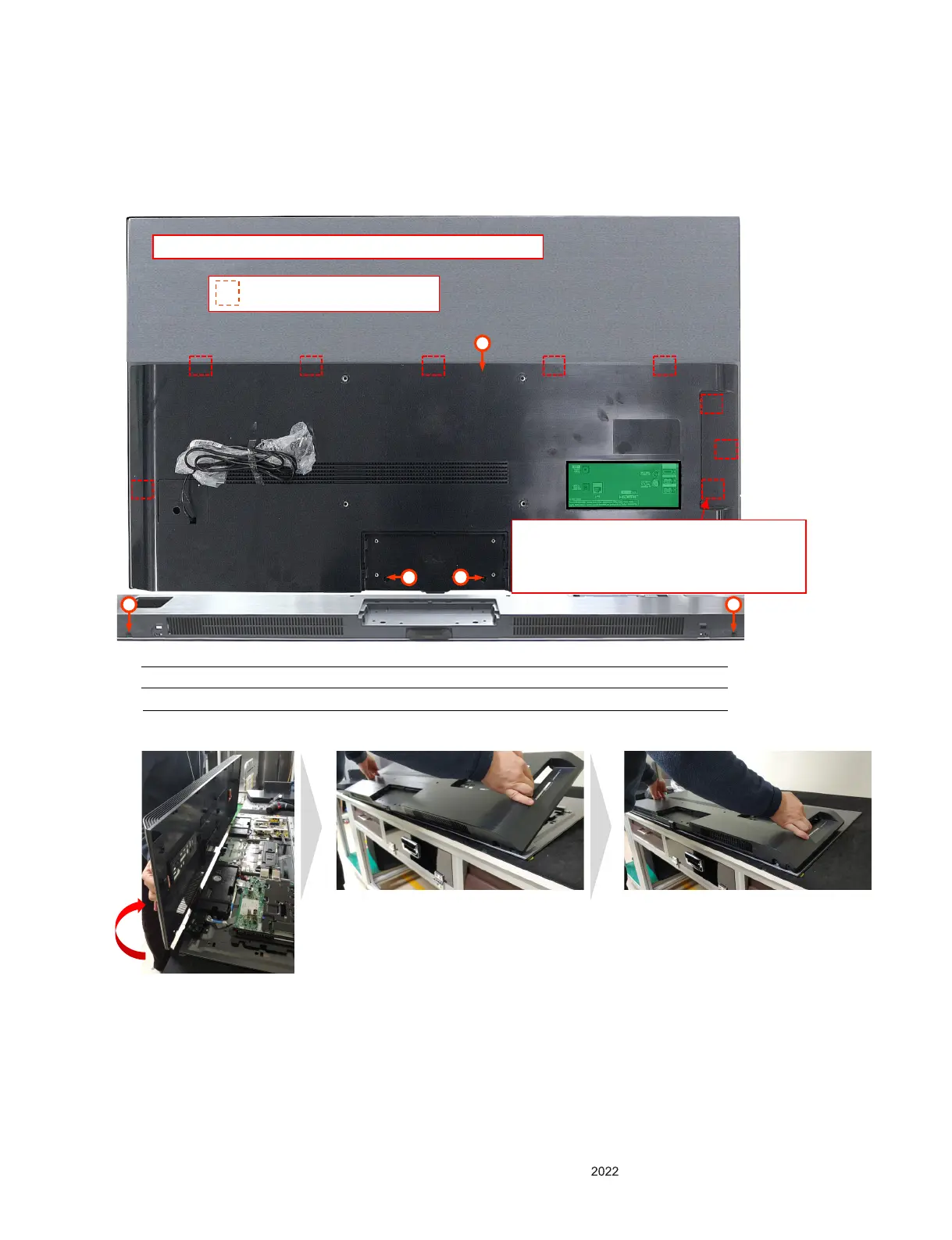

Assemble from the Bottom
Of the Rear Cover
2
2
2 2
Check the gap Module to B/C after assembly
Push the LATCH
1
Check Assembly Condition (If There is uneven
step, It is supposed to be Assembly error,
check Latch again) Side AV Bracket and B/C
after assembly.
COVER ASSEMBLY,REAR
SCREW,MACHINE
BRH + 3M 5.5M SWCH10A FZB N -
OLED48CX . 48\” CX COVER ASSEM
No
Description Qty
①
②
1
4
Specification
To Next Page
