EXTERNAL CONTROL DEVICE SETUP
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC
)
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2

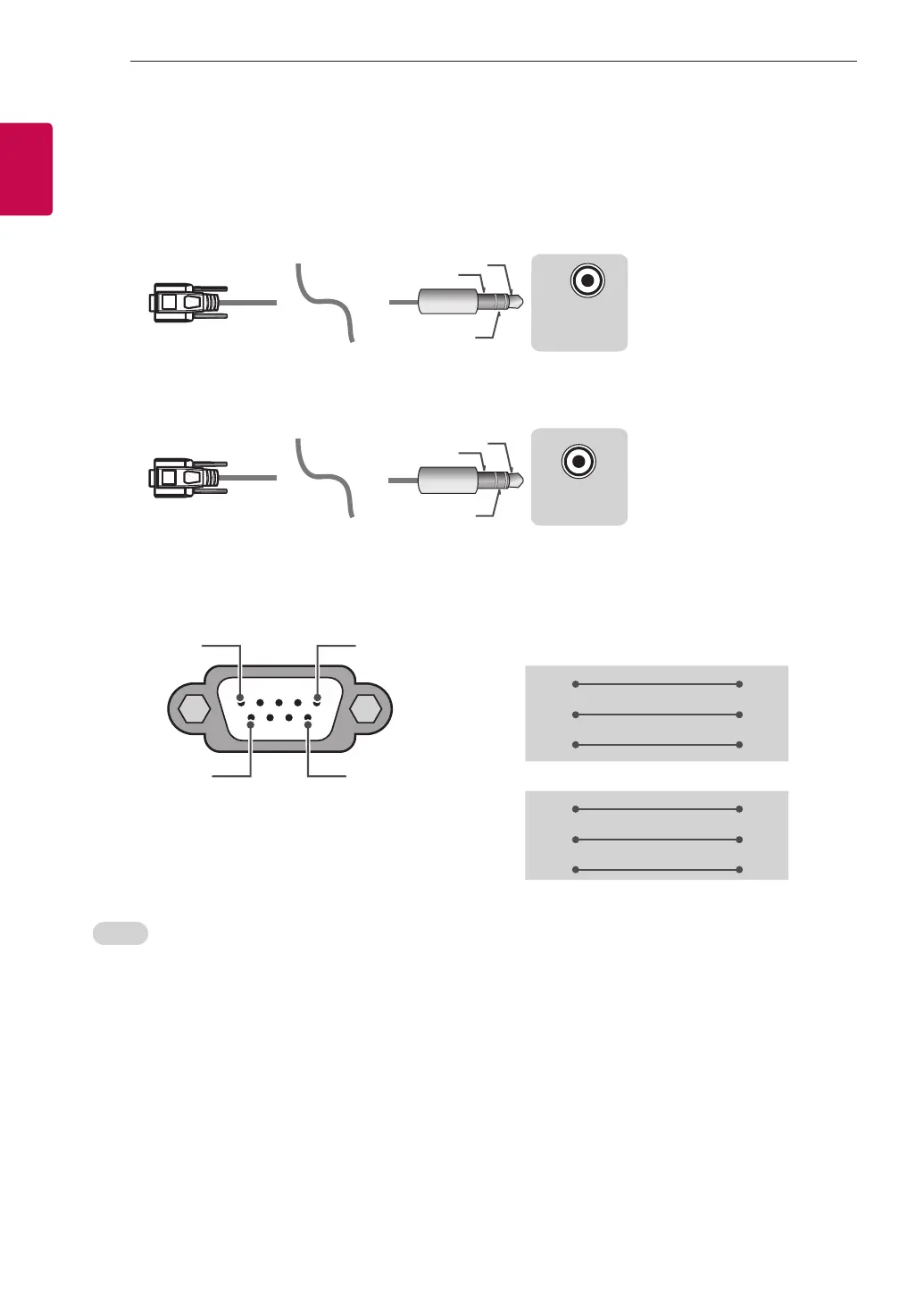

Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)

LG OLED48CXPUB Specifications

General

Screen Type	oled
Color	black
Wall Mount	300mm x 200mm
Features	hdr dynamic tone mapping pro, advanced contrast enhancer, face enhancing, ultra luminance pro, quad step noise reduction, billion rich colors
Tuner	digital
Screen Size	48.2 inches, 48 inches
Resolution	4k (2160p)
Refresh Rate	120hz
Closed Captioning	yes
HDR	yes
HDR Format	dolby vision, hdr 10, hybrid log-gamma (hlg)
Built-In Speakers	true, front firing
Surround Sound	dts-hd, dolby atmos, oled surround
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	4
HDMI ARC Ports	yes
USB Ports	3
USB 2.0 Ports	3
Ethernet	yes
RF Antenna	yes
Bluetooth	true, 5.0
Network	built-in wi-fi, ethernet
Headphones Output	yes
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
VGA Ports	0
SmartTV	webos
Streaming Services	apple tv+, paramount+, crackle, disney+, fandango, google play movies & tv, hulu, netflix, pandora, peacock, prime video, redbox, showtime, sirius, starz, sling tv, spotify, twitch, vudu, youtube, youtube tv, iheartradio
Smart Applications	amazon alexa, apple homekit, google assistant
Other Devices Connection	mobile to tv
Voice Assistant	amazon alexa, google assistant
Remote Control	magic
3D	no
Power Consumption	171 kilowatt hours
Depth with Stand	9.9 inches
Height with Stand	25.6 inches
Width with Stand	42.2 inches
Net Weight with Stand	41.7 pounds
Depth without Stand	1.8 inches
Height without Stand	24.3 inches
Net Weight without Stand	32.8 pounds
