Normal
audio
Y
N
Move to No
video/No audio
No video
Normal audio
Check Vx1 lock
voltage
0V
Y
N
Check Power
Board (Main)
20V, 12V etc.
Normal
voltage
Y
N
Replace Main Board
Repair Power
Board or parts
Check Power Board (Module) 24V output
Normal
voltage
Y
Replace module
N
Repair Power
Board or parts
End
Always check & record S/W Version and White
Balance value before replacing the Main Board
Replace Main Board
Re-enter White Balance value
Precaution
Established
date

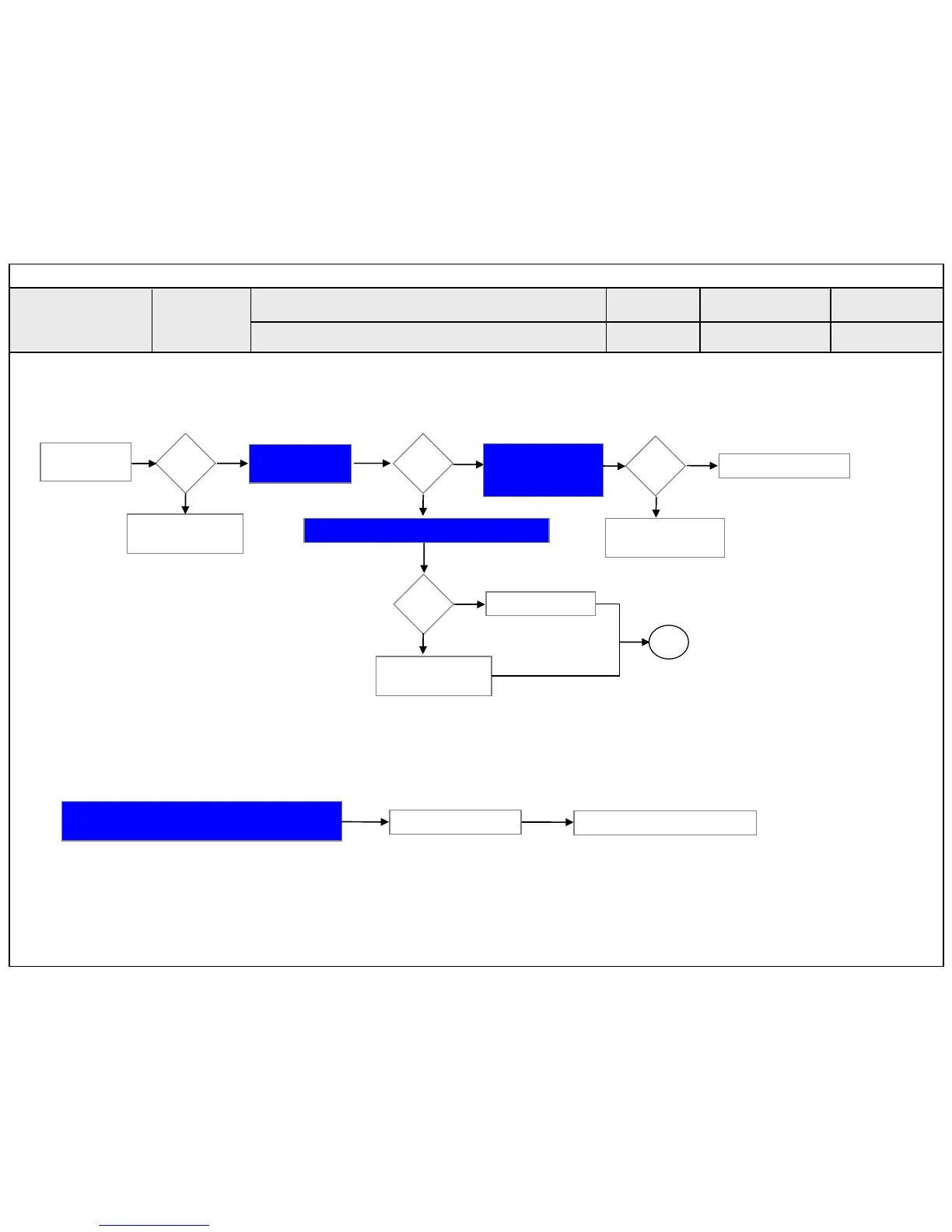

Standard Repair Process
Revised date
1/15
Error
symptom
A. Video error
No video/ Normal audio
A9
A9
A4 & A2
First of all, Check whether all of cables between board is inserted properly or not.
(Main B/DPower B/D, Vx1 Cable, Speaker Cable, IR B/D Cable,,,)
1
A1
