DISASSEMBLY GUIDE / ASSEMBLY GUIDE

Total Screw No. : 27 EA

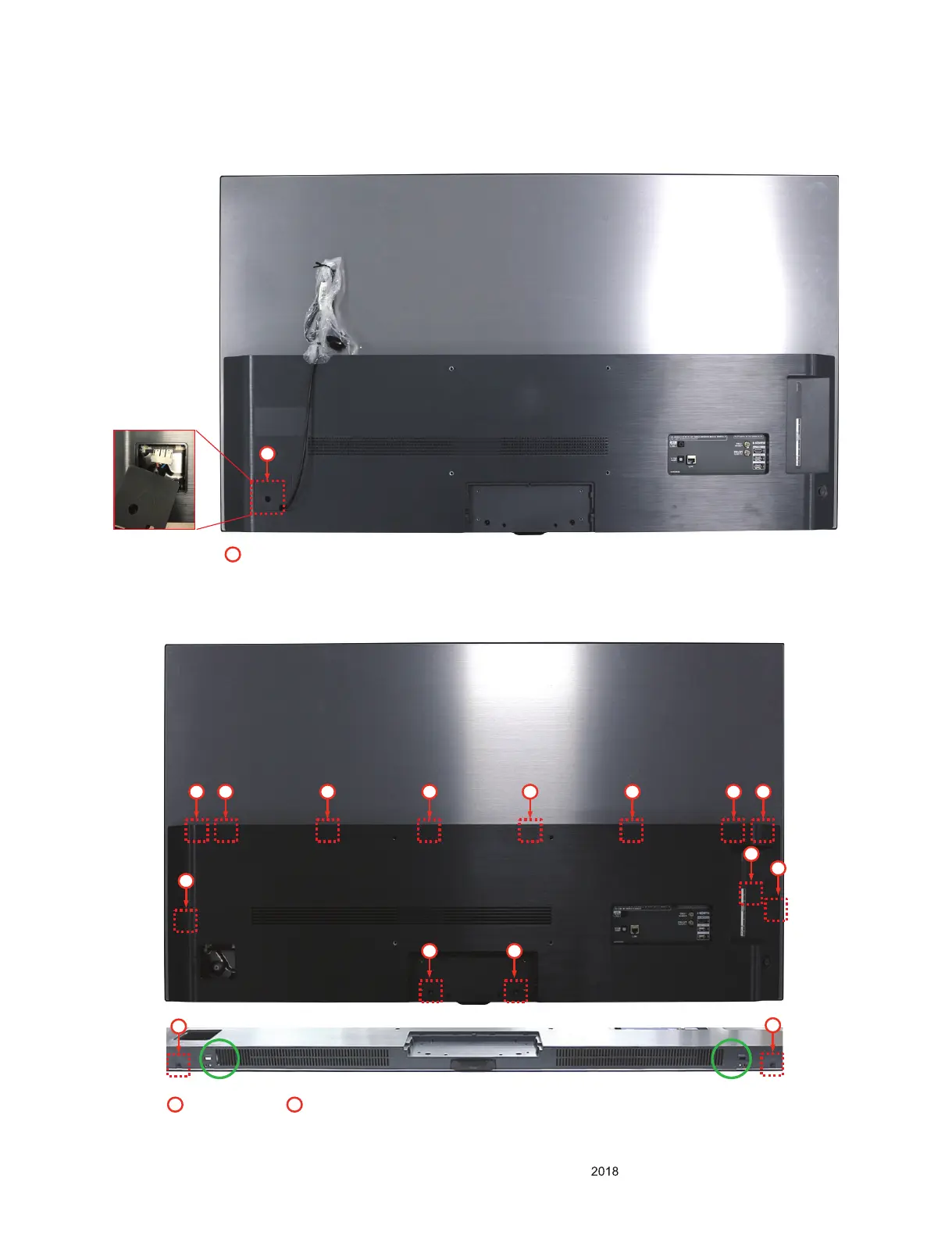

1. Remove screw 1 EA, disassemble power cord from back cover.

2. Remove screw 4 EA, disassemble back cover from module.

* Put hand on the marked area(O), separate the back cover to the top.

1 1

2 2 2 2 2 2 2 2

Screw : 4 EA, Latch : 11 EA

1 2

Screw : 1 EA
