LG OLED55B8STB

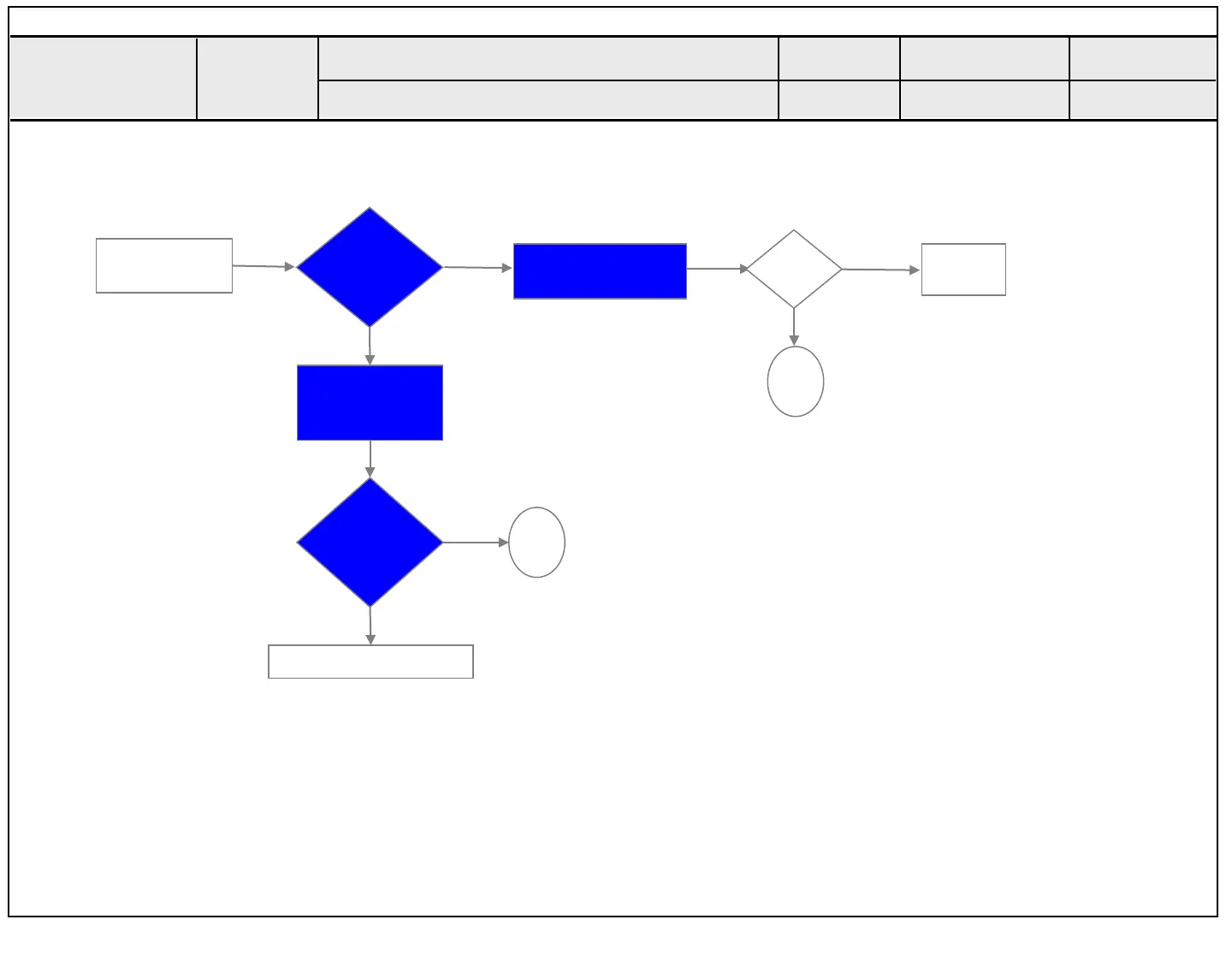

Wi-Fi operating checking
3.Wi-Fi operating error
Check the
Instart menu
Wi-Fi MAC
is “NG”?
Y
Check & Repair
Wi-Fi cable
connection
N
Check the Wi-Fi wafer
19/24 pin
Standard Repair Process
Established
date
Revised date
14/17
Error
symptom
14
Replace the Wi-Fi assy
Normal
Voltage?
Y
Y
N
Replace
Main B/D
Wi-Fi MAC
is “NG”?
N
☞
A16
☞
A4
☞
A4
☞
A16
Close
Close
D. Function error
