Standard Repair Process Detail Technical Manual
Wi-Fi / Motion Remote operation checking method
D. Function error
A16
Established
date
Revised
date
Error
symptom
Content
A16

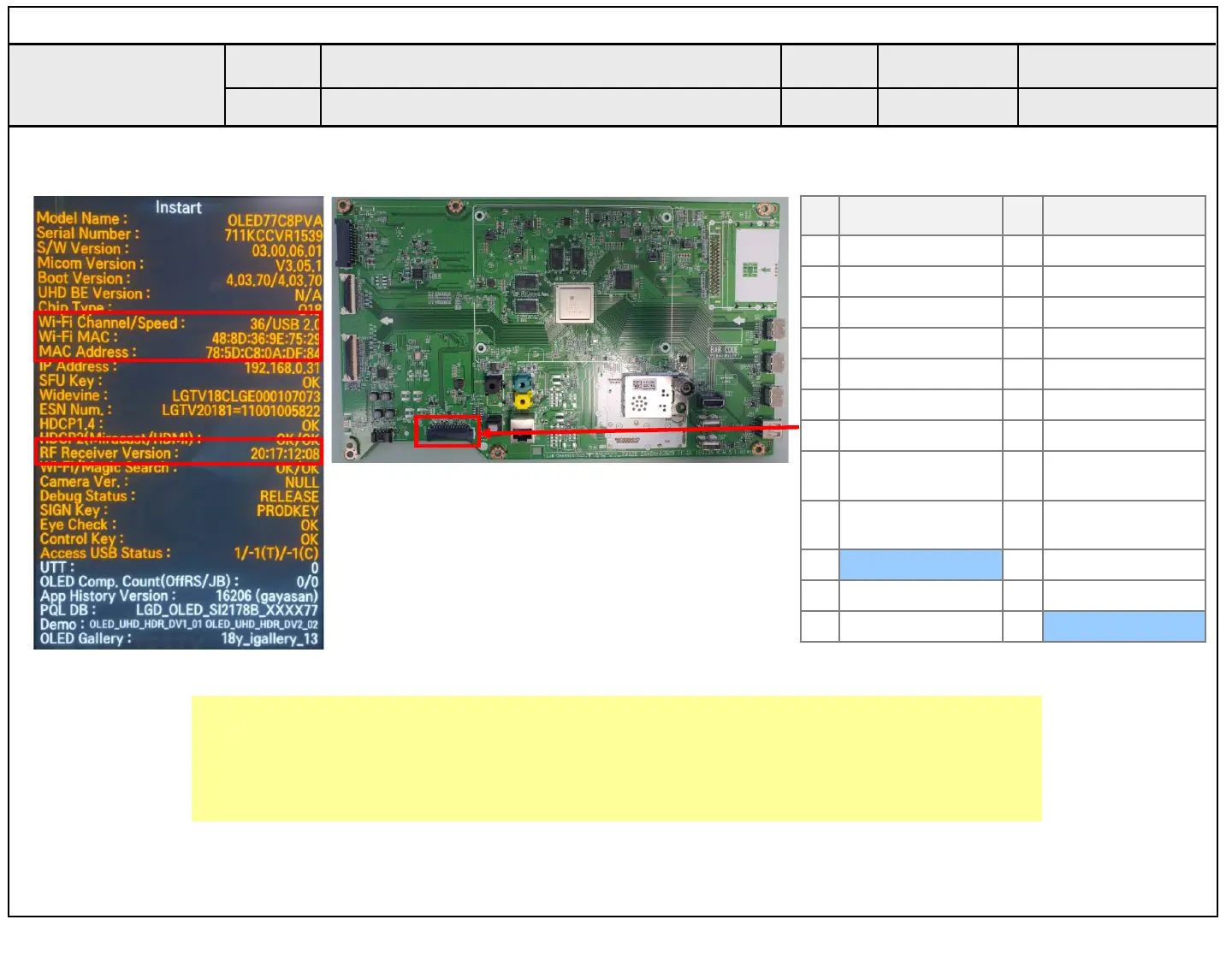

1. Enter into ‘Instart’ menu with press ‘IN START’ button and check the condition of Wi-Fi and BT.
2. Check Wi-Fi/BT cable condition between Wi-Fi/BT ass’y and Main board.
3. Check +3.5V_WIFI on pin 19/24.
No Name No Name
1
LED_R
2
GND
3
IR
4
+3.5V_ST
5
GND
6
GND
7
EYE_SCL
8
KEY2
9
EYE_SDA
10
KEY1
11
NC
12
NC
13
GND
14
GND
15
BT_WAKEUP_
DEVICE
16
BT_WAKEUP_
HOST
17
WOL/WIFI_
POWER_ON
18
GND
19
+3.5V_WIFI
20
WIFI_DP
21
COMBO_RESET
22
WIFI_DM
23
GND
24
+3.5V_WIFI
Copyright © 2018 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
