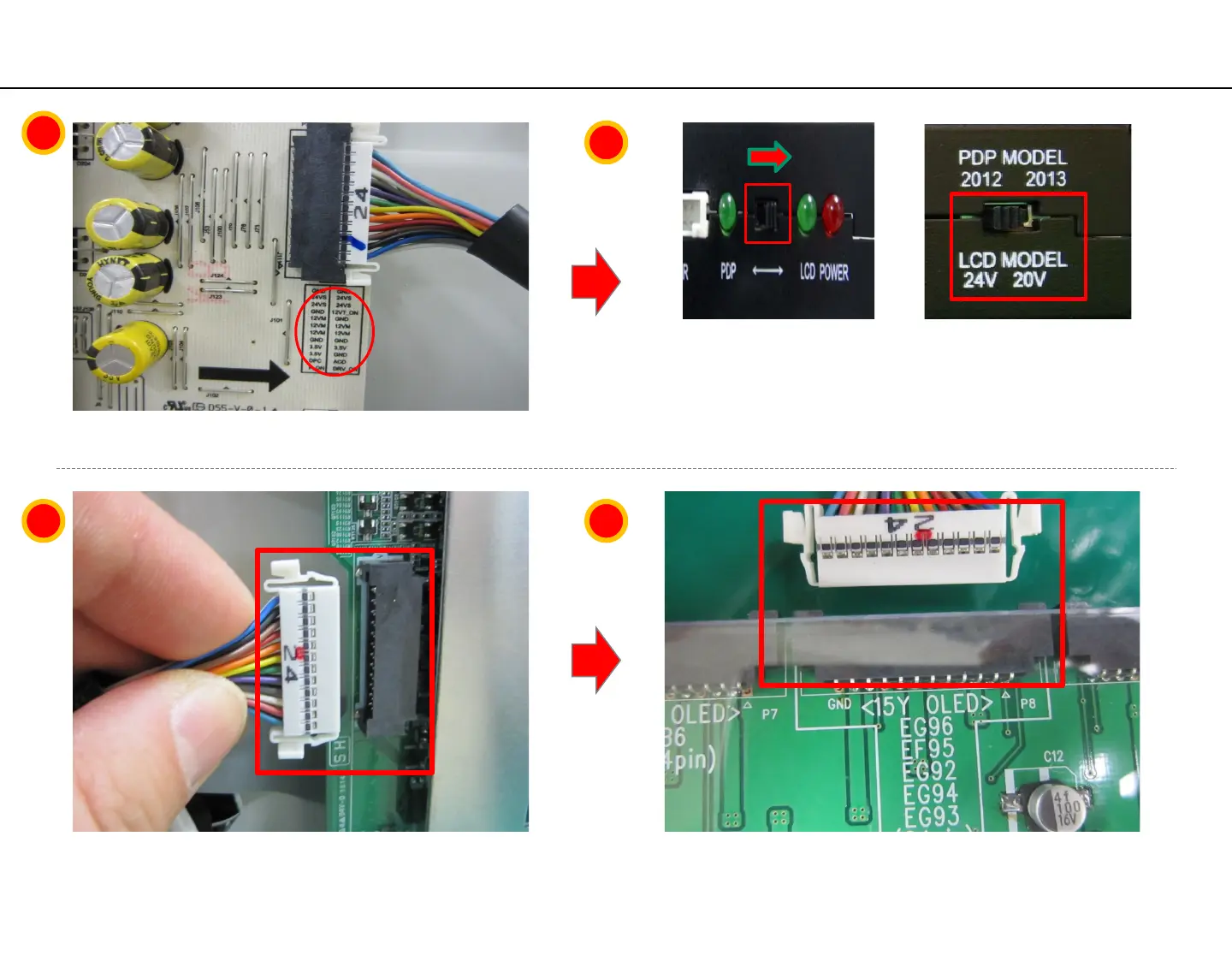

`15Y OLED(EG96,EF95,EG92,EG93,EG94) Power Board Diagnostic method (1)
▶ Disconnect the Main Board 24Pin Power Cable connector.
▶ Connect the 24Pin Power Cable connector to the Muitl
Gender JIG 24Pin connector
▶ Check power board voltage.
▶ Switch the product S/W in JIG to LCD.
▶ LCD MODEL Check the power voltage
and switch(24V) to the correct voltage.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
