`16Y/`17Y LED(UH85/UH93) Power Board Diagnostic method

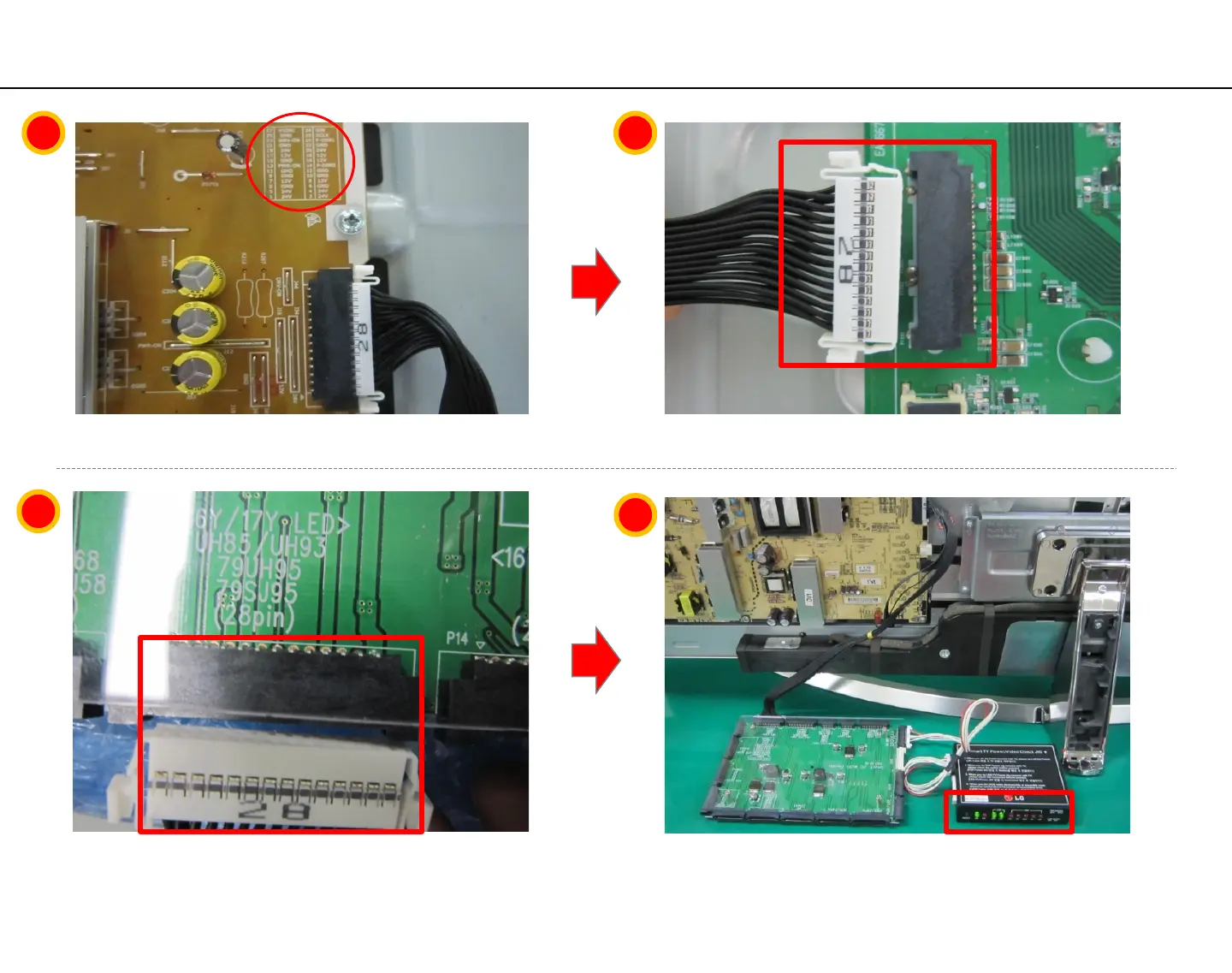

▶ Check power board voltage.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
▶ Disconnect the Main Board 28Pin Power Cable connector.
▶ Connect the 28Pin Power Cable connector
to the Muitl Gender JIG 28Pin connector
▶ When the OK LED(24V,12V) turns on, Power Board is normal.
▶ When the NG LED turns on, the Power Board
can be judged as defective.
A21 (16/19)
Copyright © 2018 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
