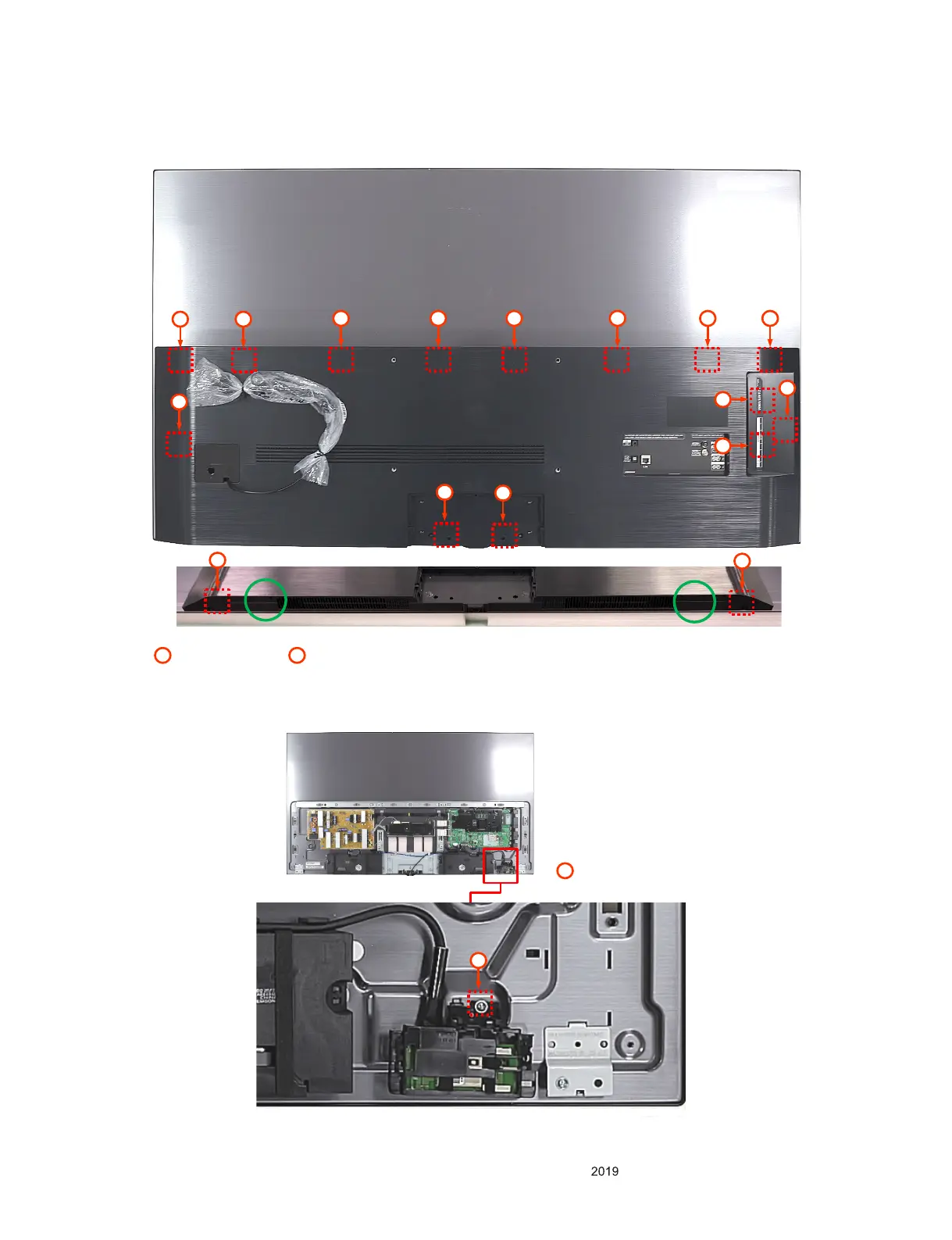

4. Remove screw 4 EA, disassemble back cover from module.
* Put hand on the marked area( O ), separate the back cover to the top.
5. Remove screw 1 EA, disassemble Wifi/Jog assy.
1
1
1
1
2
2 2
2 2 2 2
2
2
Screw : 4 EA, Latch : 12 EA
1 2
2
22
1
Screw : 1 EA
1
To Next Page
