`16Y OLED(C6) Power Board Diagnostic method
4
1
3
2

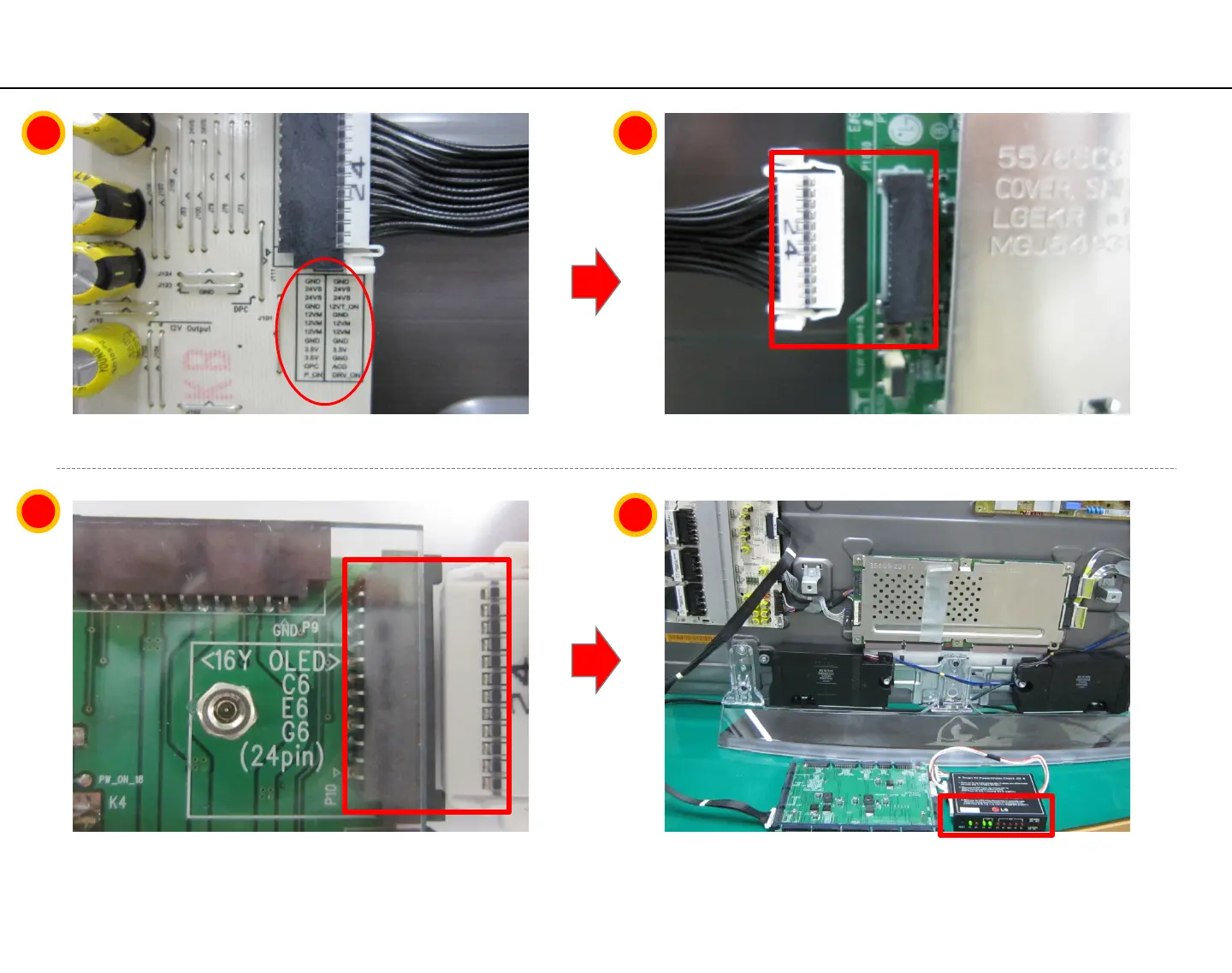

▶ Check power board voltage.
▶ Smart JIG: Fix the LCD MODEL switch to 24V.(Smart JIG)
▶ Disconnect the Main Board 24Pin Power Cable connector.
▶ Connect the 24Pin Power Cable connector
to the Muitl Gender JIG 24Pin connector
▶ When the OK LED(24V,12V) turns on, Power Board is normal.
