LG OLED55B9PUA User Manual

- 16 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.
USB1(SIDE)
USB2.0_1_DM0
USB2.0_1_DP0
USB2(SIDE)
IC1600
SYVL86A
5V / 6A
+5V_USB_1 +5V_USB_2
/USB_OCD2
USB_CTL2
USB_CTL2 /USB_OCD2
WIFI_DM
WIFI_DP
USB2_2_DM0 USB2_2_DP0
RENESAS MICOM(IC3000)
UART0_TXD/GPIO105
UART0_RXD/GPIO106
SOC_TX
SOC_RX
IC7200
MAX3232CDR
USB2.0
WIFI Combo
BT_RESET BT_WAKEUP_DEVICE BT_WAKEUP_HOST
OCP
IC4700
BD2242G
OCP
IC4501
BD2242G
+5V_NORMAL
+5V_NORMAL
JK4400
JK4200
USB2.0
Main IC
USB2.0_2_DM1
USB2.0_2_DP1
OCP
IC4700
BD2242G
+5V_NORMAL
USB3(Rear)
+5V_USB_3
USB_CTL2 /USB_OCD2
JK4600
USB2.0_3_DM0
USB2.0_3_DP0
USB2.0

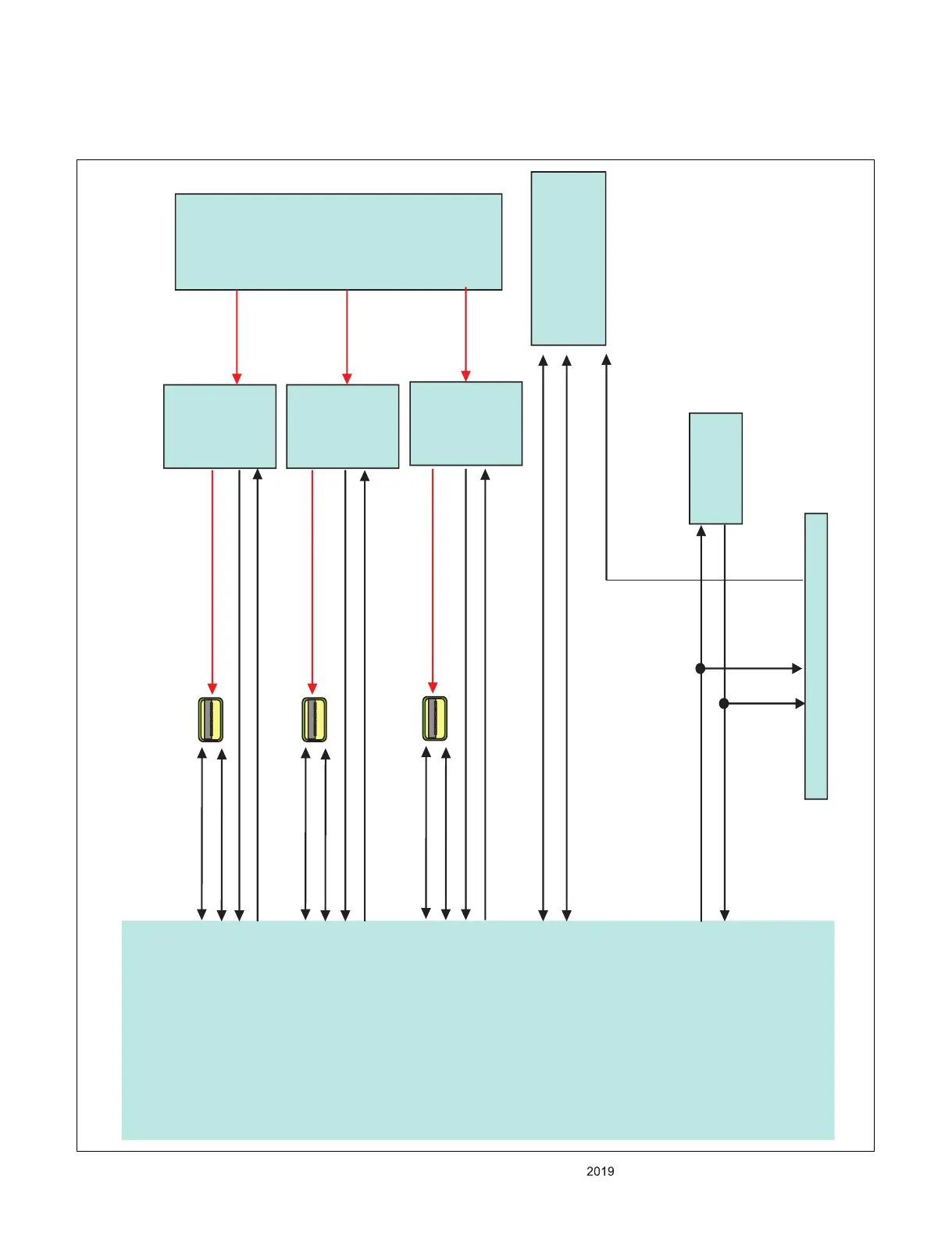

7. USB / Wi-Fi / M-Remote / UART

LG OLED55B9PUA Specifications

General

Screen Type	oled
Wall Mount	300mm x 200mm
Features	4k upscaling, true color accuracy, infinite contrast, perfect black, billion rich colours
Tuner	digital
Screen Size	54.6 inches, 55 inches
Resolution	4k (2160p)
Refresh Rate	120hz
Closed Captioning	yes
HDR	yes
HDR Format	dolby vision, hdr 10, hybrid log-gamma (hlg)
Built-In Speakers	true, front firing
Surround Sound	dts-hd, dolby atmos
Speakers Output	40 watts
HDMI ARC Ports	yes
USB Ports	3
USB 2.0 Ports	3
Ethernet	yes
RF Antenna	yes
Bluetooth	true, 5.0
Network	built-in wi-fi, ethernet
Headphones Output	yes
Digital Optical Audio Outputs	1
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Smart Applications	amazon alexa, apple homekit, google assistant
Voice Assistant	amazon alexa, google assistant
Remote Control	magic
3D	no
Power Consumption	202 kilowatt hours
Depth with Stand	9.7 inches
Height with Stand	29.2 inches
Width with Stand	48.4 inches
Net Weight with Stand	43.9 pounds
Depth without Stand	1.8 inches
Height without Stand	27.7 inches
Net Weight without Stand	41.7 pounds
