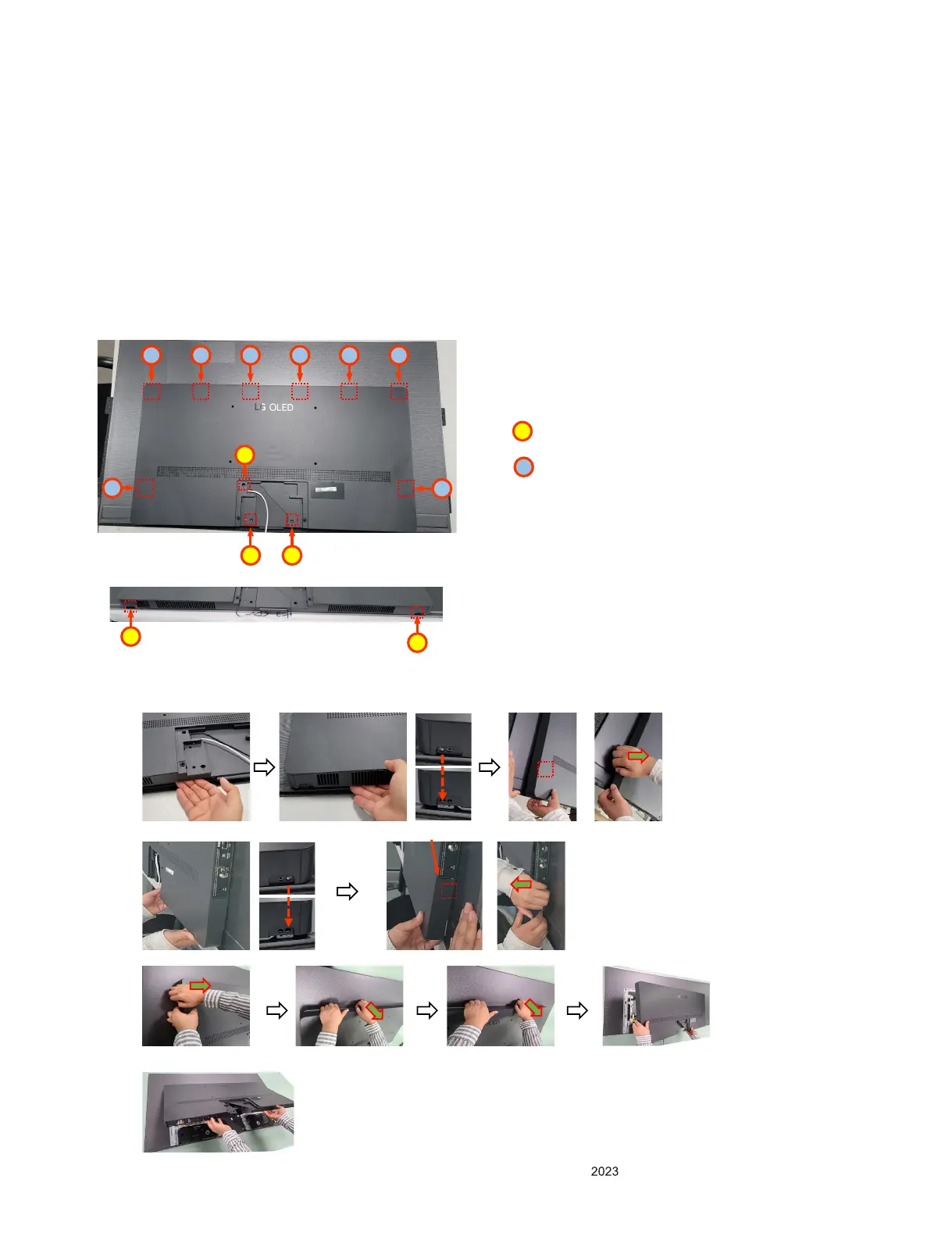

ASSEMBLY / DISASSEMBLY GUIDE

[Back Cover Disassembly Guide]

1. After removing the 5 screws, separate the back cover from the module according to

the guide below.

(1) Put your hand in the side of the IR bracket to release the lower left protrusion, then lift it up and separate the

left side latch

(2) In the same way as in “(1)”, after releasing the fixing of the lower right protrusion, support the Side AV area of

cover rear with your hands and lift it up and separate the right side latch (Caution, Side AV area of Cover

Rear is easily bended when it is separated.)

(3) Remove the back cover by lifting it from the bottom with both hands.

Screw : 5ea

Latch : 8ea

2 222 2 2

①

②

③

④

Holder

Separate

Disassemble a total of 6 holders on the top of back cover one by one from the left.

Caution to bend

Holder
