Standard Repair Process Detail Technical Manual
Revised
date
A1
Error
symptom
Content
Check Vx1 lock /Check BDP Point
A. Video error_No video/Normal audio
A1

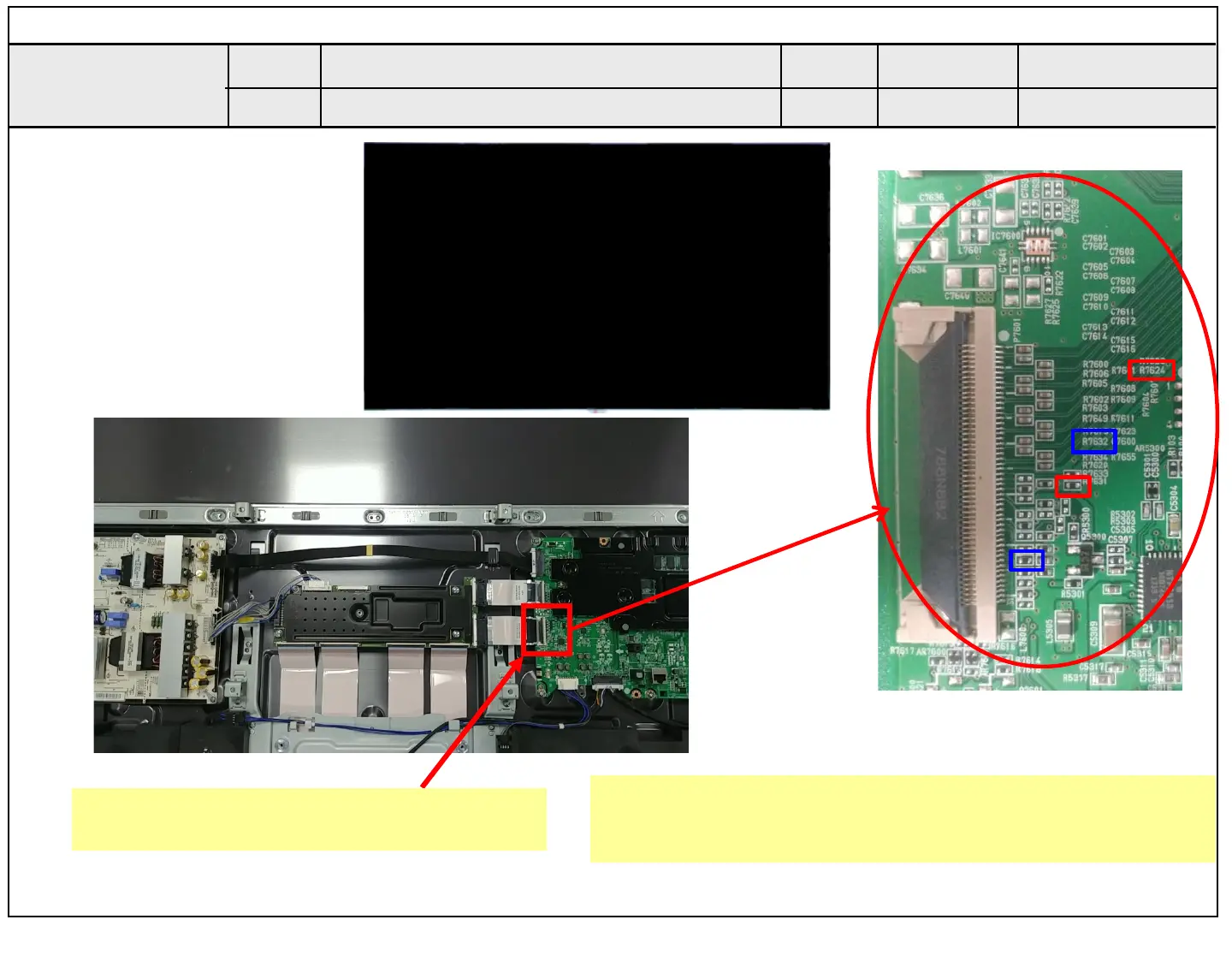

Check a voltage of R7624 after turn on the TV.
If the voltage is low, Vx1 is locked.(OK)
Reference: Burnt Detect Measurement Point
Check the voltage of R7632 (blue) while turning on TV power
Low (0V) : Normal, High (3.3V) : Burnt Detect
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
