LG OLED55C9PTA - Power Board Muitl Gender Connection Guide; 1; 2

1
2

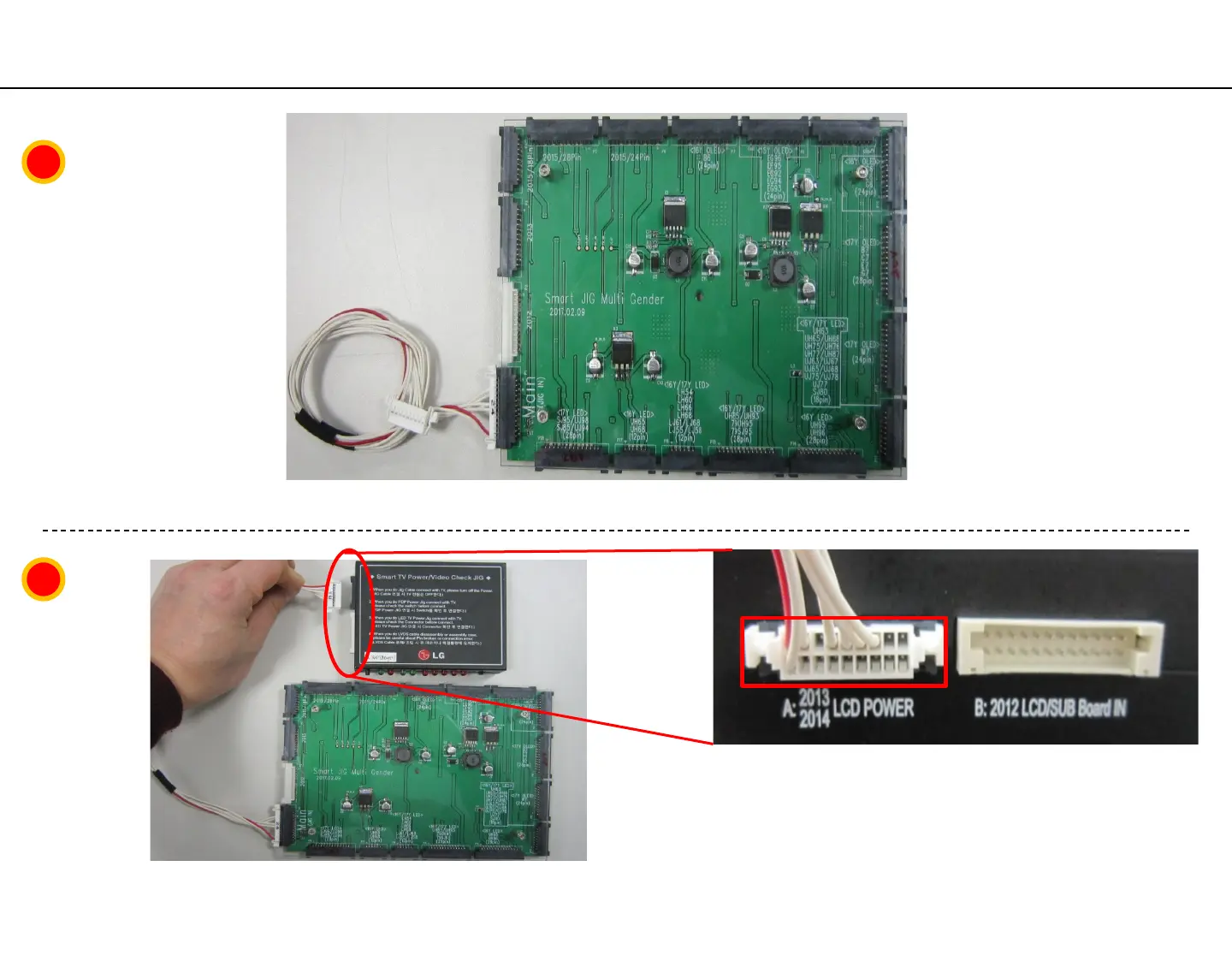

▶ Power Board Muitl Gender JIG
2014
LCD POWER”
“A:
2013
Power Board Muitl Gender How to Connect
▶ Connect the Muiti Gender to the connector (black)
as shown in picture 2 of the Smart JIG.
A21 (4/19)
Copyright © 2019 LG Electronics. Inc. All rights reserved.
Only for training and service purposes
