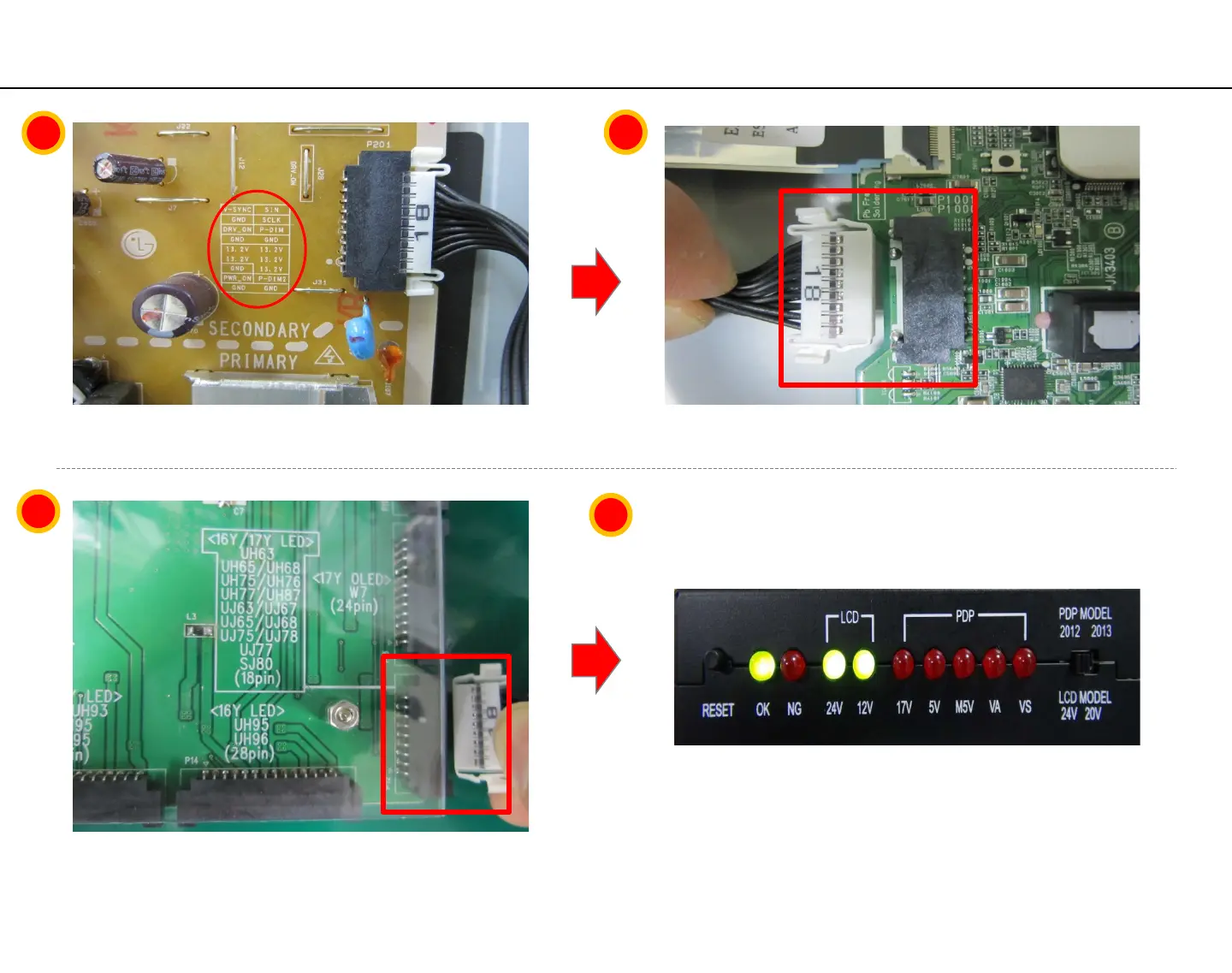

`16Y/`17Y LED 18Pin Power Board Diagnostic method
4
1
3
2
▶ Check power board voltage.
▶ Fix the LCD MODEL switch to 24V.(Smart JIG)
▶ Disconnect the Main Board 18Pin Power Cable connector.
▶ Connect the 18Pin Power Cable connector
to the Muitl Gender JIG 24Pin connector
▶ When the OK LED(24V,12V) turns on, Power Board is normal.
▶ When the NG LED turns on, the Power Board
can be judged as defective.
A21 (14/19)
