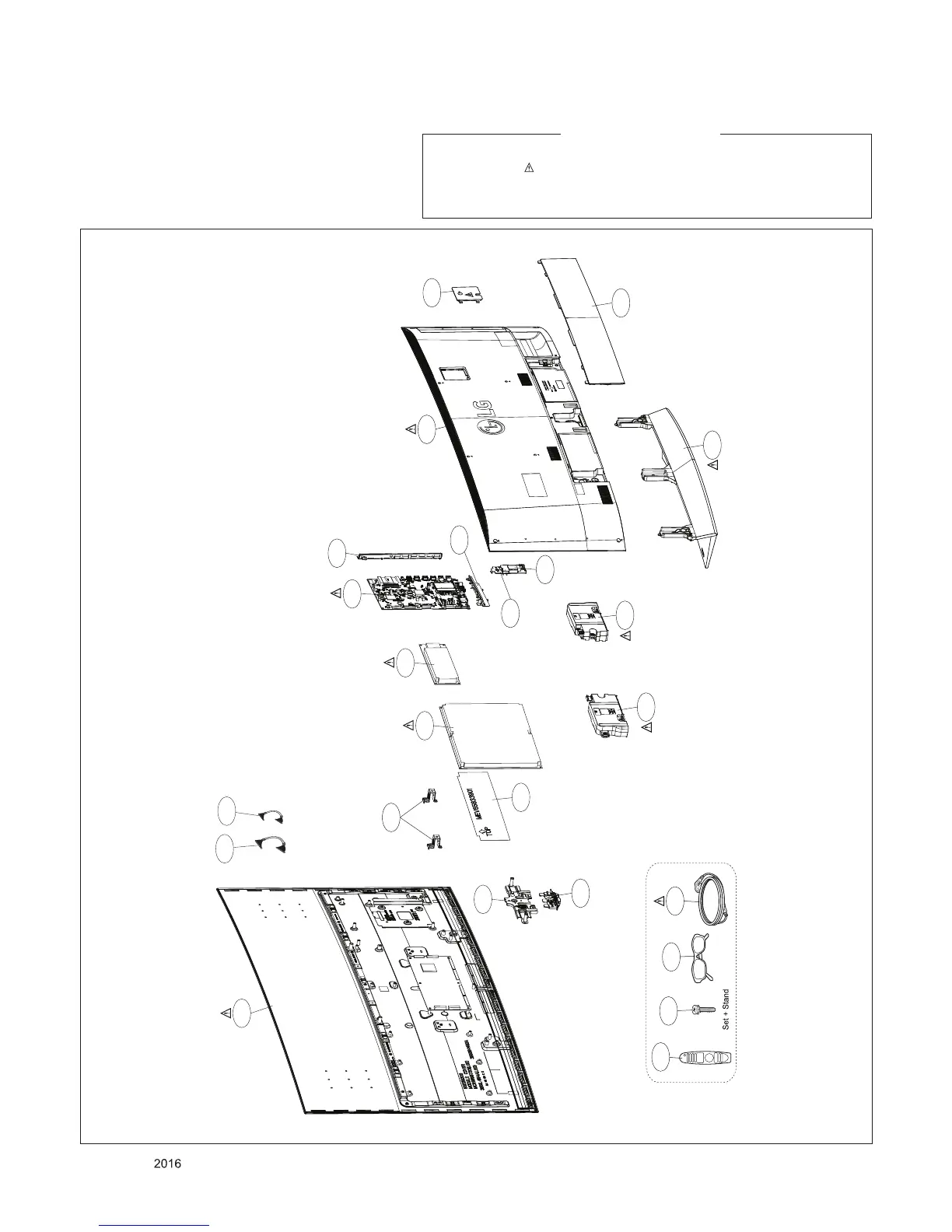

EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
200
400
800
540
521
530
120
121
820
710
700
A10
A22
410
900
500
522
571
570
531
810
AG1
LV1
LV2

LG OLED55E6P Specifications

General

Screen Type	oled
Wall Mount	400mm x 200mm
Features	cinematic color, perfect black panel, ultra luminance
Tuner	digital
Screen Size	54.6 inches, 55 inches
Resolution	4k (2160p)
Refresh Rate	60hz
HDR	yes
HDR Format	dolby vision
Built-In Speakers	yes
Surround Sound	other
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	0
HDMI ARC Ports	yes
USB Ports	3
Ethernet	yes
RF Antenna	yes
Network	built-in wi-fi, ethernet
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	netflix, youtube
Voice Assistant	other
Remote Control	universal
3D	yes
Power Consumption	198 kilowatt hours
Depth with Stand	6.9 inches
Height with Stand	30.2 inches
Width with Stand	48.8 inches
Net Weight with Stand	40.8 pounds
Depth without Stand	2.2 inches
Height without Stand	30.2 inches
Net Weight without Stand	37.7 pounds
