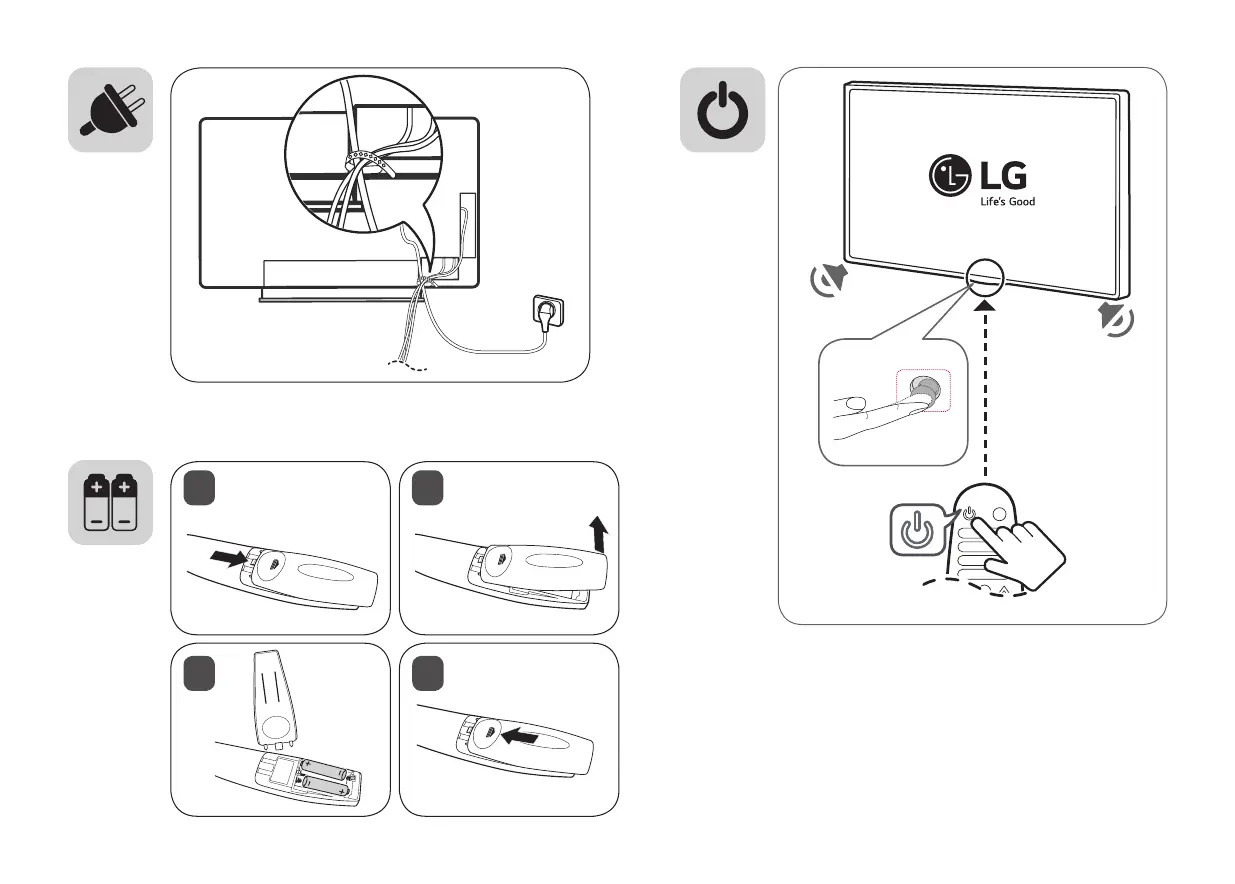

LG OLED55E6P User Manual

THERMAL
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.

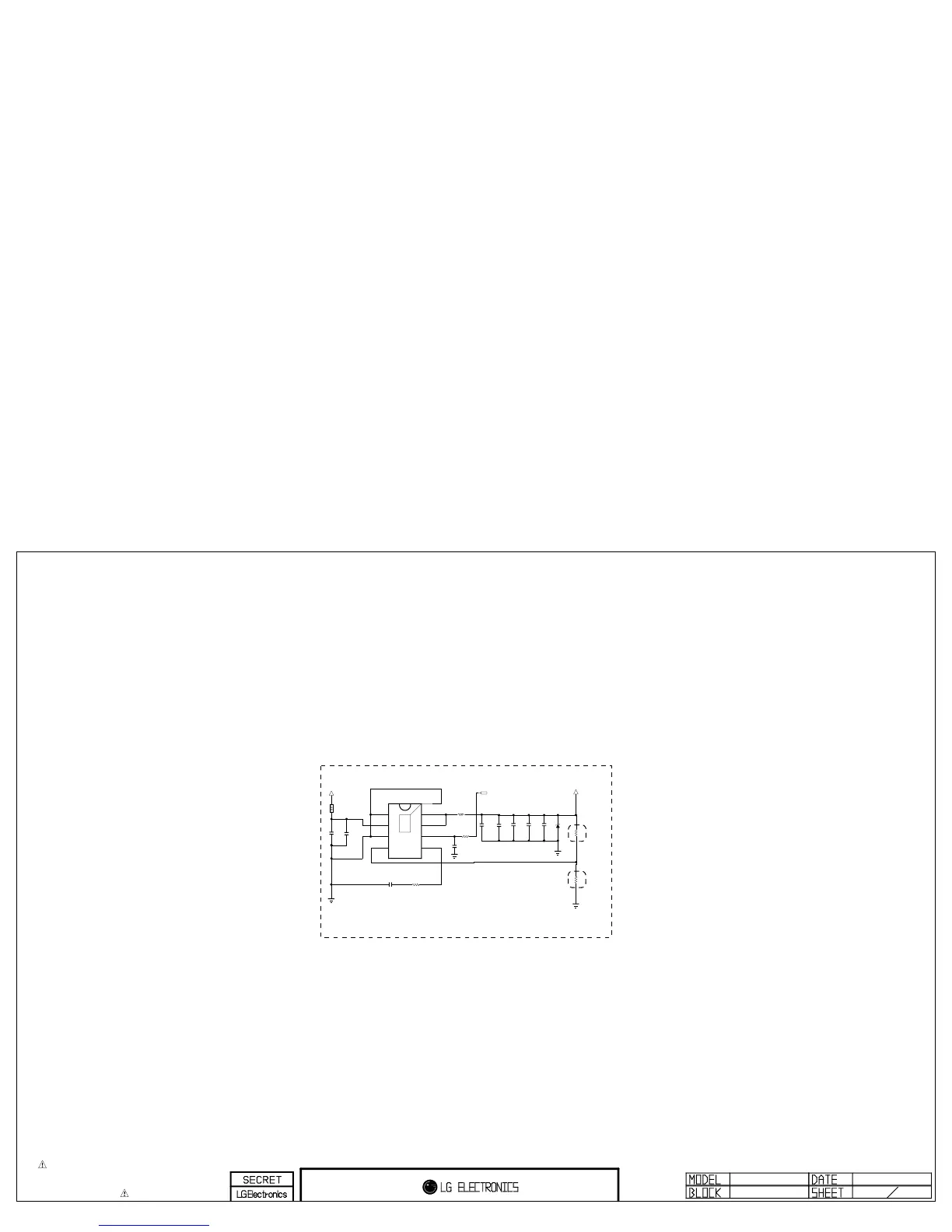

M16 UHD-mid Power
2015.06.03
16
M16
C1606
10uF
10V
C1602
1500pF
50V
R1601
10K
C1600
10uF
25V
+13V
C1605
10uF
10V
L1600
BLM18PG121SN1D
+5V_NORMAL
IC1600
BD86106EFJ
3
AGND
2
VIN
4
FB
1
PGND
5
COMP
6
EN
7
SW_1
8
SW_2
9
[EP]
C1603
0.0068uF
50V
POWER_ON/OFF1
R1600
20K
C1601
0.1uF
50V
C1604
10uF
10V
C1607
10uF
10V
ZD1600
5V
ESD_READY
C1608
10uF
10V
R1603
18K
1%
R1602
3.3K
1%
L1601
4.7uH
100
PAGE 16
R2
6A
R1
Vout=0.8*(1+R1/R2)
Copyright © 2016 LG Electronics Inc. All rights reserved.
Only for training and service purposes
LGE Internal Use Only

LG OLED55E6P Specifications

General

Screen Type	oled
Wall Mount	400mm x 200mm
Features	cinematic color, perfect black panel, ultra luminance
Tuner	digital
Screen Size	54.6 inches, 55 inches
Resolution	4k (2160p)
Refresh Rate	60hz
HDR	yes
HDR Format	dolby vision
Built-In Speakers	yes
Surround Sound	other
Speakers Output	40 watts
HDMI Ports	4
HDMI 2.1 Ports	0
HDMI ARC Ports	yes
USB Ports	3
Ethernet	yes
RF Antenna	yes
Network	built-in wi-fi, ethernet
Digital Optical Audio Outputs	1
Analog Audio Outputs	0
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
SmartTV	webos
Streaming Services	netflix, youtube
Voice Assistant	other
Remote Control	universal
3D	yes
Power Consumption	198 kilowatt hours
Depth with Stand	6.9 inches
Height with Stand	30.2 inches
Width with Stand	48.8 inches
Net Weight with Stand	40.8 pounds
Depth without Stand	2.2 inches
Height without Stand	30.2 inches
Net Weight without Stand	37.7 pounds
